Siegen tools S0825 Instruction Manual

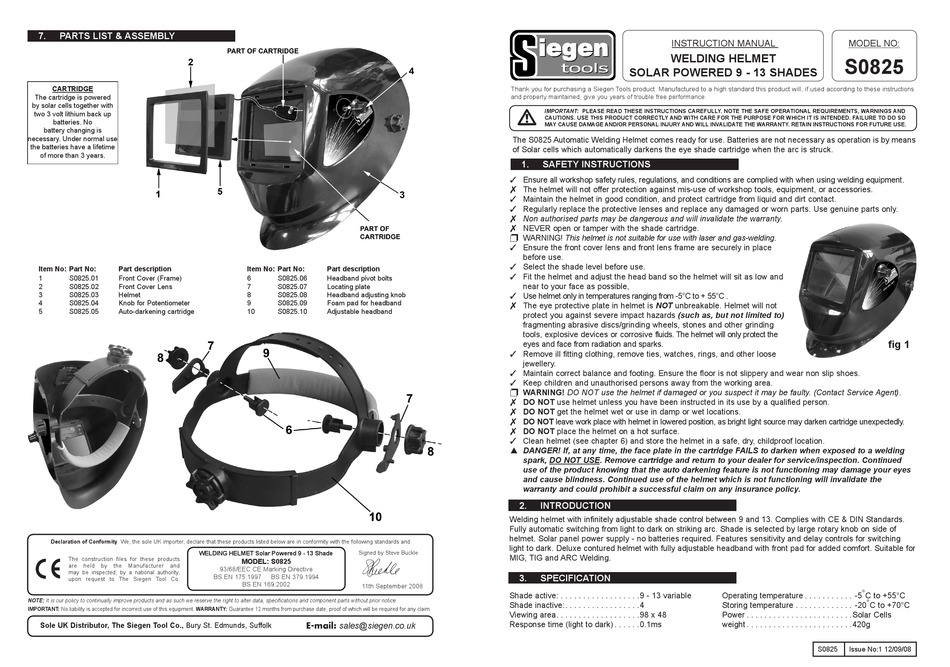

7. PARTS LIST & ASSEMbLY
CARTRIDGE
The cartridge is powered
by solar cells together with
two 3 volt lithium back up
batteries . No
battery changing is
necessary . Under normal use
the batteries have a lifetime
of more than 3 years .
Item No: Part No: Part description
1 S0825 .01 Front Cover (Frame)
2 S0825 .02 Front Cover Lens
3 S0825 .03 Helmet
4 S0825 .04 Knob for Potentiometer
5 S0825 .05 Auto-darkening cartridge
Declaration of Conformity We, the sole UK importer, declare that these products listed below are in conformity with the following standards and
WELDING HELMET Solar Powered 9 - 13 Shade
The construction files for these products
are held by the Manufacturer and
may be inspected, by a national authority,
upon request to The Siegen Tool Co .
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment . WARRANTY: Guarantee 12 months from purchase date, proof of which will be required for any claim .
Sole UK Distributor, The Siegen Tool Co., Bury St . Edmunds, Suffolk
Item No: Part No: Part description
6 S0825 .06 Headband pivot bolts
7 S0825 .07 Locating plate
8 S0825 .08 Headband adjusting knob
9 S0825 .09 Foam pad for headband
10 S0825 .10 Adjustable headband
Signed by Steve Buckle
MODEL: S0825
93/68/EEC CE Marking Directive
BS EN 175:1997 BS EN 379:1994
BS EN 169:2002
11th September 2008
E-mail: sales@siegen.co.uk
INSTRUCTION MANUAL
WELDING HELMET
SOLAR POWERED 9 - 13 SHADES
Thank you for purchasing a Siegen Tools product . Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance .
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND
CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN INSTRUCTIONS FOR FUTURE USE.
The S0825 Automatic Welding Helmet comes ready for use . Batteries are not necessary as operation is by means
of Solar cells which automatically darkens the eye shade cartridge when the arc is struck .
1. SAFETY INSTRUCTIONS
3 Ensure all workshop safety rules, regulations, and conditions are complied with when using welding equipment .
7 The helmet will not offer protection against mis-use of workshop tools, equipment, or accessories .
3 Maintain the helmet in good condition, and protect cartridge from liquid and dirt contact .
3 Regularly replace the protective lenses and replace any damaged or worn parts . Use genuine parts only .
7 Non authorised parts may be dangerous and will invalidate the warranty.
7 NEVER open or tamper with the shade cartridge .
 WARNING! This helmet is not suitable for use with laser and gas-welding.
3 Ensure the front cover lens and front lens frame are securely in place
before use .
3 Select the shade level before use .
3 Fit the helmet and adjust the head band so the helmet will sit as low and
near to your face as possible,
3 Use helmet only in temperatures ranging from -5°C to + 55°C .
7 The eye protective plate in helmet is NOT unbreakable . Helmet will not
protect you against severe impact hazards (such as, but not limited to)
fragmenting abrasive discs/grinding wheels, stones and other grinding
tools, explosive devices or corrosive fluids . The helmet will only protect the
eyes and face from radiation and sparks .
3 Remove ill fitting clothing, remove ties, watches, rings, and other loose
jewellery .
3 Maintain correct balance and footing . Ensure the floor is not slippery and wear non slip shoes .
3 Keep children and unauthorised persons away from the working area .
 WARNING! DO NOT use the helmet if damaged or you suspect it may be faulty. (Contact Service Agent).
7 DO NOT use helmet unless you have been instructed in its use by a qualified person .
7 DO NOT get the helmet wet or use in damp or wet locations .
7 DO NOT leave work place with helmet in lowered position, as bright light source may darken cartridge unexpectedly .
7 DO NOT place the helmet on a hot surface .
3 Clean helmet (see chapter 6) and store the helmet in a safe, dry, childproof location .
 DANGER! If, at any time, the face plate in the cartridge FAILS to darken when exposed to a welding
spark, DO NOT USE. Remove cartridge and return to your dealer for service/inspection. Continued
use of the product knowing that the auto darkening feature is not functioning may damage your eyes
and cause blindness. Continued use of the helmet which is not functioning will invalidate the
warranty and could prohibit a successful claim on any insurance policy.
2. INTRODUCTION
Welding helmet with infinitely adjustable shade control between 9 and 13 . Complies with CE & DIN Standards .
Fully automatic switching from light to dark on striking arc . Shade is selected by large rotary knob on side of
helmet . Solar panel power supply - no batteries required . Features sensitivity and delay controls for switching
light to dark . Deluxe contured helmet with fully adjustable headband with front pad for added comfort . Suitable for
MIG, TIG and ARC Welding .
3. SPECIFICATION
Shade active: . . . . . . . . . . . . . . . . . .9 - 13 variable
Shade inactive: . . . . . . . . . . . . . . . . .4
Viewing area . . . . . . . . . . . . . . . . . . .98 x 48
Response time (light to dark) . . . . . .0 .1ms
MODEL NO:
S0825
fig 1
Operating temperature . . . . . . . . . . . -5 ° C to +55°C
Storing temperature . . . . . . . . . . . . . -20 ° C to +70°C
Power . . . . . . . . . . . . . . . . . . . . . . . .Solar Cells
weight . . . . . . . . . . . . . . . . . . . . . . . .420g
S0825 Issue No:1 12/09/08
