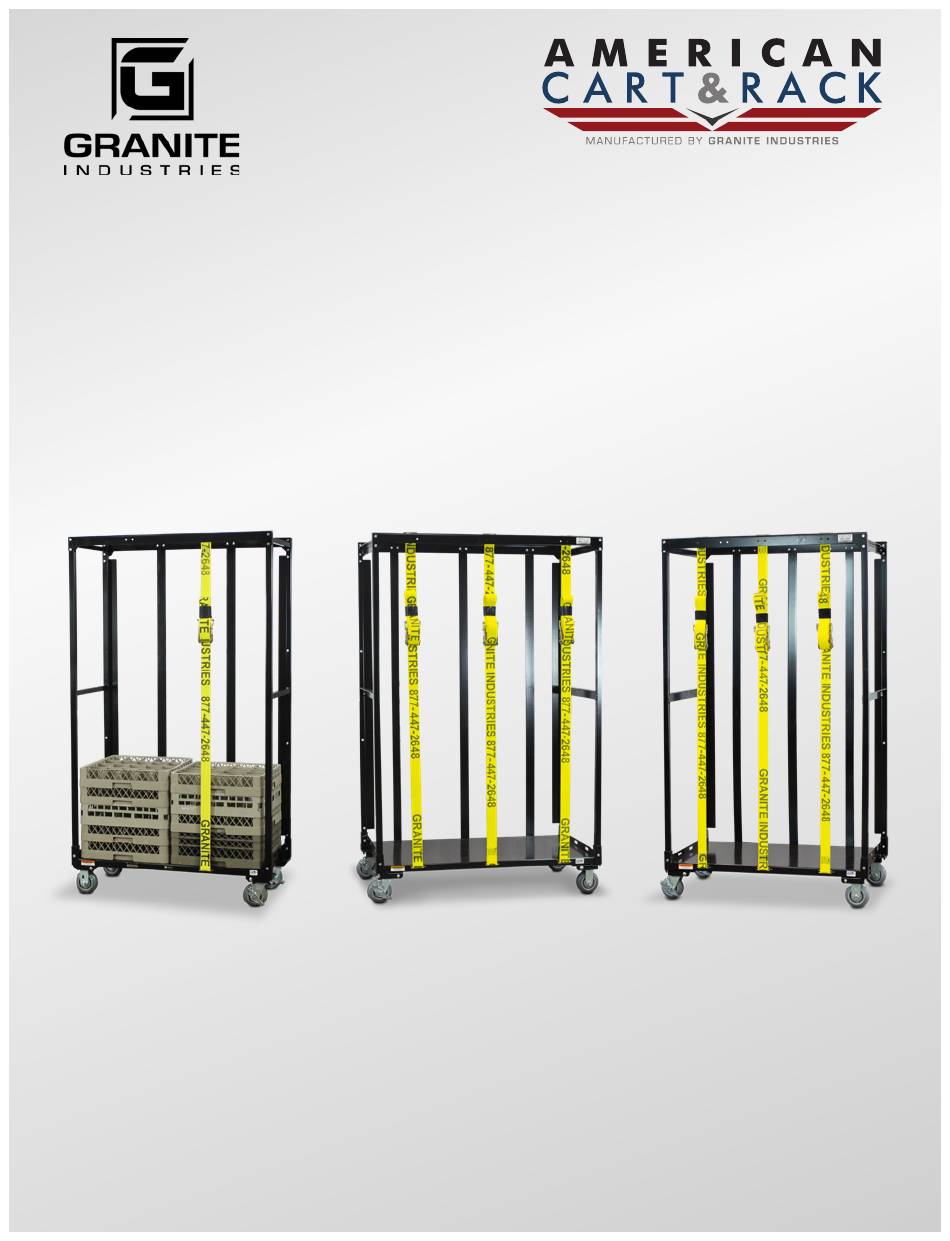

- Page 1 GLASS / DISH RACK, MILK CRATE & OVERSIZE MILK CRATE STORAGE CARTS INSTRUCTION MANUAL 67362, 67428, 67429 Revised: AUGUST 2019...
- Page 2 Granite Industries. Any defective products that meet warranty specifications and Granite Industries approval, may be returned to the factory to be repaired or replaced free of charge. (Granite Industries will pay to ship replacement item(s) to the customer; however the customer is responsible for shipment of products to the factory.) This remedy...
- Page 3 SPECS Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: 138 lb Capacity: 1,500 lb Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: Capacity: 138 lb 1,500 lb Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: 138 lb Capacity: 1,500 lb...
- Page 4 PARTS DIAGRAM - 67362 DISH RACK STORAGE CART Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: Capacity: 138 lb 1,500 lb ITEM NO PART NO DESCRIPTION MI-12-5652 Base MI-12-5654 Left End MI-12-5873 Right End MI-08-1616 Top Brace MI-07-0514 Rear Guard (3” W x 60 1/2” L) MI-07-0515 Rear Vertical Panel (2”...
- Page 5 PARTS DIAGRAM - 67428 MILK CRATE STORAGE CART Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: Capacity: 138 lb 1,500 lb ITEM NO PART NO DESCRIPTION MI-12-6030 Base MI-12-6031 Left End MI-12-6032 Right End MI-08-1616 Top Brace MI-07-0514 Rear Guard (3” W x 60 1/2” L) MI-07-0515 Rear Vertical Panel (2”...
- Page 6 PARTS DIAGRAM - 67429 OVERSIZE MILK CRATE STORAGE CART Dimensions: 43” 20.5” 74” Interior: 40” 20” Weight: 138 lb Capacity: 1,500 lb ITEM NO PART NO DESCRIPTION MI-12-6033 Base MI-12-6034 Left End MI-12-6035 Right End MI-08-1831 Top Brace MI-07-0514 Rear Guard (3” W x 60 1/2” L) MI-07-0515 Rear Vertical Panel (2”...
- Page 7 STEP 1: BASE AND END PIECES COMPONENTS ITEM NO DESCRIPTION Base Left End Right End 5/16” x 2” Hex Bolt 5/16” Locknut TOOLS 1/2” Wrench 1/2” Socket Back Front LEFT END PANEL There is a right and a left end panel. These Note the front of the cart base has are not interchangable.
- Page 8 CHECK POINT Your cart should look like this. If so, continue onto the next step. Make sure the back vertical posts of the side panels have the extra holes. The front of the cart base should have the E-Track slots.
- Page 9 STEP 2: TOP BRACES COMPONENTS ITEM NO DESCRIPTION Top Brace 5/16”x 1-3/4” L Hex Bolt 5/16” Locknut TOOLS 1/2” Wrench 1/2” Socket Insert 5/16”x 1-3/4” L hex bolt Align the top brace with the holes at the top through the brace and end panels. of the end panels.
- Page 10 STEP 3: REAR GUARDS COMPONENTS ITEM NO DESCRIPTION Rear Guard (3” W x 60 1/2”) 5/16”x 1-3/4” L Hex Bolt 5/16” Locknut TOOLS 1/2” Wrench 1/2” Socket Insert a 5/16”x 1-3/4” L hex bolt through the guard and the end panel. Finger tighten Align the rear guard over the 4 holes on the back side of the cart.
- Page 11 STEP 4: REAR VERTICAL PANEL COMPONENTS ITEM NO DESCRIPTION Rear Vertical Panel (2” W x 68 7/8” L) 5/16”x 1-3/4” L Hex Bolt 5/16” Locknut TOOLS 1/2” Wrench 1/2” Socket Insert a 5/16”x 1-3/4” L hex bolt through the rear vertical panel and the cart base. Finger Lay the cart face down, so the back side is facing upward.
- Page 12 STEP 5: CASTERS COMPONENTS ITEM NO DESCRIPTION 5" Fixed Caster 5" Swivel Caster 3/8” x 5” Carriage Bolt 3/8” Lock Nut TOOLS 9/16” Wrench 9/16” Socket While the cart is still face down, insert a fixed Insert one of the 5” carriage bolts through caster into the caster mount on your left the caster mount.
