Summary of Contents for Myriad Design Phantom Piezo Preamp V2
- Page 1 Myriad Design Phantom Piezo Preamp V2 6517V2 (SKU SV206, SV207) User Guide V1.0 – Dec 2017...

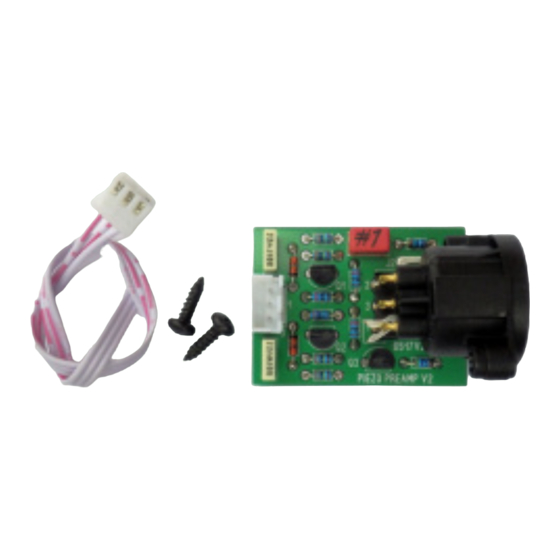

- Page 2 Myriad Design Phantom Piezo Preamp 6517V2 User Guide V1.0 - Dec 2017 Thank you for purchasing the Phantom Piezo Preamp module V2. The preamp is designed for integration into a musical instrument, an art installation or a hydrophone and its purpose is to buffer the output of a piezo transducer element. The preamp is professionally hand-built and the JFET transistors are very closely matched.
- Page 3 The preamp module is physically supported by the output connector. There is no need for additional support for the preamp circuit board. Ø22 (0.866”) 19.8 (0.780”) Panel cut-out (actual size, front view) Allow minimum 7mm (0.275”) clearance between the connector mounting hole and the enclosure min 7mm Selecting a Piezo Transducer...
- Page 4 Copyright 2015-17 Myriad Design. All rights reserved. Disclaimer. The information contained herein is provided in good faith. Myriad Design has no control over the way the design is implemented or integrated into a system. Therefore, Myriad Design offers no actual or implied warranty of fitness for purpose and Myriad Design will accept no liability for consequential loss or damage.
