Qazqa Charlotte 104418 Instruction Manual

Wl 1 black solar

Daylight Sensor

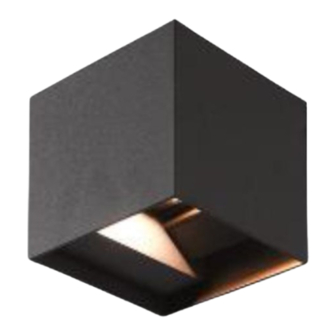

Charlotte WL 1 Black Solar

104418

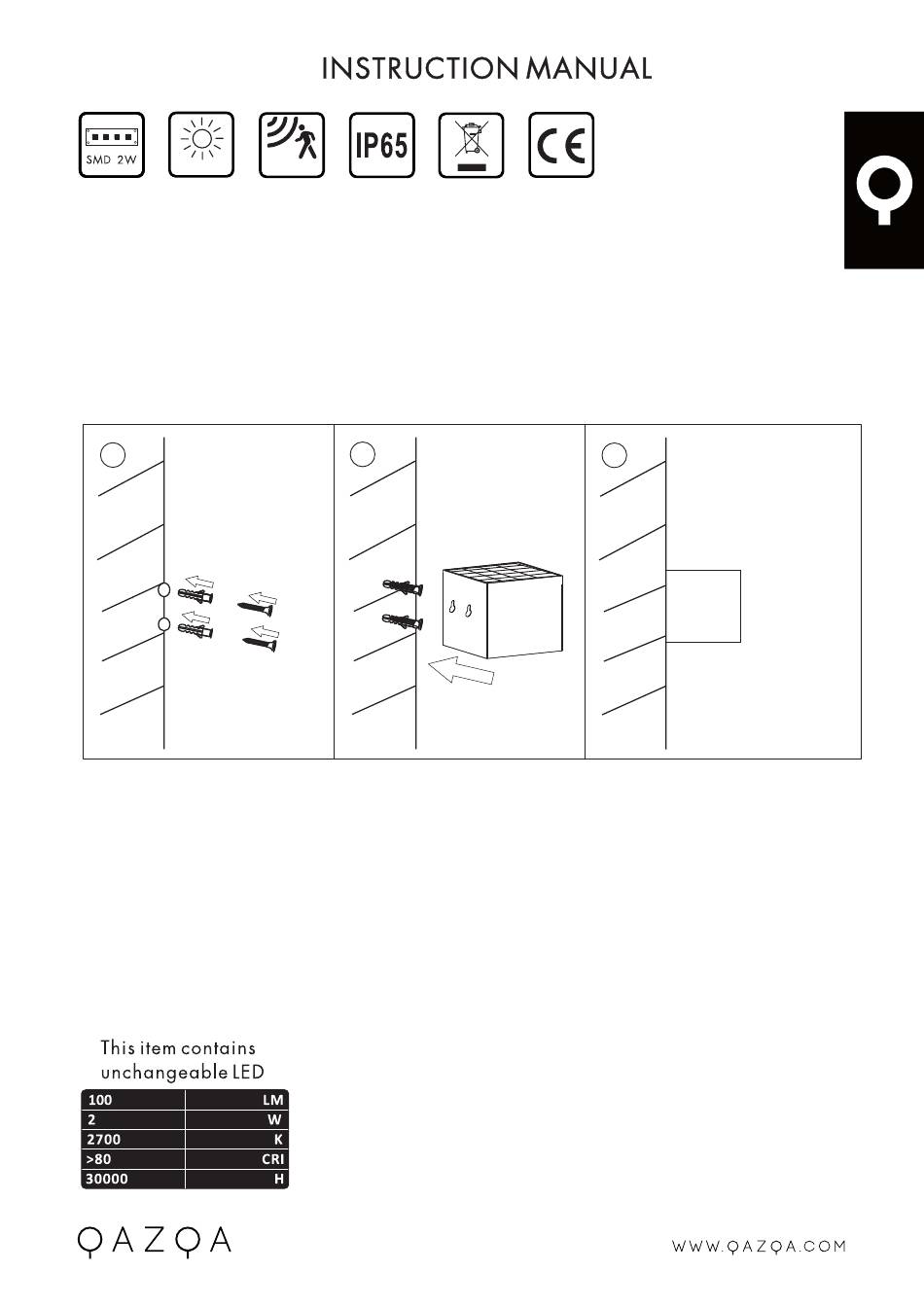

Installation

1. Drill 2 holes on the wall according to the size of the plugs and then hammer the 2 plugs into the wall

&.put the screws in.

2. Fix the luminaire on the screws.

Cautions

1. Please install this solar LED Lamp at the places exposed to the sunlight directly, no shelter.

2. If the LED light start to continuously ﬂashing, it indicates that the unit is low on power and need to be recharged.

3. Please do not change anything of solar panel or battery.

4. Please understand that the working time will be effected when sunshine is not enough(Rainly, Cloudy).

Radar

Motion Sensor

Table of Contents

Do you have a question about the Charlotte 104418 and is the answer not in the manual?

Page 1 Radar Daylight Sensor Motion Sensor Charlotte WL 1 Black Solar 104418 Installation 1. Drill 2 holes on the wall according to the size of the plugs and then hammer the 2 plugs into the wall &.put the screws in. 2. Fix the luminaire on the screws. Cautions 1.
Page 2 Radar Daylight Sensor Motion Sensor Charlotte Black Solar 104418 Optional Functions & Features 1.Future - Proof Design, The solar panel + LED Module is replaceable after working lifetime. No need to replace the whole luminaire, save cost. 2.Security Lighting Option: After 30 seconds without human movement detected, the light will be turned down to 20% brightness automatically(Default setting) 3.Complete Off Option: After 30 seconds without human movement detected, it will be turned off automatically(This option need to press the switch button one time, then it will be...
