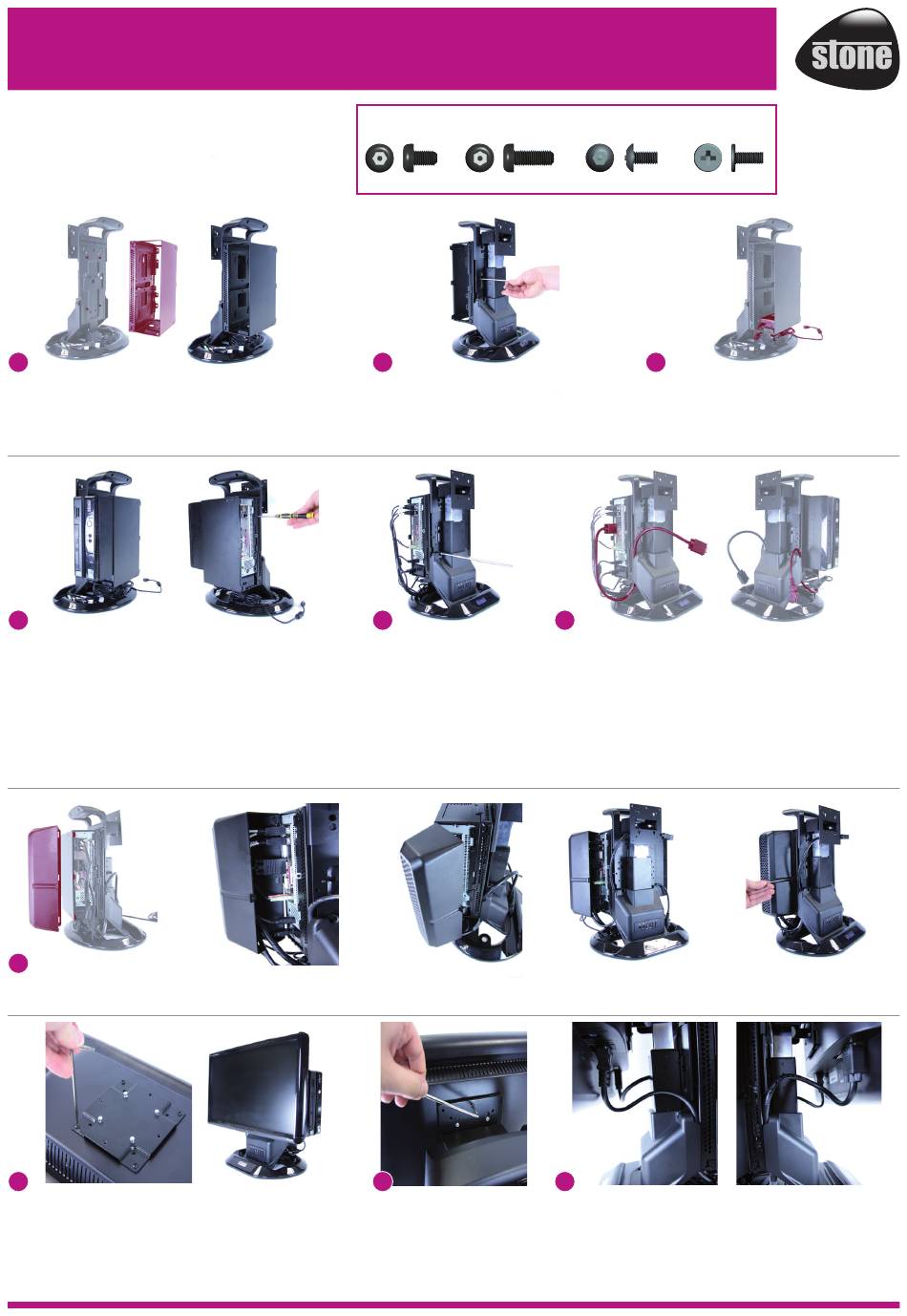

Stone ITX Assembly Manual

UNISTAND ASSEMBLY GUIDE
ITX FORM FACTOR
Note: Before beginning the UniStand assembly process, please
remove the two screws which secure the lid onto your Stone
mini ITX desktop computer and remove the rubber feet if they
are attached.
Finally you will need to remove the manufacturer fitted desk
stand supplied with your monitor.
1
Attach the PC receiving frame to the stand by hooking it over the four
mounting posts, ensuring the frame is orientated correctly, as shown
in the image.
4
Slide the Stone mini ITX computer into the receiving frame so that it
sits on top of the power brick. Ensure correct orientation allowing the
optical drive to open facing the user. Then secure the computer in
position using two #6-32 flat head phillips screws.
Connect all of the required cables to the rear I/O ports of the
computer; this should include LAN, power, peripherals such as
keyboard & mouse, front panel Audio and USB (the cables and ports
are numbered, connect only 1 & 2 if there are not 4 free USB ports
on your PC).
Do not connect the video cable as this is covered in a later step.
7
Attach the cable management cover to the PC receiving frame by hooking it into position on the three protruding tabs, then rotating it on the hinged axis. Ensure that when closing
the cover over the cables, no undue stress is placed on the connectors. Once fully closed, lock the cover in position with a single #6-32 hex socket screw.
8
Mount the VESA plate onto the rear of your monitor using four M4
9mm hex socket screws, then carefully attach the monitor to the
UniStand ensuring the VESA bracket slots into position correctly.
Call 08448 22 11 22 Email sales@stonegroup.co.uk
SCREWS REQUIRED
These items are supplied in the tool bag with your UniStand along with a hex tool
X1 M4, 6MM X4 M4, 9MM
2
Secure the PC receiving frame to the stand using
one #6-32 hex socket screw in the location shown.
5
Remove the two screws that
retain the UniStand front panel
in position.
9
Lock the monitor to the
UniStand using a single M4
6mm hex socket screw.
X4 #6-32, 6MM X2 #6-32, 7MM
3
Place the power brick into the bottom of the PC
receiving frame ensuring correct orientation as
shown in the image. Route the cable beneath the
receiving frame and neatly secure any excess into
the cable management clip.
6
Connect the supplied video cable to the video output of the
computer and carefully route the cable as demonstrated in the image
ensuring that it is captured behind the left hand side of the front panel
in the cable recess provided.
Do the same on the right hand side of the front panel by routing the
monitor power cable up though the cable recess provided.
Secure both cables in position by replacing the two screws that
retain the UniStand front panel in place.
10
Finally connect the power and video cables to the monitor.
