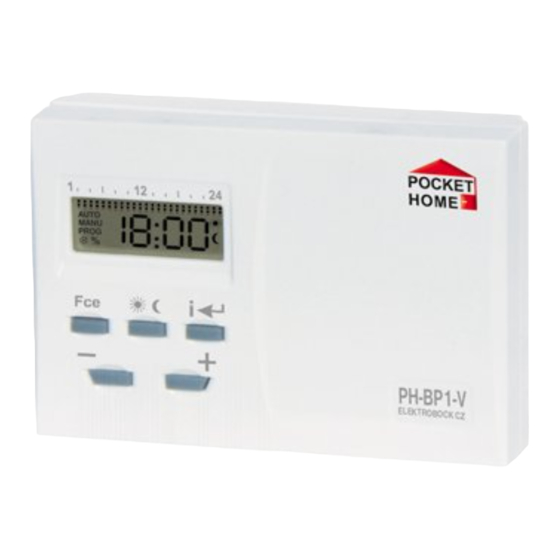

PocketHome
• Element of the PocketHome
• Transmitter for the PH-BP1-P9 receiver
• Detects the room temperature and
sends requirement for circuit switching

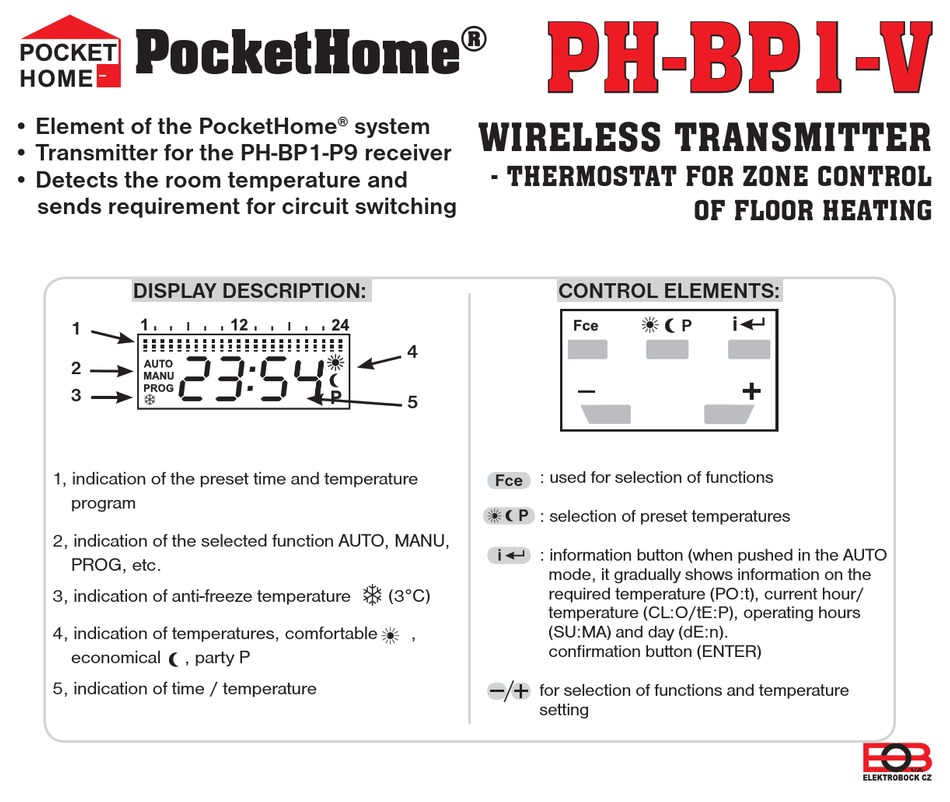

DISPLAY DESCRIPTION:
1
2
3
1, indication of the preset time and temperature
program
2, indication of the selected function AUTO, MANU,
PROG, etc.
3, indication of anti-freeze temperature
4, indication of temperatures, comfortable
economical
, party P
5, indication of time / temperature
®
WIRELESS TRANSMITTER
®
system
- THERMOSTAT FOR ZONE CONTROL
4
5
Fce
i
(3°C)
,
PH-BP1-V
PH-BP1-V
OF FLOOR HEATING
CONTROL ELEMENTS:
P
: used for selection of functions
P
: selection of preset temperatures
: information button (when pushed in the AUTO
mode, it gradually shows information on the
required temperature (PO:t), current hour/
temperature (CL:O/tE:P), operating hours
(SU:MA) and day (dE:n).
confi rmation button (ENTER)
for selection of functions and temperature
setting
Advertisement
Table of Contents
Summary of Contents for Pocket home PH-BP1-V
- Page 1 PH-BP1-V PH-BP1-V PocketHome ® WIRELESS TRANSMITTER • Element of the PocketHome ® system • Transmitter for the PH-BP1-P9 receiver - THERMOSTAT FOR ZONE CONTROL • Detects the room temperature and OF FLOOR HEATING sends requirement for circuit switching DISPLAY DESCRIPTION:...
- Page 2 PocketHome system and all zones controlled from a single point by means of a central unit and/ or through a PC. In that case it is fi rst necessary to activate the PH-BP1-V transmitter in the central unit ®...
- Page 3 5. PA:r : setting of parameters (constants). 6. OF:F : PH-BP1-V is switched off permanently in this mode (except for the “ “ mode ). 7. UA:dr : learning the unique number from the central unit / learning the code in the PH-BP1-P9 receiver Note: If no button is pushed within 2 minutes, the transmitter resumes the basic mode.
- Page 4 PA:r3 comfortable temperature ( 23°C by default) - PA:r3 appears on the display - Confi rm with and set the comfortable temperature , confi rm with button again. PA:r4 party temperature (25°C by default) P - PA:r4 appears on the display - Confi...
- Page 5 PI:r2 Minimum switch-on time of the heating device at PI control Selected in the range of 1 to 5 min. The setting is determined by the heating medium type and depends on the selected time period of PI control. Heating Minimum switch-on We recommend setting according to the given table.
- Page 6 PROG FUNCTION program setting - Push the button and choose the PROG (PROGRAMMING) function with the button; confi rm with the button. - With the button, choose the date which you want to program acc. to the table - After selection, push the button, and the 1:U1 message appears on the display to set the fi...
- Page 7 SYSTEM 1. PH-BP1-V ACTIVATION - ESTABLISHING COMMUNICATION WITH THE CENTRAL UNIT Before activating PH-BP1-V, the central unit must be set and ready according to the PH-CJ37 / Plus manual (or SW for PC)! - On the PH-BP1-V transmitter, push the...
- Page 8 In connection with up to 9 PH-BP1-V transmitters, PH-BP1-P9 means a system for complete control of fl oor heating.
