Summary of Contents for VonHaus 3515220

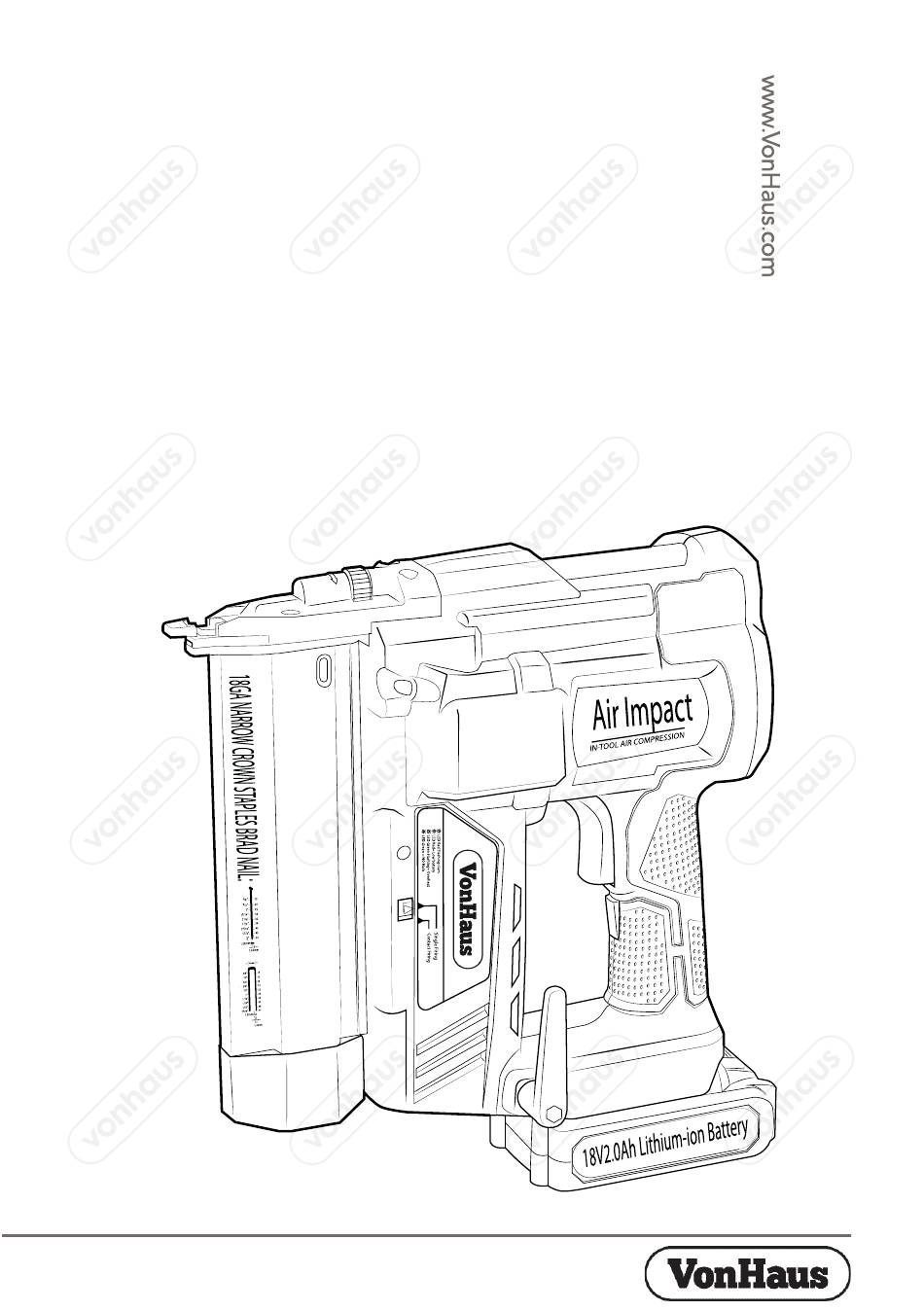

- Page 1 CORDLESS NAIL & STAPLE 3515220 - Instruction Manual...
- Page 2 CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions, Safety Symbols Specifications...
- Page 3 Charging the Battery, Inserting the Battery, LED Indicator Light Inserting Nails, Adjustment Wheel Operation Removing Jams, Troubleshooting Disposal Information Warranty...
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE GENERAL SAFETY INFORMATION. tools will increase the risk of electric WARNING! Read all safety warnings shock. and all instructions. Failure to follow the BEFORE USE. warnings and instructions may result in Stay alert, watch what you are doing, and electric shock, fire and/or serious injury.
- Page 5 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE clothing and gloves away from moving or storing. Such preventative safety parts to prevent them from becoming measures reduce the risk of starting the caught in the tool. power tool accidentally. IMPORTANT SAFETY INFORMATION Store idle power tools out of reach FOR USE.
- Page 6 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE on, tripped over or otherwise subjected service centre. to damage or stress. Keep the lead away Take the tool or charger to your nearest from operating machinery. authorised service centre: Do not place the tool or charger on an If liquid has been spilled onto the tool uneven surface as a fall may cause serious...
- Page 7 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE where static electricity is generated or away from fire. If battery liquid leaks onto allow the battery to touch something that your skin or clothes, wash well with clean is statically charged.
-
Page 8: Safety Symbols
WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE the guidelines of this Instruction manual, Either insert another charged battery into discontinue use immediately and have it the tool or recharge the existing battery checked. before proceeding. The battery pack is an integral NOTE: Attempting to restart the tool in component of these tools and is fitted this condition, without either recharging... -
Page 9: Specification
SPECIFICATION MAX LENGTH MAX LENGTH BATTERY INPUT FIRING MAGAZINE OF NAILS OF STAPLES VOLTAGE VOLTAGE SPEED CAPACITY 120-240V Rated: 20 nails/min Up to 100 nails 50mm 40mm Max: 60 nails/min Up to 100 staples 18 gauge 18 gauge 50/60Hz Brad nail Light duty staple 1. -
Page 10: Charging The Battery
CHARGING THE BATTERY Upon arrival, the Battery (10) will have a low charge this is to prevent possible problems. Plug the Charger (15) into a suitable mains outlet and insert the Battery (10) into the Charger connector. The Charge Indicator Light (A) will illuminate red while charging. - Page 11 INSERTING NAILS/STAPLES Before inserting any nails or staples, check the Safety Contact (3) trip mechanism for function. WARNING! Ensure there are no staples or nails in the tool before checking the Safety Contact. Press the Safety Contact tip and pull the Trigger Switch (7);...
-
Page 12: Operation
OPERATION The Nail & Staple Gun has 2 firing modes; Single Firing Mode and Contact Firing Mode. These are selected by adjusting the Firing Mode Selection Switch (6) on the tool. SINGLE FIRING MODE. This mode is best for precision placement. 1. -
Page 13: Troubleshooting
REMOVING JAMS WARNING! Ensure you remove the Battery before attempting to remove a jammed nail or staple. CAUTION: Jammed nails/staples must be removed before using the tool any further. Failure to do so could cause damage to the mechanism. Open the Nail/Staple Magazine (11), remove the nails or staples from the channel, then remove the jammed nail/staple. -
Page 14: Disposal Information

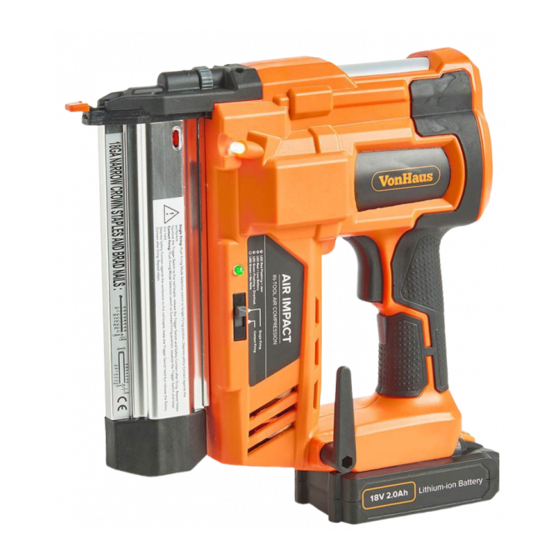

Deva City Office Park Manchester M3 7BF Declare under our sole responsibility that the product: SKU: 3515220 Description: VonHaus 2in1 Nail & Staple Gun To which this declaration relates is in conformity with the following directives: 2014/30/EU, 2006/42/EC, 2011/65/EU, 2006/95/EC, 2014/35/EU. -
Page 15: Customer Service
This does www.Vonhaus.com/warranty. not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a statement as proof of the purchase date. - Page 16 Thank you for purchasing the 2in1 Nail & Staple Gun VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd M24 2RW...
