Janus PSP01 Installation Manual

Items Required for Installation

+ Screen
+ Lens
+ Speaker

Mounting Instructions (Display Panel and Power Supply)

Before installation please ensure there is sufficient air space around LCD unit for ventilation.
1.
Remove from box and unpackage lens and screen panel.
2.
Carefully remove protective film from both sides of lens.
3.
Mount the lens.
4.
Attach the screen with mounted lens to the fixing studs behind COP panel using a flat and spring washer on each
5.
stud before engaging nut.
Mount speaker if desired.
6.
Power supply must be mounted within 5' but no closer than 3'.
7.
Plug power socket into display.
8.
Connect 240V main power to the power supply*.
9.
*Please adhere to instructions on power supply
Caution:
+ Risk of electric shock. Never remove the casing of the unit.
+ Please take all necessary anti-static precautions before handling equipment.
+ Ensure that the Power Supply is connected properly and that the voltage is correct before turning on the system.
+ Handle LCD unit with care. Do not knock and place heavy object on top surface of the LCD unit.
415 Oser Ave Suite Q, Hauppauge, NY 11788 • (800) 527-9156 • www.januselevator.com

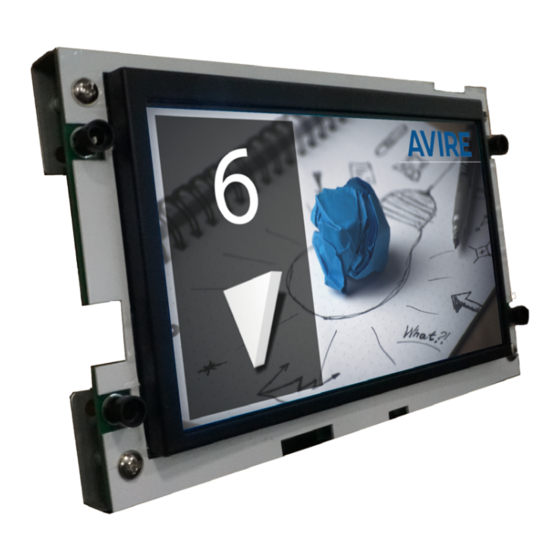

Picture PSP01 Display
