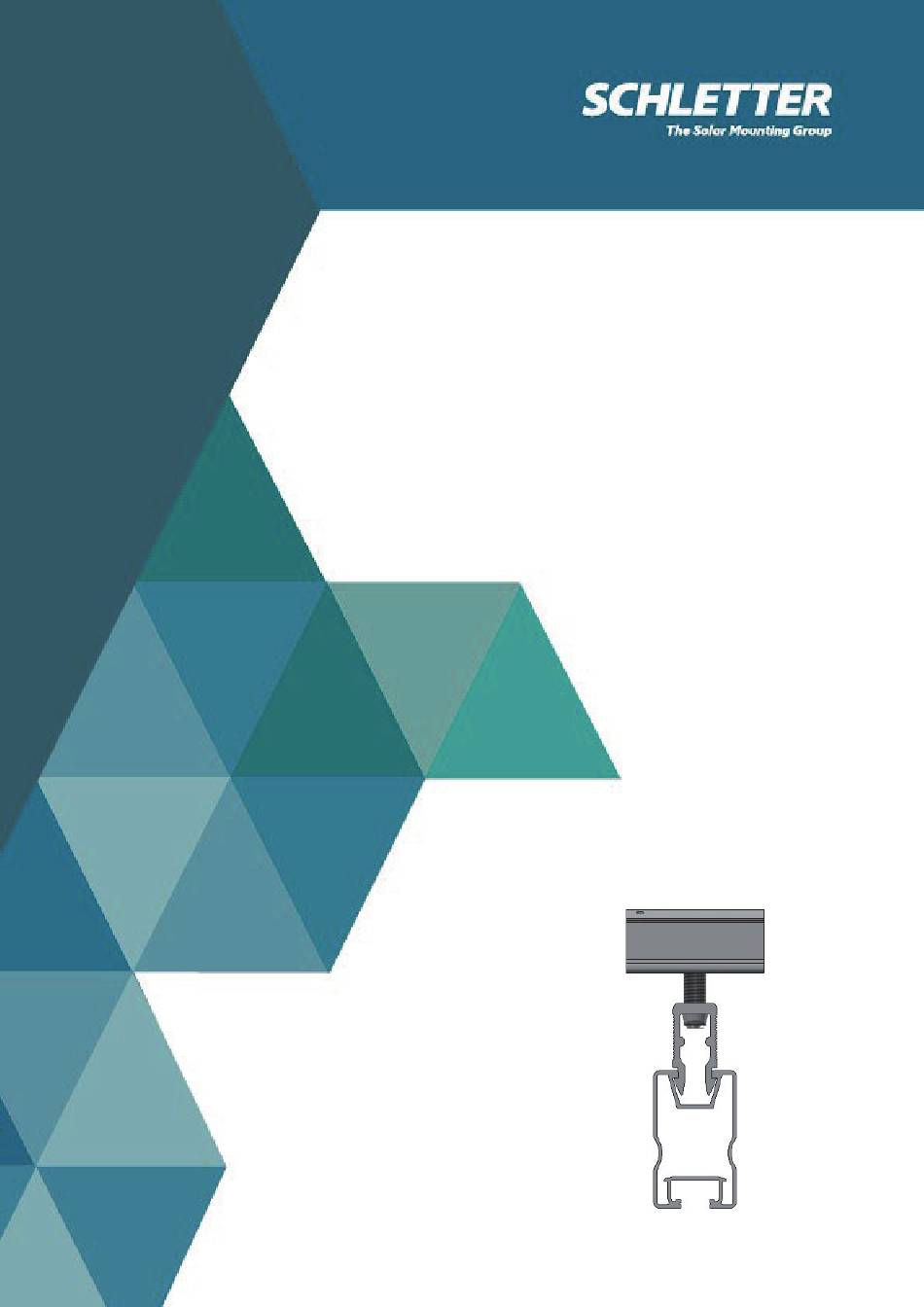

- Page 1 RAPIDPRO MODULE CLAMP INSTALLATION GUIDE...
-
Page 2: Table Of Contents
2. INSTALLING THE FIRST MODULE ............... 4 INSTALLING FURTHER MODULES ............5 4. INSTALLING THE FINAL MODULE ............6 NOTE ON DISASSEMBLY ................6 RAPIDPRO MODULE C LAMP | V 1 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 3: Rapidpro Module Clamp Installation Guide
Electrical current hazard! Installation and maintenance of the PV modules must only be performed by qualified technical personnel. Observe the safety instructions issued by the PV module manufacturer! RAPIDPRO MODULE CLAMP | V1 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 4: Vertical Installation
Place the module on the profile ends. Align the module. Click in 2 RapidPro end clamps and tighten the screws (TX-drive T40). Connect module cables accordingly. Insert end clamps at least 10 mm from the end of the profile. -
Page 5: Installing Further Modules
Distance of the modules between the module rows at least 10 mm or in accordance with the installation guidelines of the module manufacturers. Module-row distance approx. 10 mm RAPIDPRO MODULE C LAMP | V 1 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 6: Installing The Final Module
4. INSTALLING THE FINAL MODULE Click in 2 RapidPro end clamps and tighten the screws. Please ensure that the clamp fits against the module frame (see illustration). Note on disassembly To loosen or dismantle the module clamps, please proceed as follows: When loosening... - Page 7 SCHLETTER SOLAR GMBH Alustrasse 1 83527 Kirchdorf GERMANY www.schletter-group.com We reserve the right to changes, including techni cal modification.
