- Page 1 SPECIFICATION MANUAL...
- Page 2 Fibre Integrated Reception Systems ™ Gateway Termination Unit Horizontal Wideband (290-2340MHz) Light Emitting Diode Low Noise Block milliamps OutDoor Unit Optical Transmitter Power Supply Unit Radio Frequency Vertical Wideband (290-2340MHz) www.globalinvacom.com sales@globalinvacom.com FibreIRS is part of Global Invacom Limited. © 2021 Global Invacom.

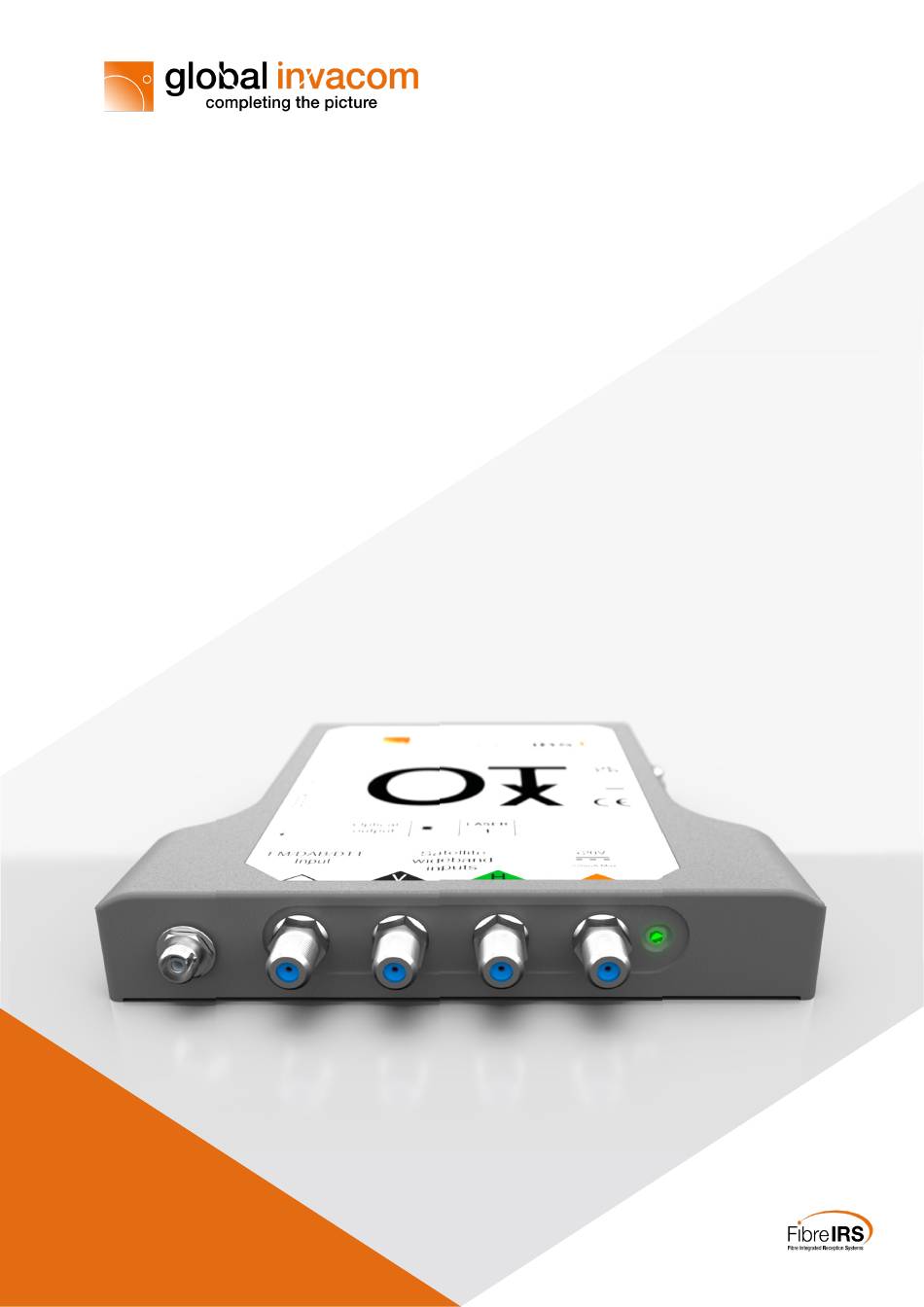

- Page 3 Introduction The purpose of this guide is to enable the successful installation of the Global Invacom FibreIRS system, utilising the OTx at the headend. This guide assumes that: • A site survey has been completed; the location of the dish has been chosen and the dish has been installed.
- Page 4 The mains adapter is the disconnect device for the unit. Please ensure it is easily accessible. • LED on the OTx is to indicate correct powering of unit. The LED should be a constant green. • Maximum current draw 350mA excluding current on connected inputs.
- Page 5 Horizontal Input F-Type F-Type (12V) F-Type (+12V) F-Type (+20V) (+20V) Typical Connection 4 Way 32 Way Optical Optical Splitter Splitter Qty: 8 32 Way Optical Splitter, 256 GTU www.globalinvacom.com sales@globalinvacom.com FibreIRS is part of Global Invacom Limited. © 2021 Global Invacom.
- Page 6 Mounting Dimensions www.globalinvacom.com sales@globalinvacom.com FibreIRS is part of Global Invacom Limited. © 2021 Global Invacom.
- Page 7 Bracket mount (pole) Using the supplied fixings attach the pole mount bracket to the back of the OTx. Ensuring the washer is fitted and the nut tightened. This should be fitted before mounting on a mast. Once bracket is secured to the OTx open...
- Page 8 “Do Not Dispose of in Household Waste” symbol as prescribed in the WEEE Directive. Global Invacom Ltd has an obligation to ensure the appropriate steps are taken for the recovery and recycling of WEEE from its customers. To meet this obligation we ask customers to contact the Customer service Department (+44 (0)1438 310510) sales@globalinvacom.com once the product has reached the end of its life.
