Summary of Contents for F-SCAN F-SCAN COMPACT DUO

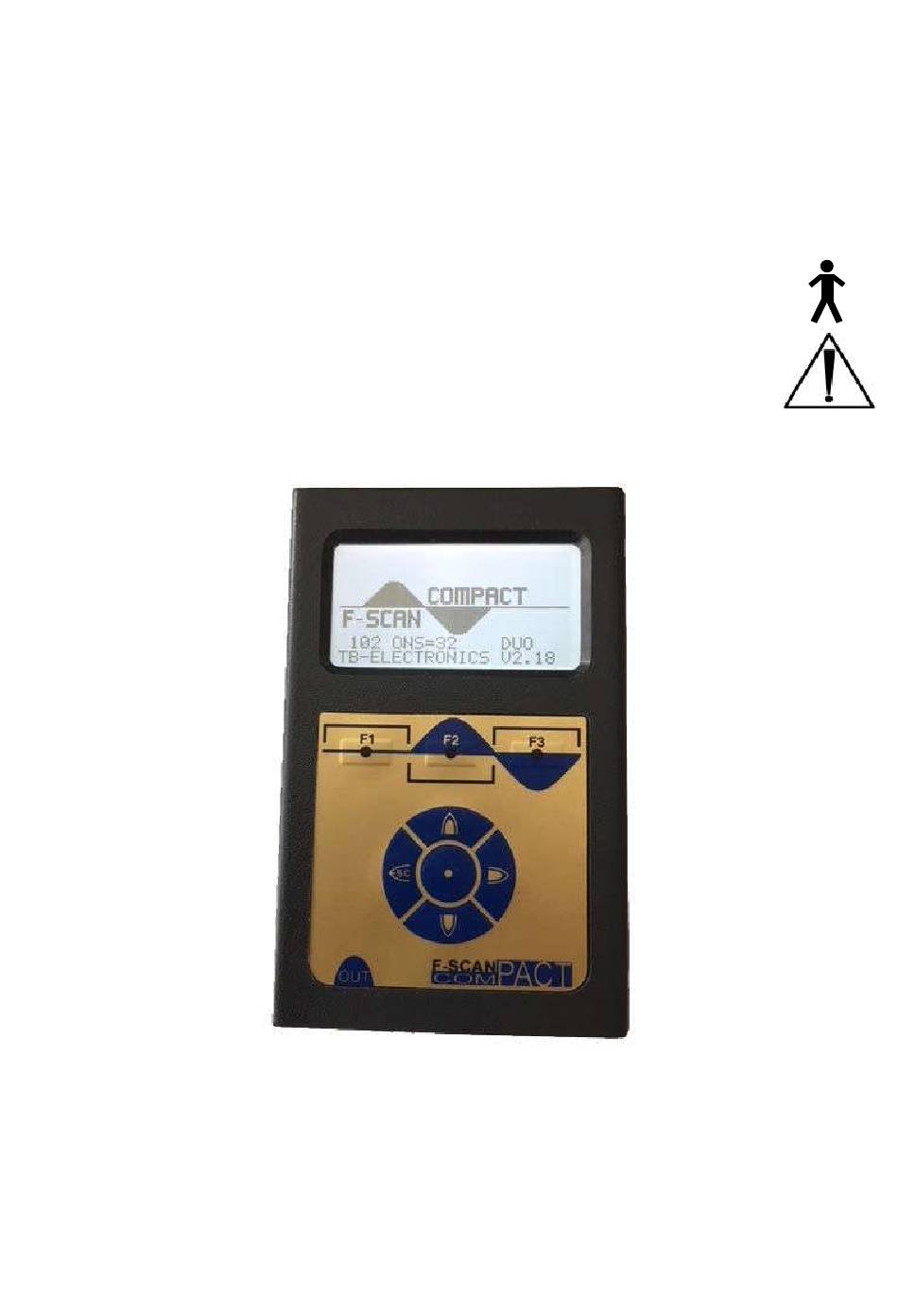

- Page 1 Frequency Synthesizer F-SCAN COMPACT DUO Firmware Version FSC V2.1x with100 memory banks INSTRUCTION MANUAL This symbol identifies the equipment as Type B ATTENTION: Consult accompanying documents - 1 -...
- Page 2 - 2 -...
-
Page 3: Table Of Contents
Preface......................... - 4 - Introduction ........................- 4 - Two generators – DUO MODE................... - 5 - Standard – shipping list for the F-SCAN COMPACT DUO ........- 6 - Default settings......................- 6 - Elements for operation....................- 7 - Signals sent to the output port.................. -
Page 4: Preface
The F-SCAN COMPACT DUO offers the same set of more than 340 pre- programmed applications if enabled by the user. An application can be selected and ready to start within one minute. 100 memory banks for up to... -
Page 5: Two Generators - Duo Mode
Two generators – DUO MODE The most important benefit compared to other frequency devices is that the F-SCAN COMPACT DUO is equipped with a second generator which can be used to provide a different frequency on another wire of the application cable. -
Page 6: Standard - Shipping List For The F-Scan Compact Duo
Standard – shipping list for the F-SCAN COMPACT DUO F-SCAN COMPACT DUO Power supply (with USB-connector) Mini-USB-cable Application cable FTB033 plus 3 alligator clips to attach Sticky pads Instruction manual (not shown) Default settings... -
Page 7: Elements For Operation
Elements for operation SOFT keys Mini-USB-Connector. Graphical F1, F2, F3. Connect to PC, Notebook monochrome LCD- Tasks for each key are or power supply to charge display. defined in the bottom line Lithium-Ion battery of the display during USB-cable operation. KEY-UP KEY- RIGHT KEY-LEFT... -
Page 8: Signals Sent To The Output Port
Signals sent to the output port 3 Vpp SINE SQUARE DC-OFFSET positive, (0Vpp to 12Vpp) To improve efficacy, a small portion of a 10 MHz wave is modulated on the output signals. - 8 -... -
Page 9: First Steps
First steps The charge level of the Lithium-Ion battery of the F-SCAN COMPACT DUO must be checked first after the device and its accessories have been unpacked. CHARGE YOUR F-SCAN COMPACT DUO BEFORE FIRST USE FOR AT LEAST 4 HOURS. CONNECT THE DEVICE AND THE POWER SUPPLY WITH THE USB CABLE AND PLUG THE POWER SUPPLY INTO AN AC-OUTLET. - Page 10 connected with the USB-cable to either the power supply or a booted PC or Notebook or wireless charging pod until the battery is fully charged. The battery discharges slowly when the device is operated stand-alone. The battery should be recharged if its capacity reaches 30%. A protection circuit shuts the device off if it is operated below that level.
-
Page 11: How To Select And Run An Application
How to SELECT and RUN an APPLICATION Program number 27 shall be used Connect the 3.5mm plug of the application cable to the socket located on the front side of the device below the label Connect the application cable to the self adhesive pads or the alligator clips wit wet towels. - Page 12 Select entry. Press and hold until the desired program number appears in the center of the top line of the display. Take the hand holds or position the self adhesive pads. Start with Program 27 holds 8 frequency values and completes the application within 24 minutes .
-
Page 13: Display Readings Of An Active Application
Display readings of an active application: program number of total battery charge name of number frequencies of indicator application application number of active frequency signal wave form of amplitude in % outputs generator runtime frequency when remaining for in DUO mode the whole application runtime... -
Page 14: Memory Banks For User Defined Applications
Memory banks for user defined applications The F-SCAN COMPACT DUO offers 100 memory banks of 50 positions each or 25 positions in DUO MODE. User can enter frequency sequences from the Internet or from other sources. Entries will be saved until erased by the user. The procedure to follow to either erase all user entries together, or one sequence only, will be described later in this document. - Page 15 Input of a frequency Enter 200 Hz Plus 1 times 10 F=20 times 10 F=200 Confirm with CENTER Now the second value F=200 Hz is memorized in bank #1. Input of a frequency enter 1234 Hz times 10 F=10 Plus 1 F=11 Plus 1 F=12...
-
Page 16: Start A User Defined Application
Start program with Start a user defined application The F-SCAN COMPACT DUO offers 100 memory banks of 50 positions each. If the program is started with “F1”, both generators output the same frequency in sequences one by one. -
Page 17: Input Of Decimals
Input of decimals Some applications mentioned in the literature call for use of frequencies with up to 2 decimals (i.e. 8.82 Hz). The F-SCAN COMPACT DUO offers this feature. Input a frequency with decimals, i.e. 8.82 Hz. -
Page 18: Name An Application
With KEY CENTER the entry will be confirmed and memorized. TIMER Change the runtime per frequency The factory default for each frequency value issued by the F-SCAN COMPACT DUO is 3:00 minutes. The user can adjust it in steps of 15 seconds between 0:30 and 60:00 minutes. -
Page 19: Change The Amplitude Of Signals
Change the amplitude of signals The factory default for the amplitude of signals generated by the F-SCAN COMPACT DUO is 40% of the maximum of for SQUARE WAVE DC- OFFSET signals and SINE WAVE. The user can adjust it in steps of +/- 1%. -
Page 20: Reset To Default Settings
Reset to default settings If the switch DEFAULT SETTINGS in the window DEVICE SETTINGS is activated, the following parameter will be reset: Display language: English (2nd choice German) Runtime per Frequency: 3:00 minutes (range 0:30 to 60:00 minutes) Amplitude of signals: 40% of maximum of 12Vpp (adjustable in steps of +/- 1%) Wave form:... -
Page 21: Clear All User Memory Banks
Clear ALL user memory banks If the switch CLEAR USER MEMORY in the window DEVICE SETTINGS is activated, all 10 memory banks will be cleared. They will be ready for new input. Example: how to clear all user memory banks: Switch on Select DEVICE SETTINGS Confirm with CENTER... -
Page 22: Clear One User Memory Bank
Clear ONE user memory bank Example: how to clear ONE user memory bank: Switch on Select INDIVIDUAL APPLIC. Confirm with CENTER Memory bank #10 has 3 entries. Press SOFT-KEY F3 until a beep. The last Frequency of Memory bank no. #10 will be cleared and the message ”02 FREQUENCIES“... -
Page 23: Option Chipcard Ftb313
DUO devices. It can also be used to transfer one application from an F-SCAN COMPACT DUO to an F-SCAN MinDevice. Data exchange between F-SCAN3, F-SCAN4 and F-SCAN MOBILE NT is also possible with the ChipCard FTB313. The ChipCard must be inserted as pictured into the slot of the F- SCAN device. -
Page 24: Data Transfer With Chipcard
ChipCard is transferred to an F-SCAN COMPACT DUO this application will be readily available after power “ON”. This application will also transfer to an F-SCAN MinDevice if the ChipCard is used there. ERASE ChipCard If selected and confirmed with CENTER, the content of the ChipCard will be erased. -
Page 25: Chipcard Immediate Use
APPLICATIONS will be copied to the ChipCard. The procedure takes a few seconds. Function of the CHIPCARD with an F-SCAN MinDevice If an INDIVIDUAL APPLICATION stored in an F-SCAN COMPACT DUO should be transferred to an F-SCAN MinDevice, the following procedure applies: Transfer the application from the COMPACT to a ChipCard using the routine explained before. -
Page 26: Miscellaneous
The CV can also be used as a functional control of the device, and the application cable with the set of electrodes, as follows: The F-SCAN COMPACT DUO must be readied for an application and a frequency started. The electrodes must not touch. The display must show no bargraph and LED must be bright. -
Page 27: Technical Data
TB-ELECTRONICS GmbH Poststrasse 4 CH-9443 Widnau that the following product with the marking F-SCAN COMPAC DUOT Frequency Synthesizer declare under our sole responsibility to which this declaration relates is in conformity with the following standard: EMC: 89/336, 92/31, 93/68 Harmonized standards: EN 61326-1... - Page 28 - 28 -...
