Summary of Contents for Kellfri 31-TL135

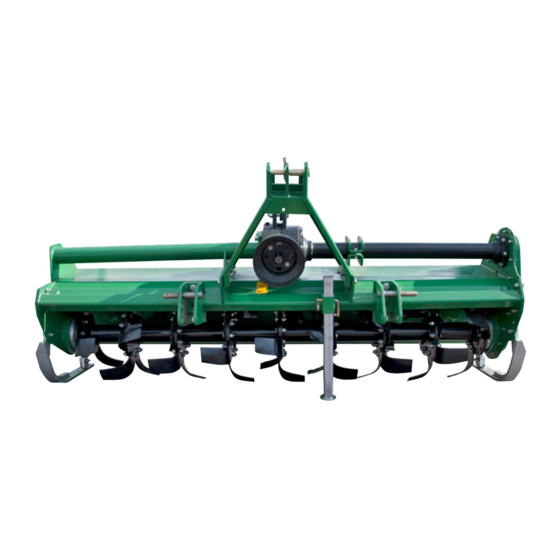

- Page 1 31-TL135 31-TL180 31-TL210 ROTARY-CULTIVATOR 31-TL135 31-TL180 31-TL210 Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers with stringent performance demands. -
Page 4: Safety Instructions
If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 37 SKARA, Sweden. Tel.: +46 511-242 50 The safety instructions can also be downloaded from the Kellfri website: www.kellfri.co.uk... -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equip- ment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product and only use it in the way described in the operating manual. There is a risk of crushing when working with equipment that has moving parts. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. - Page 8 FOR USING MACHINE/EQUIPMENT CONNECTED TO TRACTOR PAY ATTENTION TO THE FOLLOWING: • Carefully read the machine’s operating manual before using the machine! It is important that you understand the directions in the manual. • Keep the work area clear of children and other people. Moving parts increase the risk of accidents. •...
-
Page 9: Machinery/Equipment Connected To Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to look for leaks. •... -
Page 10: Warning Labels
WARNING LABELS Make sure warning labels are always visible and clean them when necessary. Do not use a high- pressure washer directly on the warning label. If a part with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 11: Chemicals
To ensure the best lubricating effect, you need to clean parts of the product or equipment from time to time. We recommend degreasing to achieve thorough cleaning and to remove all residues of old lubricant, which may contain destructive particles. The degreasing agent we supply at Kellfri is OKQ8, in a 20-litre can. Table of Contents>>... -
Page 12: Connecting The Equipment
CONNECTING THE EQUIPMENT • Connect the machine to the tractor’s rear 3-point linkage. • Connect the PTO shaft. Secure the chain properly. OPERATION Carefully inspect the area the equipment will be used in and remove all objects that may get stuck under or be thrown by the machine. -
Page 13: Service
SERVICE INTERVAL MEASURE Blades Before each use Replace all defective blades. Sharp blades give better results. When replacing blades, tighten bolts fully. While operating Listen out for noises After each use Check Gearbox Before each use Check level 50 operating hours First oil change 100 operating hours or Oil change... - Page 14 Table of Contents>>...
-
Page 15: Gearbox
DESIGNATION DESIGNATION BOLT M12x85 SIDE PLATE - LEFT SLEEVE - HANG OIL PLUG M16x 1.5 LOCKING NUT M12 COMBINED WASHER PIN - HANG SIDE PLATE - BACK RING PIN BOLT - SQUARE HEAD M12x80 RIGHT BRACKET NUT M12 LOCKING NUT M10 WASHER Ø12 WASHER Ø10 CHAIN HOUSING... - Page 16 Table of Contents>>...
- Page 17 DESIGNATION DESIGNATION BOLT M12x40 PIN - HANG CYLINDRICAL GEARWHEEL FLAT WASHER Ø10 ATTACHMENT PLATE SIDE PLATE - RIGHT GASKET 3-POINT LINKAGE BRACKET FOR MID GEAR, Ø40MM GREASE NIPPLE COVER CYLINDRICAL GEARWHEEL - MID O RING Ø145x3.6 GASKET BALL-BEARING BALL BEARING CLAMP RING Ø80 - HOLE M10 X 25 BOLT CLAMP RING Ø35 - AXLE...
- Page 18 Table of Contents>>...
- Page 19 DESIGNATION QUANTITY BOLT M10x25 SPRING WASHER Ø10 FLAT WASHER Ø10 COVER OIL SEAL BALL BEARING AXLE - SHORT BEVEL GEAR BALL-BEARING PLUG M16x1.5 GASKET BLEED PLUG GASKET GEARBOX HOUSING GASKET - BACK FLANGE BACK FLANGE GASKET - TUBE GEAR - BEVEL GEAR ROUND NUT M30x1.5 FOLDING LOCKING WASHER Ø30 AXLE - SHORT...
- Page 20 Table of Contents>>...
- Page 21 Table of Contents>>...
- Page 22 OIL LEVEL FILLER PLUG (0,7L) DRAIN PLUG Table of Contents>>...
- Page 23 DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. The manual can also be downloaded from manual.kellfri.co.uk...
- Page 24 You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
