AMPHORA Plus Assembly Instructions

Download this manual

LIST OF SUPPLIED PARTS

Cutting plan of the bio-mat

20x

Part I1 Rear bottom

Part I6 Front body

Part I4 Central body

Assembly Instructions

AMPHORA Plus

Part I2 Front bottom

Parts I5 Rear body 1 and 2

M10x65 (2x)

Warning

The glazing is very fragile and the edges are

prone to damage during the transport or

assembling.

When working with the shaped pieces of the

body, proceed very carefully, do not use exces-

sive force.

If a light damage occurs, you can use the

supplied silicone caulk or any nail-polish with

similar colour to repaint the discrepancy.

Process

Using a bonding agent, glue the bio-mat (part I1 rear bottom according

Using a bonding agent, glue the bio-mat (part I2 front bottom according

to the cutting plan of the bio-mat) to the bottom cutout of the bottom rear

to the cutting plan of the bio-mat) into the bottom cutout of the bottom

Place the inner plate

plate, place the plate by this bottom side with the bio-mat to a stand.

front plate, place the plate by this bottom side with the bio-mat to the stand

into the bottom plate cutout.

Need help?

Do you have a question about the Plus and is the answer not in the manual?

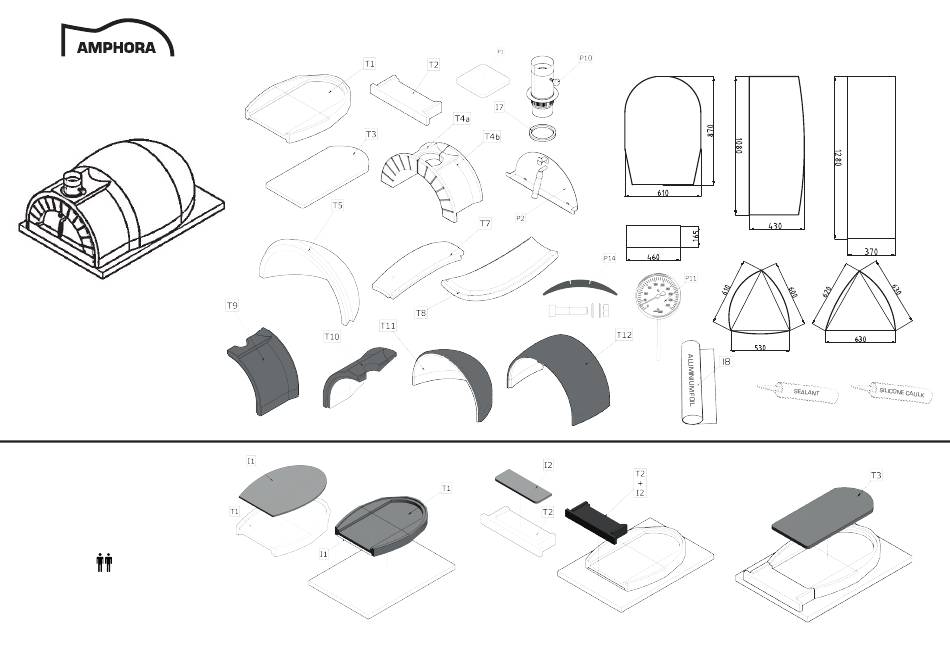

Page 1 Cutting plan of the bio-mat Part I1 Rear bottom Part I6 Front body Part I4 Central body Assembly Instructions AMPHORA Plus Part I2 Front bottom Parts I5 Rear body 1 and 2 M10x65 (2x) Warning The glazing is very fragile and the edges are prone to damage during the transport or assembling.
Page 2 Place the front arch on the front plate of the bottom. Then bolt the smoke guard to the arch. Do not Place the small side arch between the front Place the central part of the arch with a hole tighten the joints too firmly, otherwise the damage of the Place the rear arch and rear arch.
