AC101QF/TF Ultra Low Power 10/100
GENERAL DESCRIPTION
The AC101QF/TF is a highly integrated, 3.3V, low power,
10BASE-T/100BASE-TX/FX, Ethernet transceiver implement-
ed in 0.35 µm CMOS technology. Multiple modes of operation,
including normal operation, test mode and power saving mode,
are available through either hardware or software control.
Features include MAC interfaces, encoder/decoders (EN-
DECs), Scrambler/Descrambler, and Auto-Negotiation (ANeg)
with support for parallel detection. The transmitter includes a
dual-speed clock synthesizer that only needs one external clock
source (crystal or clock oscillator). The chip has built-in wave
shaping driver circuit for both 10 Mbps and 100 Mbps, eliminat-
ing the need for an external hybrid filter. The receiver has an
adaptive equalizer/DC restoration circuit for accurate clock and
data recovery for the 100BASE-TX signal. It also provides an
on-chip low pass filer/Squelch circuit for the 10BASE-T signal.
MAC interfaces to support 10/100 MII, 100M only Symbol
Mode, 10M only Symbol Mode and 10M only 7 wire interface
are included.
The AC101TF and the AC101QF are the same product in differ-
ent packages.
MII Data
Interface
MAC
or
RIC
MII Serial
Mgmt
Interface
16215 Alton Parkway • P.O. Box 57013 • Irvine, CA 92619-7013 • Phone: 949-450-8700 • Fax: 949-450-8710
PCS
PMA
o Framer
o Clk Recov
o Carrier
o Link Mon
Detect
o Signal Det
o 4B/5B
Interface
10BASE-T
Control/Status
MII Serial Management
Interface and Registers
Test/LED Control
PHYAD[4:0]
XTLP/N CKIN TEST[3:0] LED Drivers

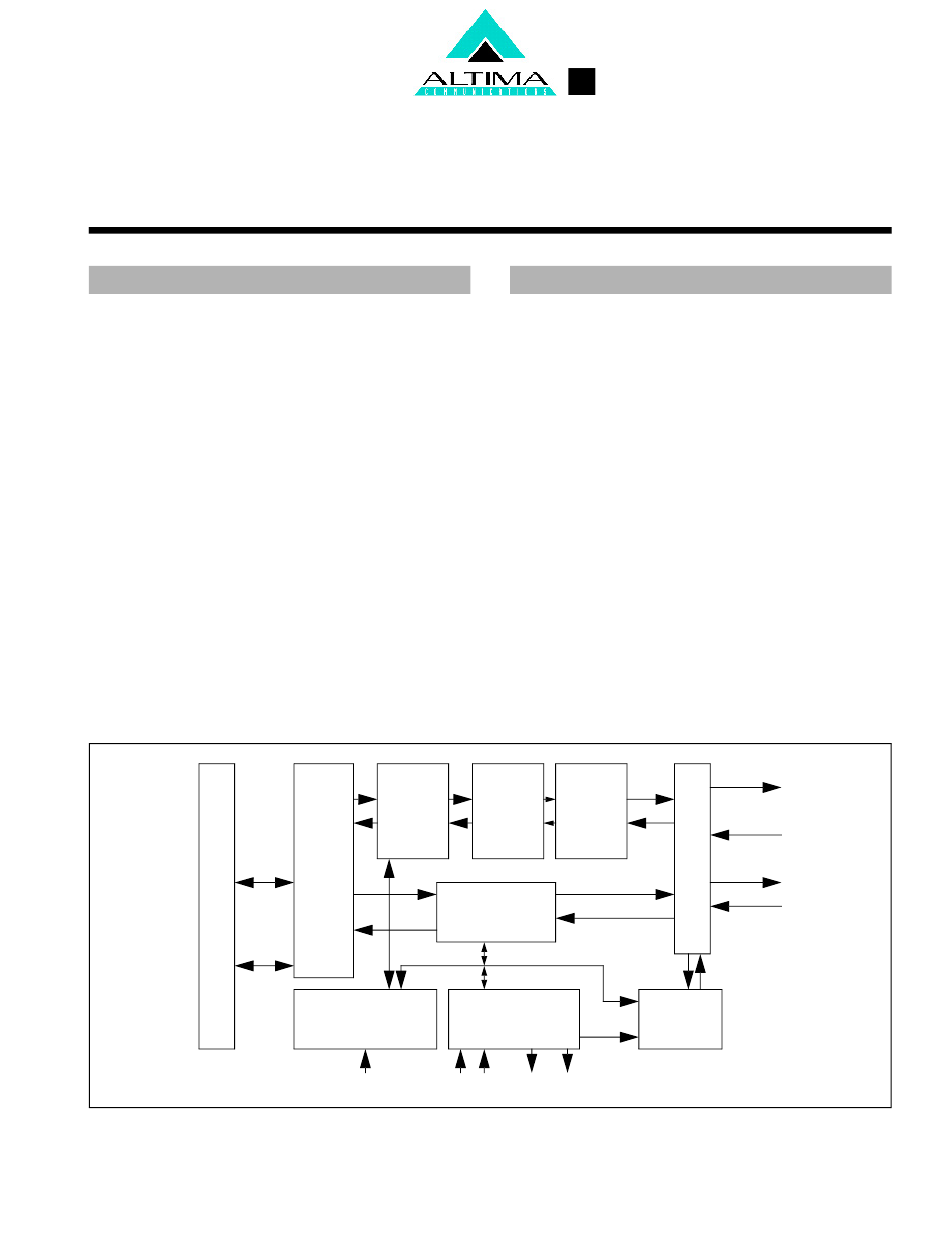

Figure 1: Functional Block Diagram
PRELIMINARY DATA SHEET
AC101
Ethernet Transceiver
FEATURES
•
MII MAC connection
- 5 Volt tolerant and 2.5 Volt capable
•
10/100 TX/FX
- Full-duplex or half-duplex
- FEFI on 100FX
•
Two packages: 80TQFP and 100PQFP
•
Industrial temperature: -40°C to +85°C
•
Very low power – TYP < 280 mW (Total)
- Cable Detect mode – TYP < 40 mW (Total)
- Power Down mode – TYP < 3.3 mW (Total)
- Selectable TX drivers for 1:1 or 1.25:1 transformers for
additional power reduction
•
3.3 Volt .35 micron CMOS
•
Fully compliant with
- IEEE 802.3/802.3u
- MII
•
Baseline Wander Compensation
•
Multi-Function LED outputs
•
Legacy 10BASE-T 7 wire interface
•
100M Symbol Mode/10M Symbol Mode
•
Cable length indicator
•
Reverse polarity detection and correction with register bit
indication – automatic or forced
•
8 programmable interrupts
•
Diagnostic registers
TP_PMD
100TX
o MLT-3
o BLW
o Stream
100RX
Cipher
10TX
10RX
20 MHz
PLL Clk Gen
25 MHz
Negotiation
TXOP/TXON
RXIP/RXIN
Mux
FXTP/FXTN
FXRP/FXRN
RX
FLP
Auto-
AC101-DS01-405-R¥¥¥¥¥
06/04/01
