Summary of Contents for Evocare KH407 TWIN BOOM
- Page 2 INDEX PAGE SPECIFICATIONS SPARE PARTS SAFETY PRECAUTIONS OPERATING INSTRUCTIONS MAINTENANCE INSTRUCTIONS OPTIONS AVAILABLE ASSEMBLY / DISASSEMBLY INSTRUCTIONS CLEANING INSTRUCTIONS SPECIFICATIONS Length 1240mm DIMENSIONS: Width 700mm Height 1415mm Effective lift range 580mm – 1700mm Leg gating (inside) 520mm – 1000mm Lift reach 580mm Under base clearance 60mm...

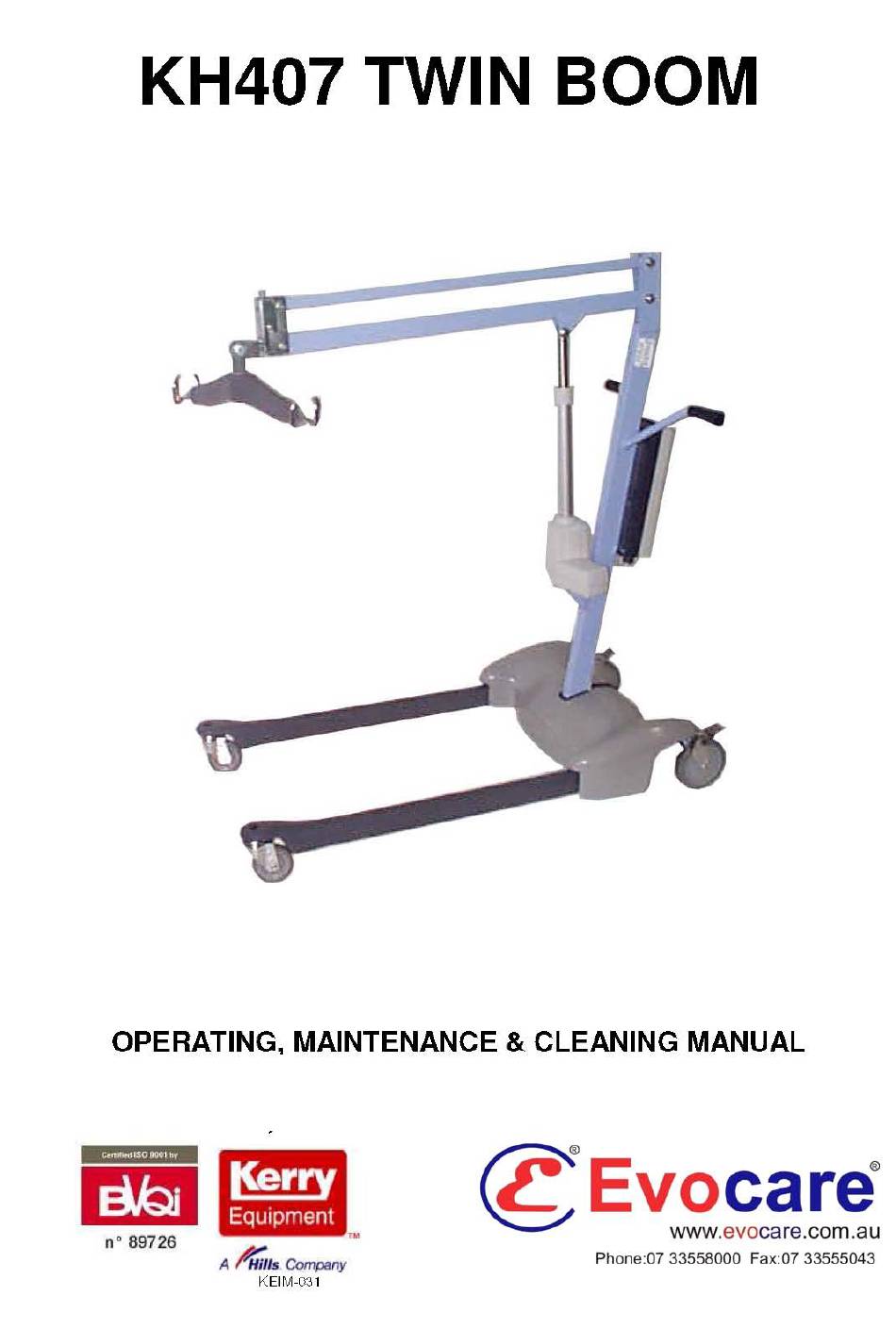

- Page 3 KH407 TWIN BOOM...
- Page 4 SAFETY PRECAUTIONS. For safety precautions only properly trained personal should use the hoist. 1. The KH 407 hoist is manufactured and tested with safety and function for the carer and patients as the utmost importance. No parts should be removed from the hoist without approval as this may create an unsafe working condition.
- Page 5 HANDSET: RAISE/LOWER: The hoist operates via a touch pad handset. The top two switches on the handset are for raising and lowering. To raise or lower the hoist, simply press the required switch on the pad. (Fig 4) Fig 2 LEG GATING: To OPEN or CLOSE the “Gate”...
- Page 6 If a two battery system is going to be used, replace the first battery once charged, with the second battery. Charge using the same procedure as above. NOTE: A battery pack may remain on charge indefinitely without any detrimental effects to the battery or charging unit.
- Page 7 BASE PIVOT POINTS All pivot points will need to be lubricated with TAC-2 or similar lubricant. Simply spray for 2 seconds on each side of the recommended points monthly. The hoist has to be turned onto its side for access to the following lubrication points. (To do this 2 people are required.) Follow the instruction below: 2.0.1 Both people are to stand on one side of the hoist.
