- Page 1 TRI FLAT User Manual...
-
Page 2: Table Of Contents
T able of Contents Safety ..................2 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Description ................5 ................Features Setup ..................6 ..............Power Linking ................Mounting ................Operation ................Menu Map ..............DMX Channel Specifications................8... -
Page 3: Safety
Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE. -
Page 4: Precautions
Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C. -
Page 5: Description

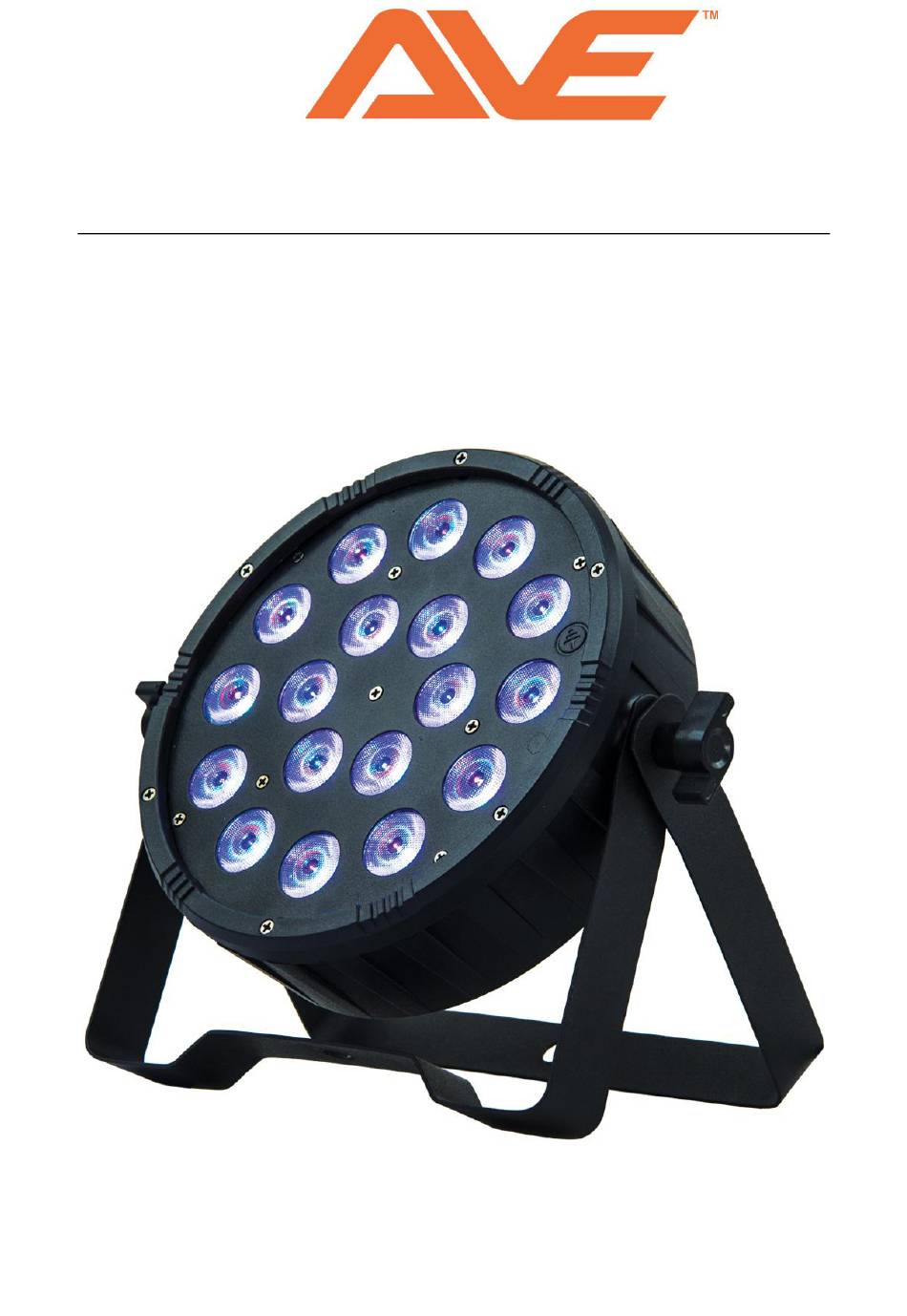

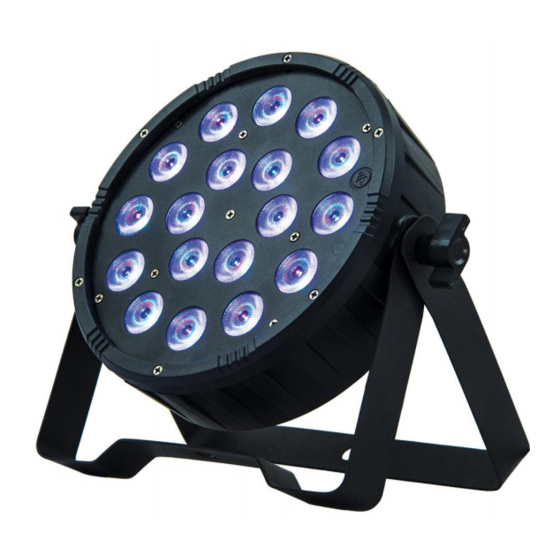

Description The AVE Tri Flat is a lightweight and high-output LED par can that is designed to give you the flexibility and performance your event or stage needs. Featuring 18x 3W LED diodes each with Tri- colour technology (RGB) allowing you to mix a huge colour spectrum. The par is built into a light ABS plastic housing with thermal fan to keep the fixture cool. -
Page 6: Setup
3. Repeat step 2 for each additional fixture up to 7 fixtures Mounting The Tri Flat is fitted with a Dual yoke that can be separated and used as a floor stand for use on flat & sturdy surfaces. For hanging the fixture to a lighting stand or trussing, simply attach a lighting clamp to the outer yoke, ensuring that the clamp is tightened to prevent unwanted movement. -
Page 7: Operation
Operation To access the menus and functions of the Tri Flat, use the four (4) buttons located under the main control screen. Button Label Function Menu Press to access main menu, or change function once the fixture is on Cycles upwards through the menu and options... -
Page 8: Dmx Channel
DMX Channels 3 CH Control 7 CH Control 1 CH 1 CH 0 - 255 2 CH Green 2 CH 0 - 255 Green 3 CH 0 - 255 Blue 3 CH Blue 4 CH 0 - 255 Dimmer 5 CH 0 - 255 Strobe (slow >...
