Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: SPKR-MM2.1-RV03-WL
1. Introduction

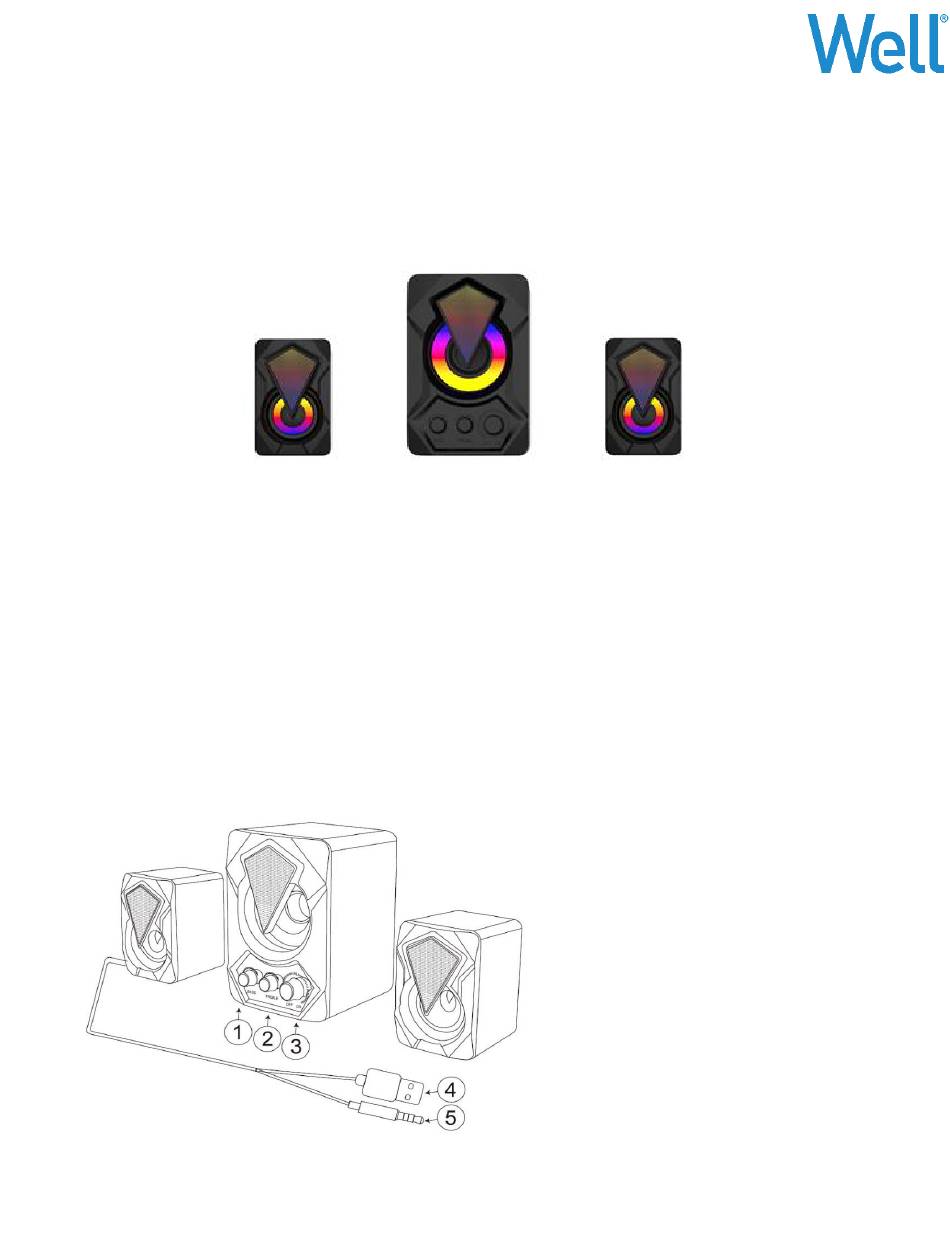

1.1 Overview of the device
INSTRUCTION MANUAL
SPEAKER SET 2.1
1.Bass knob
2.Treble knob
3.Power on/off and volume control
knob
4.USB plug
5.3.5 mm jack port
Advertisement
Related Manuals for Well SPKR-MM2.1-RV03-WL
Summary of Contents for Well SPKR-MM2.1-RV03-WL
- Page 1 INSTRUCTION MANUAL SPEAKER SET 2.1 Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: SPKR-MM2.1-RV03-WL 1. Introduction 1.1 Overview of the device 1.Bass knob 2.Treble knob 3.Power on/off and volume control knob 4.USB plug...
- Page 2 1.2 Features Techniques PMPO power: 33W Rated power: RMS 3W*2 + 5W (THD = 10%) Material: Plastic Channel: 2.1 Separation: ≥ 30dB Frequency response: 100Hz – 16kHz Connector: 3.5 mm jack (audio), USB (power) Power supply: DC 5V/1A RGB lights Weight: 740 g Size: 105x100x150 mm (subwoofer) 65x70x100 mm * 2 (speakers)
