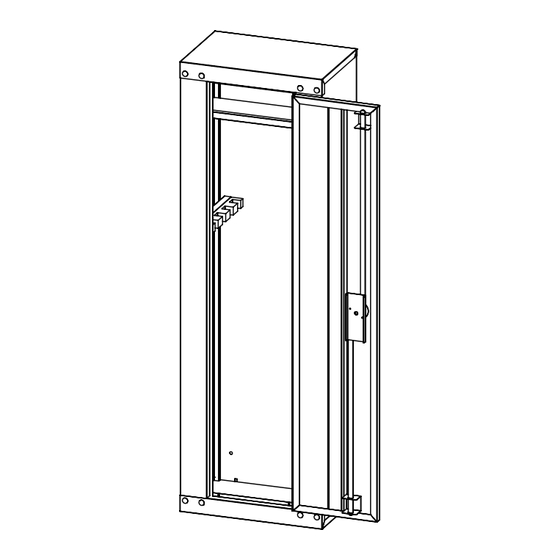

8-Gun Ready-to-assemble Cabinet
Assembly Instructions Product No. 175-9872-4
Tipping Hazard
A child or adult can tip the cabinet and be killed
or seriously injured.
Failure to secure the cabinet as shown in these instructions
can result in death or seriours injury to children and adults.
Children should not play with or around the cabinet
at any time.
190125
Advertisement
Summary of Contents for Yukon GEAR 175-9872-4
- Page 1 8-Gun Ready-to-assemble Cabinet Assembly Instructions Product No. 175-9872-4 Tipping Hazard A child or adult can tip the cabinet and be killed or seriously injured. Failure to secure the cabinet as shown in these instructions can result in death or seriours injury to children and adults. Children should not play with or around the cabinet at any time.
-
Page 2: Hardware List
Product No. 175-9872-4 HARDWARE LIST DOOR KEYS M5X10 BOLTS QUAKEPROOF PINS ① ② ③ QTY: 2 PCS QTY: 10 PCS QTY: 2 PCS WRENCH M6X11 RND M6X11 LCK ④ ⑤ ⑥ QTY: 1 PC QTY: 4 PCS QTY: 8 PCS WASHERS WOOD SCREWS ⑧... - Page 3 PARTS LIST BACK PANEL DOOR QTY: 1 PC QTY: 1 PC SHELF GUN REST QTY: 1 PC QTY: 2 PCS SHELF EVA BOTTOM EVA QTY: 1 PC QTY: 1 PC EVA:ethylene-vinyl acetate copolymer. 190125...
- Page 4 Product No. 175-9872-4 STEP STEP SIDE PANEL - RIGHT Ⅰ SIDE PANEL Make sure the holes - LEFT are aligned Ⅱ Make sure that the side panel Ⅱ is inserted into the gaps Ⅰ BOTTOM PANEL Assemble Side Panel-Right with Bottom Panel, Same as STEP 1, Assemble Side Panel-Left with Bottom Panel.
- Page 5 STEP STEP Ⅲ TOP PANEL BACK PANEL Ⅲ As shown, insert the Back Panel between the two sides until the top is aligned. Install the Top Panel onto the Side Panels and Back Panel.Please refer to the Bottom Panel for the position. A rubber mallet can be used to align the top flush with the Side and Back Panels.
- Page 6 Product No. 175-9872-4 STEP STEP DOOR M6X11 RND M6X11 LCK ④ ⑤ QTY: 4 PCS QTY: 8 PCS WRENCH ⑥ QTY: 1 PC ② M5X10 BOLTS Insert 8 pcs M6X11 LCK through front and loosely tighten QTY: 6 PCS washer & locknuts from insde using the wrench. Insert 4 pcs M6X11 RND through back and fully tighten washer &...
- Page 7 STEP STEP ⑦ ② WOOD SCREWS QTY: 4 PCS M5X10 BOLTS QTY: 4 PCS ⑧ WASHERS GUN REST QTY: 4 PCS Use the wood screws and washers to secure the cabinet to floor or wall. Install the gun rests with M5X10 bolts on both Side Panels. STEP SHELF EVA STEP...
