SMART WIRELESS
TRIPLE HEAD LED
FLOODLIGHT CAMERA
ES00941G
INSTALLATION INSTRUCTIONS
20210217
Packaging Design
T101P61Z01
File NO.:
20210145
Implement Confirmation
ES00937G
Sales Division
Design Division
10x15cm
Joe
Applicant
Designer
Amy
for all Items
Reading/Fanny
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Zone Security ES00941G
Summary of Contents for Home Zone Security ES00941G

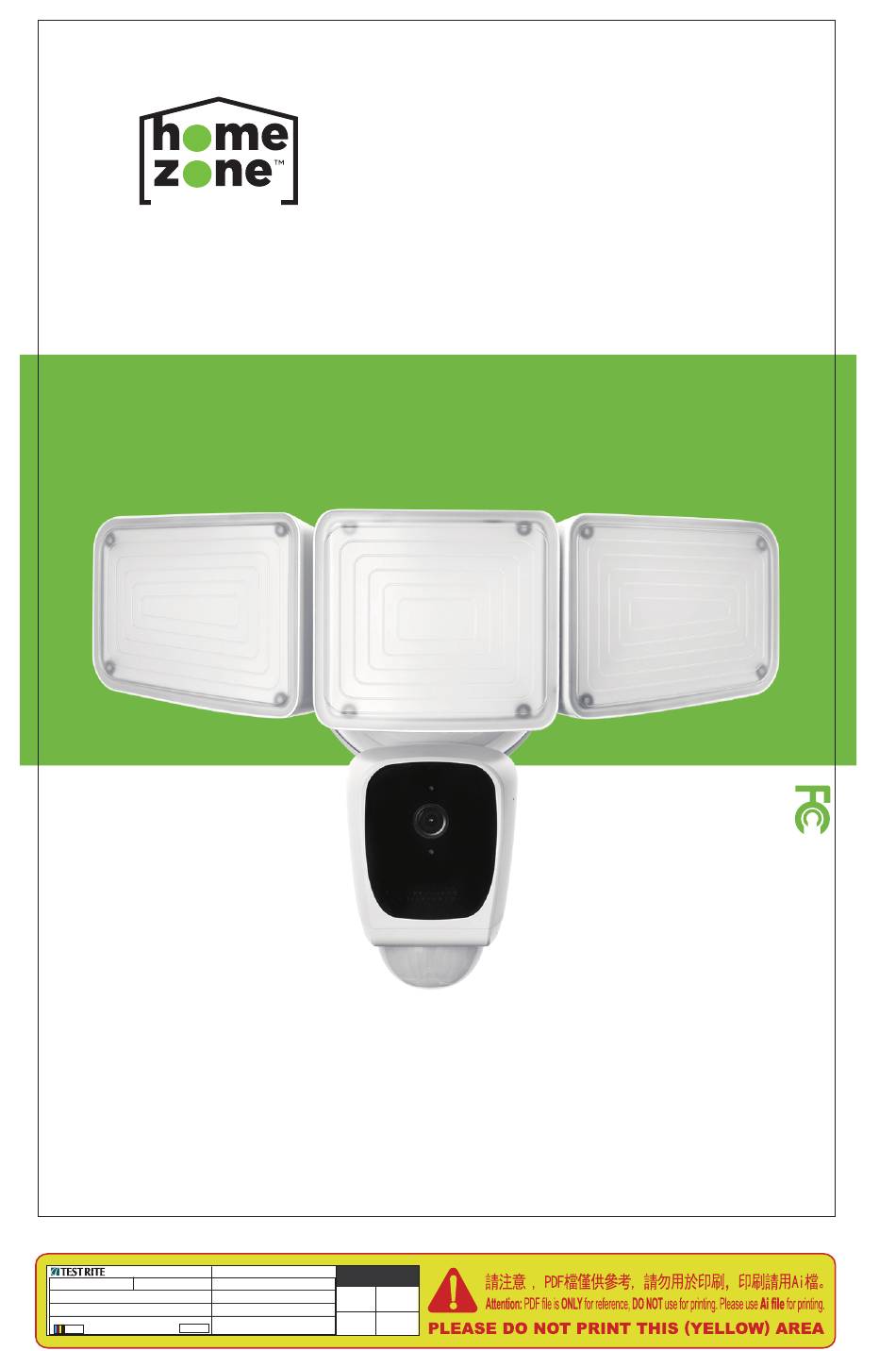

- Page 1 SMART WIRELESS TRIPLE HEAD LED FLOODLIGHT CAMERA s e c u r i t y ES00941G INSTALLATION INSTRUCTIONS the bright way to do home security. Division: 20210217 Packaging Design PDS 540 File Information T101P61Z01 File NO.: 20210145 Implement Confirmation Client:...
-
Page 2: What's In The Box

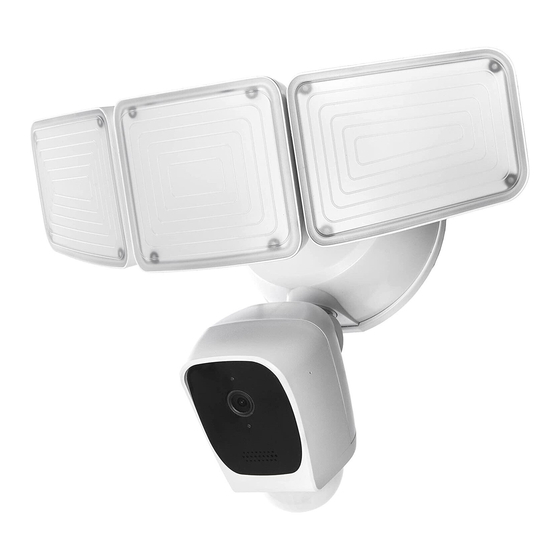

What's in the box Light fixture Mounting bar Rubber plug 2groups Mounting screw Wire nut Mounting bracket screw Parameter Illumination output: approx. 3500 lumens / 5000K Wattage: 40W Power source: AC120V/60Hz Detect range: up to 32feet, 270 degree Camera view angle: 150 degree... -
Page 3: Safety Instructions
Safety instructions 1. Please read all warning and instruction before attempting to install this light. 2. Disconnect power before installing or servicing. Warning Risk of Electrical Shock 1. Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply. 2. -
Page 4: Installation
Installation Install the mounting bar to the outlet box with the stamped word "FRONT" facing away from the outlet box, use two mounting screws that best fit the outlet box. (Choose one group of suitable mounting screws among two groups in the hardware pack) Note: For the best performance, install fixture at 5.9 feet ~11.5 feet (1.8~3.5m) above the ground. - Page 5 Connect the source wires from the outlet box with the wires of the back plate using wire nuts as follows: Connect the white wire to white wire Connect the black wire to black wire Connect the Green wire to the house ground wire Note: DO NOT connect electricity before installation and maintenance Place the back plate against the outlet box, insert the mounting...
- Page 6 Attached the light fixture to the back plate using the center mounting screw: • Tighten the center mounting screw securely through the center of the light fixture. Do not overtighten. • Push the rubber plug firmly into the center hole to cover the center mounting screw.
-
Page 7: How It Works
How it Works Adjusting the Lamp Heads and Camera 1. Swing the lamp heads to adjust the lamp head left and right or up and down to get the desired lamp direction. 2. Gently grasp the motion sensor and adjust the sensor left and right or up and down to get the desired sensor direction. - Page 8 Set up Router press and hold the Reset button located on the back of the camera head until a prompt sound is heard. The camera will initiate reset process and the indicator light will blink blue when ready for paring.
- Page 9 Alarm to deter intruders Note： Please visit website at www.homezonesecurity.com/home-zone-smart for cloud storage information.
-
Page 10: Cleaning And Maintenance
Cleaning and Maintenance 1. Clean periodically with soft cloth. 2. Do not use any cleaners with chemicals, solvents or harsh abrasives on this light. Do not use scouring pads, powders, steel wool or brasive paper. They could cause deterioration of the finish. -
Page 11: Why Register
• Get exclusive deals delivered to you email. Get exclusive offers and deals when you subscribe! Thank you for choosing Home Zone Security! We are here to support you every step of the way. Please be sure to contact our customer support for troubleshooting and register your product for additional benefits.
