Wind Speed Sensor for Si-RS485TC-2T-v
Short Description

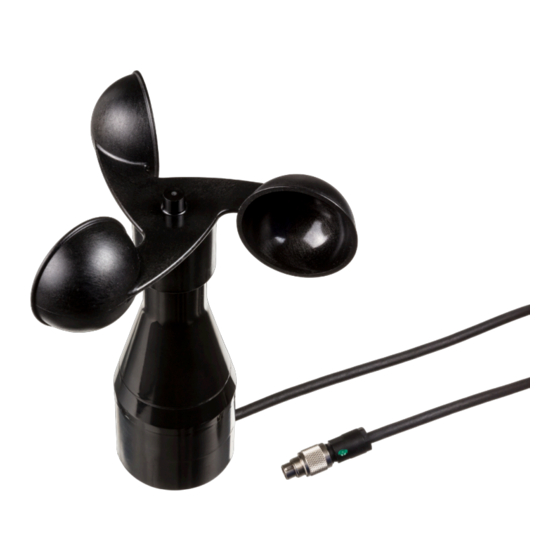

Our wind speed sensor Vwind-Imp comes equipped with a high-quality fibre-reinforced plastic cup star and
with a weatherproof cable. Thanks to the use of top quality components the sensors achieve high accuracy and
are ideal for use in field environments (PV plants).
Technical Data
Type
Sensor Type
Signal
Measurement Range
Measurement Uncertainty
Pin Assignment
Connector
Weight
Size (without Holder)
Protection Level
Operating Condition
Sensor Cable
Customs Number
Ingenieurbüro Mencke & Tegtmeyer GmbH
Tel. +49-5151-403699-0
Vwind-Si
Length: 5 m, PUR coated, shielded (LiYC11Y, 4 x 0.14 mm²)
●
Schwarzer Weg 43A
●
Fax: +49-5151-403699-19
Vwind-Si
Cup Star Anemometer
Reed-Relais, 2.5 Hz/(m/s)
0.9 to 40 m/s (60 m/s for short time)
0.5 m/s or 5% of Value
Pin 1: Reed-Relais
Pin 2: Reed-Relais
Binder, Series 712
Approx. 350 g
Ø 134 x 160 mm
IP 54
-25 to +60°C (without icing)
90158020
●
31789 Hameln
●
www.ib-mut.de
●
info@ib-mut.de
●
Germany
Advertisement
Table of Contents
Related Manuals for Ingenieurbüro Mencke & Tegtmeyer Vwind-Si
Summary of Contents for Ingenieurbüro Mencke & Tegtmeyer Vwind-Si
- Page 1 Vwind-Si Wind Speed Sensor for Si-RS485TC-2T-v Short Description Our wind speed sensor Vwind-Imp comes equipped with a high-quality fibre-reinforced plastic cup star and with a weatherproof cable. Thanks to the use of top quality components the sensors achieve high accuracy and are ideal for use in field environments (PV plants).
- Page 2 This sensor is designed for connecting to the Si- sensor type Si-RS485TC-2T-v. For connecting, remove the protection cab of the 2-pole socket of the Si-RS485TC-2T-v and connect the Vwind-Si. To lock the cable connector, the threaded ring is tightened until it is ‘finger-tight’ (approx. 50 Ncm).
