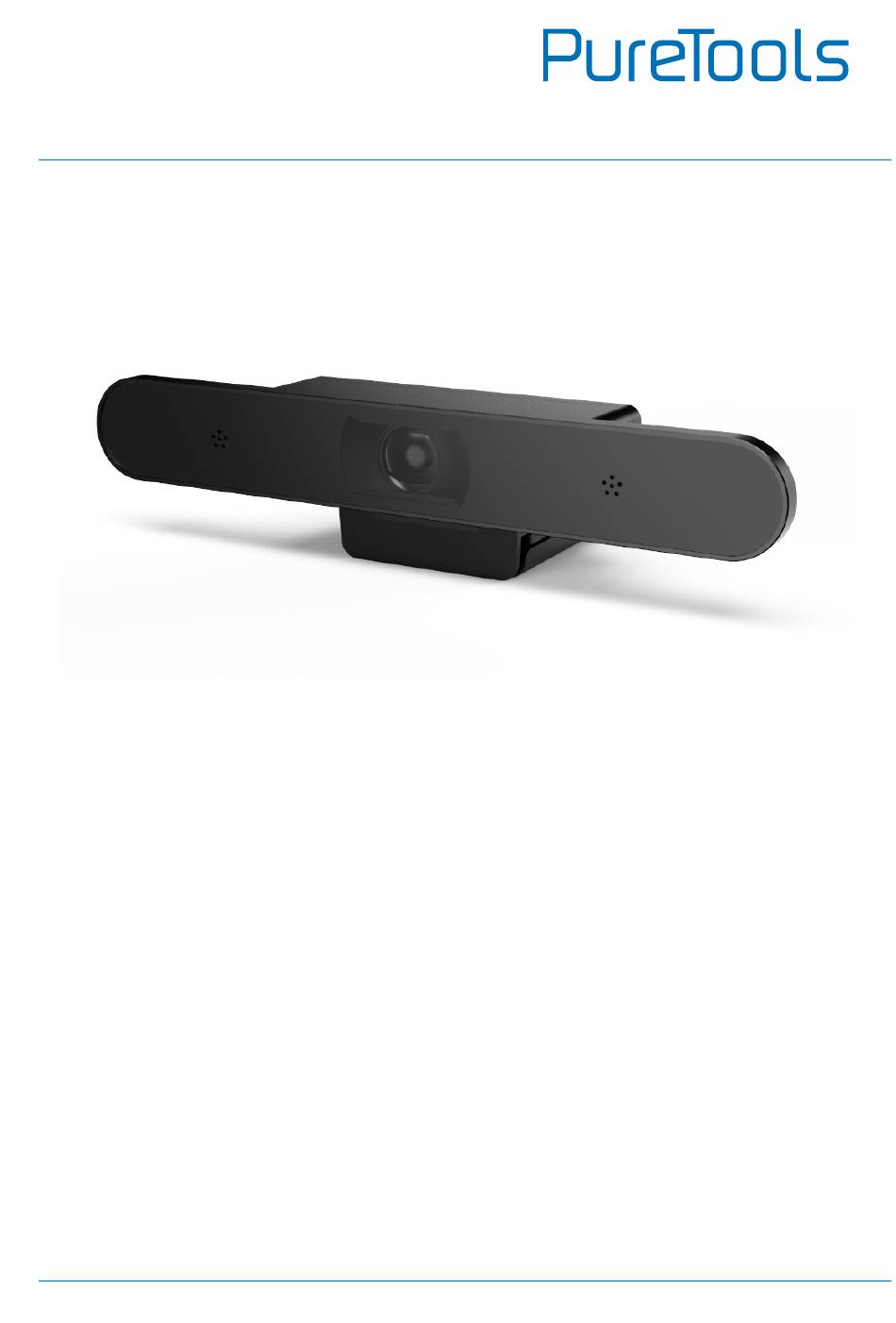

- Page 1 PT-CAM-200 User Manual V1.0 User Manual 4K Wide-angle ePTZ Conference Camera Model PT-CAM-200 Designed in Germany © 2021 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
PT-CAM-200 User Manual V1.0 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-CAM-200 User Manual V1.0 ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-CAM-200 complies with Directives 2020/171/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-CAM- 200 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
PT-CAM-200 User Manual V1.0 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. - Page 5 PT-CAM-200 User Manual V1.0 INTRODUCTION PureTools - 4K ePTZ Conference Camera with stereo mic and autoframing, helps to achieve an intelligent meeting experience, implemented with intelligent video analysis and ePTZ technology. It automatically frames all meeting participants, enabling meeting attendees to focus more on discussion and not worry about camera operation.
-
Page 6: Package Contents
User Manual V1.0 PACKAGE CONTENTS Please ensure you have all the items listed below. If anything is missing or damaged, please contact your distributor for a replacement. 1 x PT-CAM-200 1 x Remote Control 1 x 1.8m USB3.2 Cable 1 x Quick Installation Guide ... -
Page 7: Remote Control
PT-CAM-200 User Manual V1.0 REMOTE CONTROL Number Function 1. Power Turns the camera feed off or on 2. Menu Open/close the OSD menu 3. Zoom zoom in, zoom out In menu mode, set menu options In non-menu mode, use for vertical adjustment 4. -
Page 8: Common Functions
PT-CAM-200 User Manual V1.0 COMMON FUNCTIONS When the camera is in a working state, the indicator light is blue and always on. 1) EPTZ The camera supports EPTZ control, and 4x digital zoom. The image can be controlled via direction keys to adjust the image position. And the current image size can be adjusted via zoom button. - Page 9 PT-CAM-200 User Manual V1.0 OSD MENU Press the menu button and choose the parameters you want to adjust. Image Auto Frame: When choosing “ON”, the camera will be zoom in/out to center all participants in the picture, according to the conference scene.
- Page 10 PT-CAM-200 User Manual V1.0 Sharpness: Adjust the sharpness of image and image edge sharpness. The higher this number is, the more contrast the detail in the plane of the image will be, making it look clearer. Gamma: Adjust the brightness value of the image, the lower the gamma value, the brighter the image.
- Page 11 PT-CAM-200 User Manual V1.0 Device Info IR Address: The IR remote address. Firm Version: The camera firmware version. Defaults Defaults: Restore menu parameters to default state.
-
Page 12: Size And Dimensions
PT-CAM-200 User Manual V1.0 Size and Dimensions Font Side Bottom Installation Instructions Place the camera holder on the display and fix it by adjusting the folding arm at the rear. Alternatively fix it with the mounting screw. For best results using the wide angled lens, participants do not need to be seated close to the camera. -
Page 13: Specification
PT-CAM-200 User Manual V1.0 SPECIFICATION Interface Output Output Connector Type-C 1xUSB3.2 Video YUY2, NV12: 1920x1080P30, 1280x720P30, 640x360P30 1920x1080P25, 1280x720P25, 640x360P25 Video Format MJPEG, H264, H265: 3840x2160P30, 1920x1080P30, 1280x720P30, 640x360P30 3840x2160P25, 1920x1080P25, 1280x720P25, 640x360P25 Max Resolution 3840×2160@30fps Digital Zoom Field of View Diagonal：120°, Horizontal：110°, Vertical：87°... -
Page 14: Simple Troubleshooting
• Connect a USB cable between a PC and the PT-CAM-200. Open the software • UVC Camera on PC, select the correct device on the software, select the firmware, then click upgrade to finish the upgrading. -
Page 15: After Sales Service
PT-CAM-200 User Manual V1.0 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for 3 year (The purchase invoice shall prevail). -
Page 16: Asking For Assistance
PT-CAM-200 User Manual V1.0 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
