Summary of Contents for SMAR RHP303

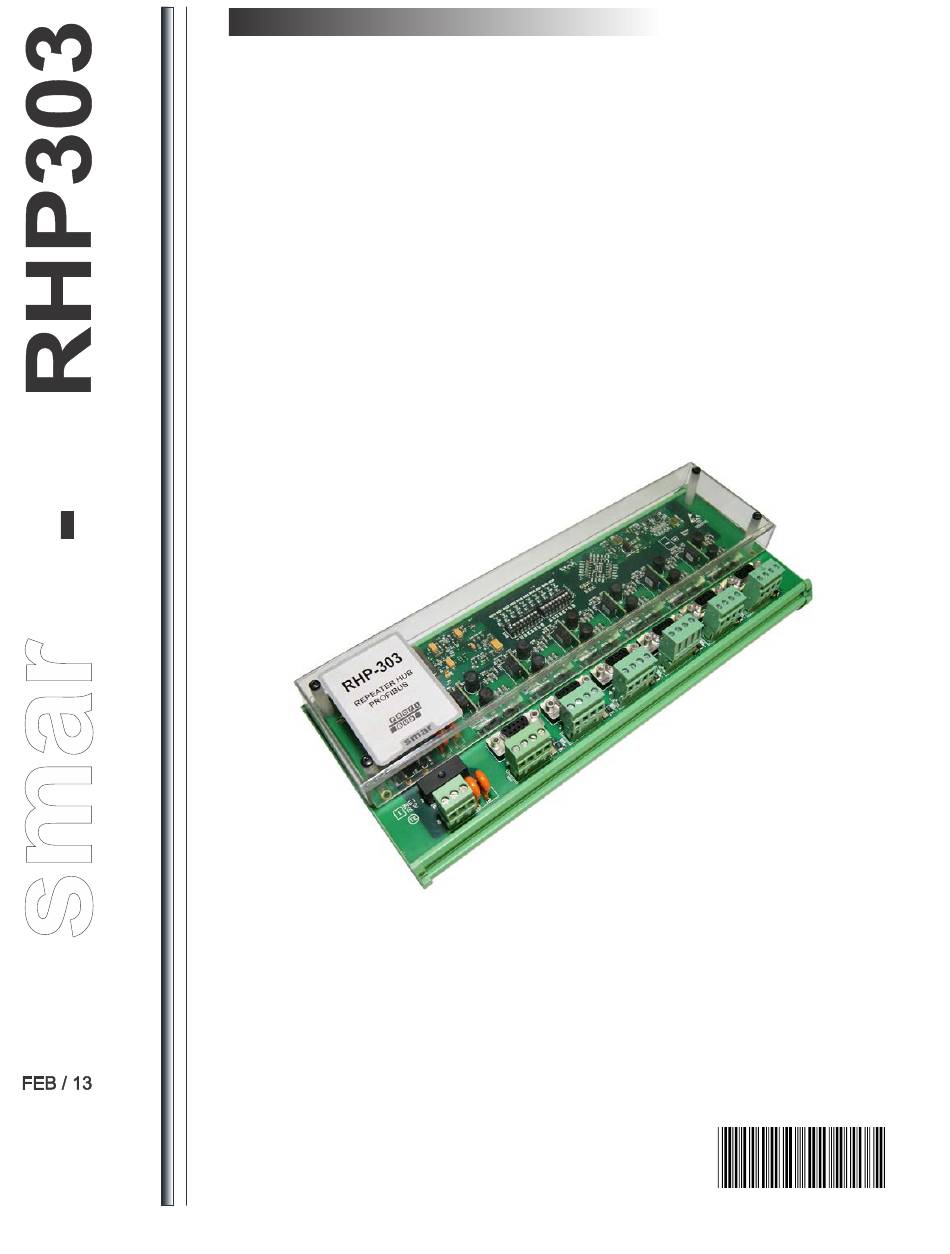

- Page 1 USER´S MANUAL PROFIBUS HUB REPEATER RHP303 R H P 3 0 3 M E...
- Page 2 Specifications and information are subject to change without notice. Up-to-date address information is available on our website. web: www.smar.com/contactus.asp...
- Page 3 To ensure that our products are safe and without risk to health, read the manual carefully prior to installation. Installation, operation, maintenance and repair should only be performed by trained personnel and according to the User Manual. Updated information about the Smar products can be obtained directly on http://www.smar.com...
-
Page 4: Main Features
31 devices and a length equal to the main bus. The RHP303 regenerates the electric signal in one channel and transfers it to all the others (chicken foot topology). -
Page 5: Areas Of Application
1200m per segment. Figure 2 – General application Profibus DP networks can be expanded in tree or star topology, without limits for RHP303 in cascade. See the next figure. -
Page 6: Profibus Dp Cable Lengths
RHP303 –Profibus Hub Repeater Figure 3 – Expansion of Profibus DP networks The RHP303 increases the network availability by filtering EMI noises so that one channel does not interfere with the other or with the main trunk. Figure 4 – Insulation between areas... - Page 7 RHP303 – User’s Manual Baud Rate LEDs The BD0 to BD9 LEDs blink in yellow to indicate the baud rate used by the Profibus DP Repeater according to the next figure. The baud rate will be the same for every channel.
-
Page 8: Installation
The RHP303 can be installed anywhere in a non-hazardous area and on the specified temperature range of 0 to 60ºC. The RHP303 must be installed on DIN rail, with the connector cable on the bottom part. In this position the cables go down and it is also easier to read the status LEDs. -
Page 9: Power Supply
PROFIBUS Engineer certificate. Power supply The power supply connector, a 3-pin terminal block, is located on the RHP303 lower left corner. The power supply must comply with the Technical Specifications topic. Figure 9 – Detail of the power supply connector... -
Page 10: Baud Rate Configuration
Terminators All RHP303 channels have configurable terminators. The main channel termination is adjusted in OFF by default. If the RHP303 is the last or the first segment device, the termination must be adjusted in ON. The termination of the other channels is adjusted in ON by default because the new segment is expected to be initiated on the RHP303. -
Page 11: Technical Specifications
RHP303 – User’s Manual BAUD RATE SW1.1 SW1.2 SW1.3 SW1.4 SW1.5 SW1.6 SW1.7 SW1.8 AUTO 9.6 Kbps 19.2 Kbps 45.45 Kbps 93.75 Kbps 187.5 Kbps 500 Kbps 1.5 Mbps 3.0 Mbps 6.0 Mbps 12 Mbps Note: The “X” on the table means “The switch position is irrelevant”. -
Page 12: Dimensional Drawings
RHP303 –Profibus Hub Repeater Spare part components SPARE COMPONENTS LIST COMPONENTS DESCRIPTION CÓDE 5 x 20 mm Fuse – 500 mA (package with 10 pieces) 400-1241 Dimensional Drawings The sizes are in millimeters and in brackets for inches. (5.43) (5.43) (11.65) - Page 13 RHP303 – User’s Manual...
- Page 14 RHP303 –Profibus Hub Repeater...
-
Page 15: Srf - Service Request Form
Appendix SRF – SERVICE REQUEST FORM Proposal Nº: RHP303 – Profibus Hub Repeater COMPANY INFORMATION Company: _____________________________________________________________________________________________________ Unit: ________________________________________________________________________________________________________ Invoice: _______________________________________________________________________________________________________ COMMERCIAL CONTACT Full Name: ____________________________________________________________________________________________________ Phone: _________ _________________________ _________ _________________________ Fax: _______________________ E-mail: _______________________________________________________________________________________________________ TECHNICAL CONTACT Full Name: ________________________________________________________________________________________________... - Page 16 RHP303 – Profibus Hub Repeater...
