3x3 Pop Up Gazebo with Side Panels Waterproof
Assembly Instructions
Dimensions
Width - 300cm
Depth - 300cm
Height - 255cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
- Please keep for future reference
Important: This Gazebo Must be opened, erected
and dismantled by 2 people at least
Important: Make sure all the guy ropes and pegs
are used, otherwise the gazebo will be unstable!
651/0037
Issue 1 - 13/09/13
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Argos 651/0037

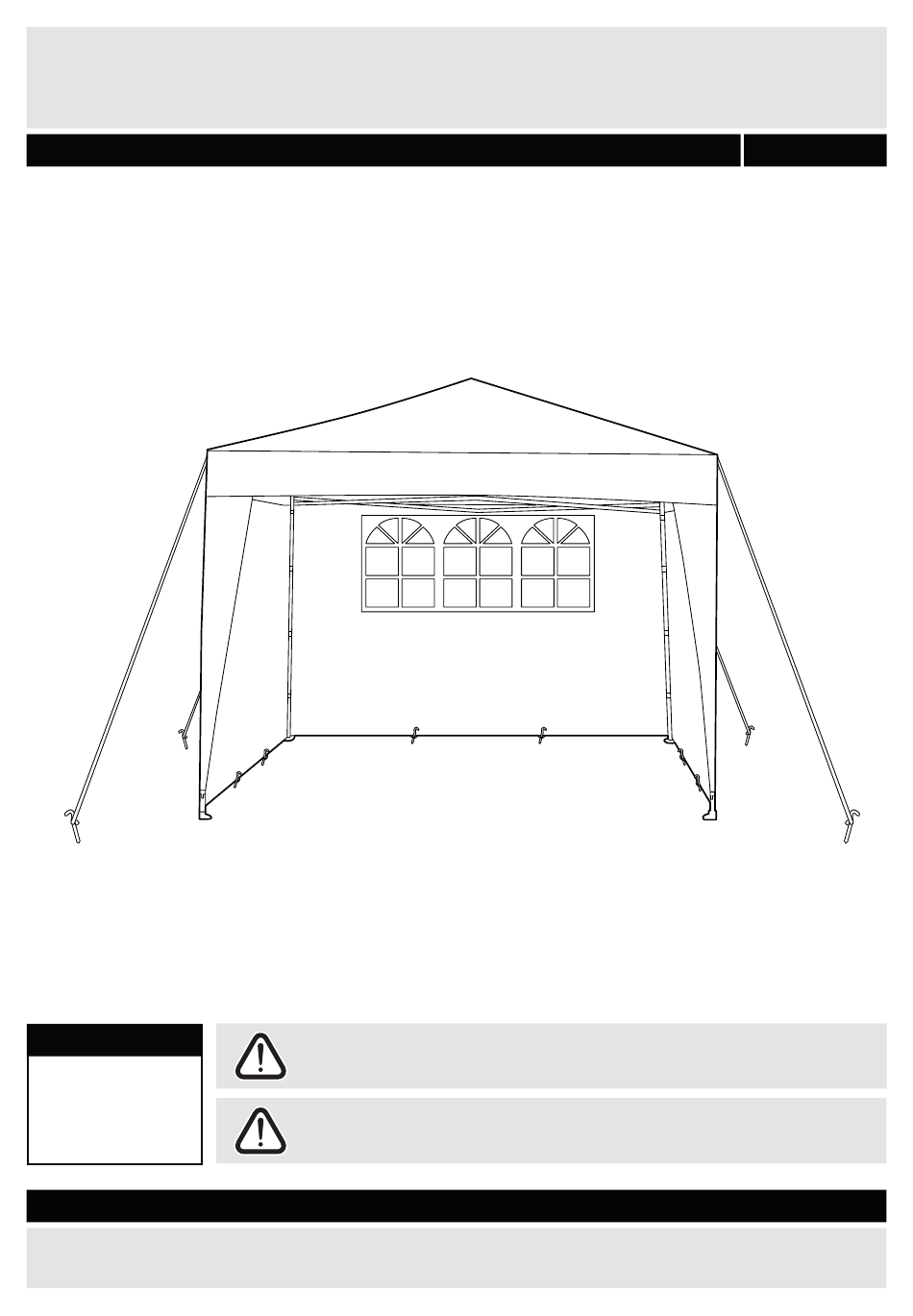

- Page 1 3x3 Pop Up Gazebo with Side Panels Waterproof Assembly Instructions - Please keep for future reference 651/0037 Important: This Gazebo Must be opened, erected Dimensions and dismantled by 2 people at least Width - 300cm Depth - 300cm Important: Make sure all the guy ropes and pegs...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly The unit weights approximately 15.5 kgs. Please lift with care. Fire precautions and safety Care and storage...
- Page 3 Components - Parts & Fittings If you have damaged or missing components, call the Customer Helpine: 0845 640 0800 Please check you have all the parts & fittings listed below Tent bag x 1 Gazebo x 1 Back panel x 1 Side panel x 2 Peg x 14 Guy rope x 4...
- Page 4 Assembly Instructions Step 1 Opening the Gazebo Note: At least 2 people are required for this procedure. a & b: Stand the Gazebo upright. With people at diagonally opposite corners, carefully pull the Gazebo partly open. Move to each side, carefully pulling the frame apart until it has expanded as shown in diagram b.
- Page 5 Assembly Instructions Step 2 Locking and extending the Gazebo frame Note: At least 2 people are required for this procedure. a: In one corner at a time, lock the Gazebo frame in position by sliding the corner bracket up until the spring clip engages Spring clip into the bracket.
- Page 6 Assembly Instructions Step 3 Fitting the legs a: Secure the gazebo to the ground at each corner, Insert two pegs through the hole in each Frame leg into the ground (insert at an angle). Take care not to bend the pegs, use a rubber mallet to help Insert if required.
- Page 7 Assembly Instructions Step 5 Assembly Instrctions Fitting the sides Note:At least 2 people are Required for this procedure. a: Use the Velcro tapes on the Back and side panels & To secure the panels onto the frame work. Note: each velcro tap frame are as shown.
-
Page 8: Folding Instructions
, please remove the side panels If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Retailer: Argos Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW...
