WRP Wireless Repeater
The WRP is a FastLink technology wireless repeater for the FORCE Series and VISION intruder alarm systems. The WRP is designed to
extend the range and signal quality of PIMA's wireless detectors and peripherals. The repeater can be used to remedy transmission
problems caused by excessive noise or other interference, or by long distances between the peripherals and the control panel.
The WRP is powered by a power supply and is backed up by rechargeable 18650, 3.6V, Lithium-ion batteries.
The WRP can alert on jamming and has a back tamper switch. For enrollment information, see the alarm system's Programming guide
(P/N 4410526).
Cautions: the WRP is based on wireless (RF) transmissions. Any wireless transmission can be
subject to RF interference and, although unlikely, this interference may cause the WRP to not
operate as intended. RF transmissions will be attenuated by tinted glass, in wall isolation with
metal foils, metal objects, etc.
Technical specifications
 Frequency (MHz):
WRP143: 433.92
o
WRP187: 868.95
o
 Backup battery: 1X 18650,
3.6V, Lithium-ion
Content of the product package
 WRP Repeater
Warnings
 Use only the provided power supply. Use of unauthorized power supply may damage the WRP.
 The WRP does not have mains on/off switch. Make sure that the access to the mains outlet is never obstructed.
 Do not use extension cords to plug in the power supply.
 Do not connect the repeater to electrical outlets on the same circuit as large appliances.
 Do not connect the repeater to electrical outlets controlled by wall switches or automatic timers.
 Do not mount the repeater inside a metal enclosure or on metalized wallpaper.

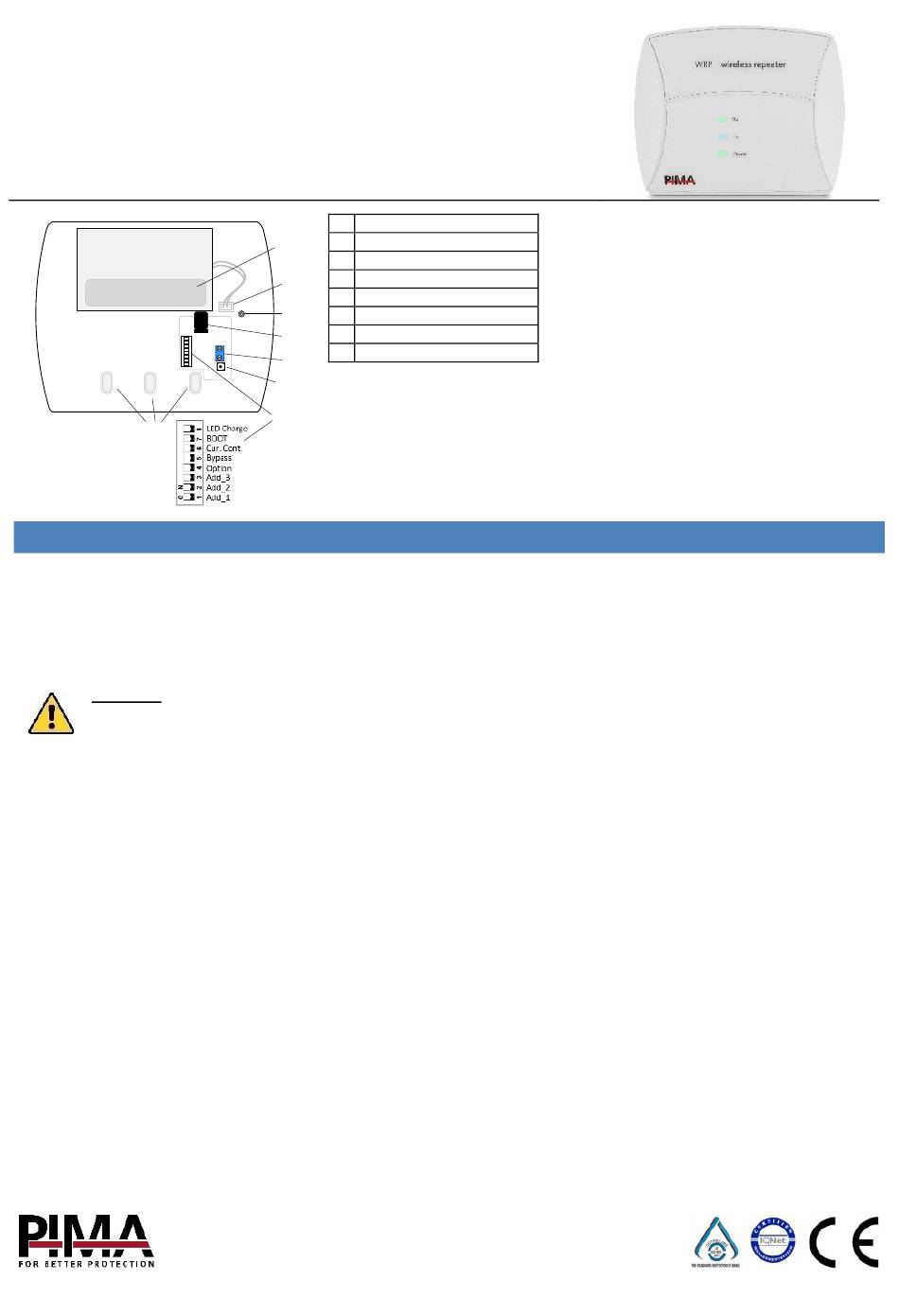

1 Walls or metal may reduce actual operating range
1 Backup Battery
2 Battery Connector
1
3 Tamper switch
4 Power Supply Connector
2
5 Power Supply Terminals
3 6 Test/Enrollment Button
7 Settings DIP Switches
4
8 Mounting Holes
(+)
Ext.Power
5
(-)
6
7
 Battery backup time: up to 24 hours
 Wireless range: up to 500m in open space
 Power Supply:
Input: 100-240V
o
Output: 12VDC, 1А
o
 Power Supply
 Dimensions: 15 X 12 X 3 cm
1  Weight: 245gr
 CE compliance
 Operating temperature: -10 to +50 °C
 Humidity (max.): 93% R.H., Non-condensing.
 This guide
