AMX PHAST PLL-SW10 User Manual

User Guide
Model PLL-SW10 Light Switch

Description

The PLL-SW10 is a solid state, microprocessor-controlled switch.
Before the network is applied, the PLL-SW10 can control the load
with a default feature set.
If the button is pressed and released, the PLL-SW10 will
automatically switch to its on or off state.
By default, the LED on the button of the PLL-SW10 is off when
the load is off, and is on when the load is on.
When the PLL-SW10 is connected to the PHASTLink network,
the following features are available for programming:
•
LED Brightness and On/Off State
•
Continuous Load Level Feedback
•
Network-Controlled Scenes
•
Push-and-Hold Delay
•
Detachable Button (push/hold/release)

Electrical Specifications

•
Max Load 600 Watts
•
Load Type Incandescent

Junction Box Requirements

Box Dimensions (inches)
3 x 2 x 2 1/2
3 x 2 x 3 1/4
3 x 2 x 3 1/2

Installation

To reduce the risk of serious injury or death, turn all power off before installing this equipment.
PHAST lighting products generate heat. They should only be installed in room-temperature
(approx. 77°F, 25°C) indoor environments. Installing these products in attics, closets, or other
confined areas with inadequate ventilation or heat dissipation ability has the potential to cause
overheating and a possible fire hazard, and will void the warranty.
1. Connect the black (hot) wire to the line voltage (see Figure 2).
2. Connect the white (common) wire to neutral (see Figure 2).
3. Connect the red wire to the load (see Figure 2).
4. Connect the green wire to the ground.
5. The blue wire is a low-voltage tap to connect up to seven PHAST PLL-3WAY switches (see
Figure 2).
Page 1 of 3
•
•
Maximum Number of Conductors
Min. Cu. In. No. 18 No. 16
Capacity
12.5 8 7
14.8 9 8
18.0 12 10
WARNING! DANGEROUS VOLTAGE!
WARNING!
08/07/00

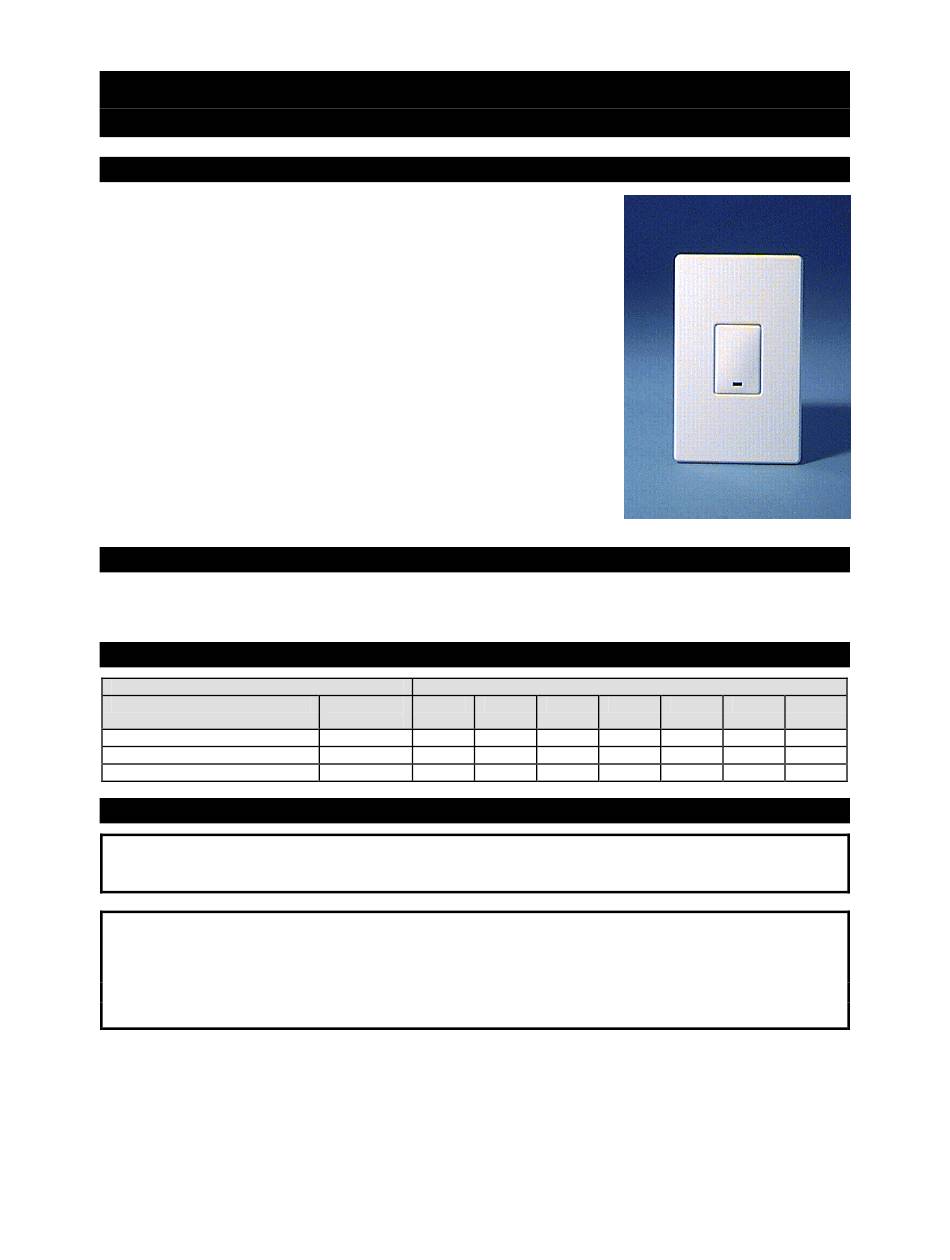

Figure 1 - PLL-SW10
Supply 120 VAC, 60 Hz
Interface PHASTLink
No. 14 No. 12 No. 10
6 5 5
7 6 5
9 8 7
No. 8 No. 6
4 2
4 2
6 3
Rev. B
