Restmoment RX-2703 along with Restmoment RX-2700XP Conference
Introduction
The system controller is the core component of conference system, which is the important
intercommunication factor between units and PC management software modules. It controls all the conference
functions via the navigation keyboard and 2.8 inch LCD screen on the front panel.
3.1.1 Function and Feature
Restmoment original conference technique, compliant to IEC60914.
Control all the conference functions by navigation keyboard on front panel
Adopt high speed RISC Embedded hardware structure, more reliable, faster.
Adopt digital audio transmission technique, close to CD sound quality.
2.8 Inch LCD, Chinese and English menu, could order any language.
Built-in input/out volume adjustment.
Built-in 8X8 video matrix switcher, it can manage multipath video signs easily.
Built-in 8X4 overall view video switching, time and order can setup freely.
Original U disk and SD card recording function, can record the whole meeting in real-time.
Users can control the starting and ending of recording, even change the setup of recording.
MP3 recorder can record audio signal from external device automatically as soon as it coming.
Exchanging function between MP3 recording and SD card. Users can change SD card during speaking. And it will not
loose the content or audio.
Recording will be kept on SD card
After recording, user can choose listening or replay.
It has monitoring earphone jack on front panel.
System can support 80pcs chairman units simultaneously and appoint one as executive chairman.
MIC management modes
～
Limited mode: 1
6 pcs units can be opened simultaneously
FIFO mode: the last opened MIC covers the first opened MIC.
Apply mode: executive chairman can approve or reject the speaking.
Voice activating mode
Free discussion mode: allow all the units to be opened simultaneously
6 channels output ports, which can connect 180pcs units.
Many connecting modes, including "Hand in hand on one line", "Hand in hand by splitter" and " Hand in hand in ring
Microphone System

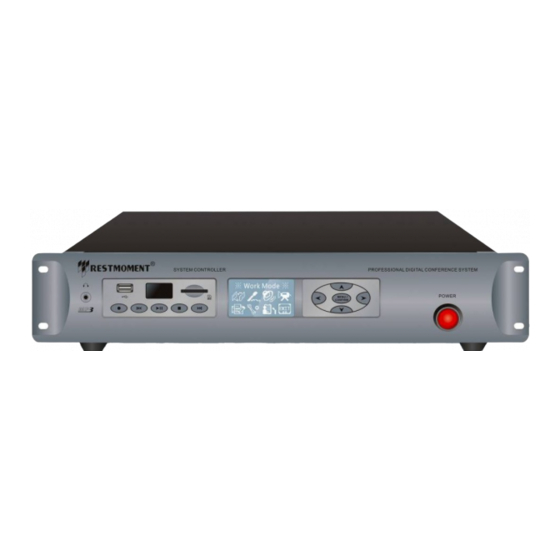

Figure 3.1 Main Controller RX-M2703XP
