Summary of Contents for Futrex FUTREX-6100
- Page 1 FUTREX-6100 Owner’s Manual Revision: 6.0 Revision Date: January 20, 2020 Futrex Spotcheck, Inc. 130 WESTERN MARYLAND PARKWAY HAGERSTOWN, MD 21740 1-301-733-9368 • FAX: 1-301-733-4660 • E-mail: info@futrex.com...
-
Page 2: Table Of Contents
Setting Up the FUTREX-6100………….……...………………….……………….………Page 7 Body Fat Measuring Procedure in ‘Stand-Alone’ Mode…………………………..Pages 8 – 9 Locating the Biceps Measuring Site……………………………………..………………..Page 9 Futrex Connect Advanced Software……………………………………………………..Page 10 Admin Functions on the Stand-Alone FUTREX-6100……………...…………….Pages 10 – 12 General Specifications……………………………………………………………………Page 13 Troubleshooting…………………………………………………………………………..Page 14 FCC Statement……………………………………………………………………………Page 15... -
Page 3: Safety Information
Self-diagnosis and treatment using measurement results may be dangerous. Follow the instructions of a licensed healthcare provider. The FUTREX-6100 is not intended to be a diagnostic device and is for screening purposes only. Read all of the information in the Owner’s Manual before operating the device. -
Page 4: Warranty Information
Warranty Information The following warranty card is included with your FUTREX-6100. Please read the card and return it to Futrex. Support is available by calling 301-733-9368 or E-Mailing service@Futrex.com. -
Page 5: Cleaning And Maintaining The Futrex-6100
Cleaning and Maintaining the FUTREX-6100 If you desire to clean the FUTREX-6100 it is important that you either use a damp soft cloth or alcohol wipes. In the event that harmful materials are used for cleaning, damaged equipment will not be serviced without charges regardless of the warranty period. -

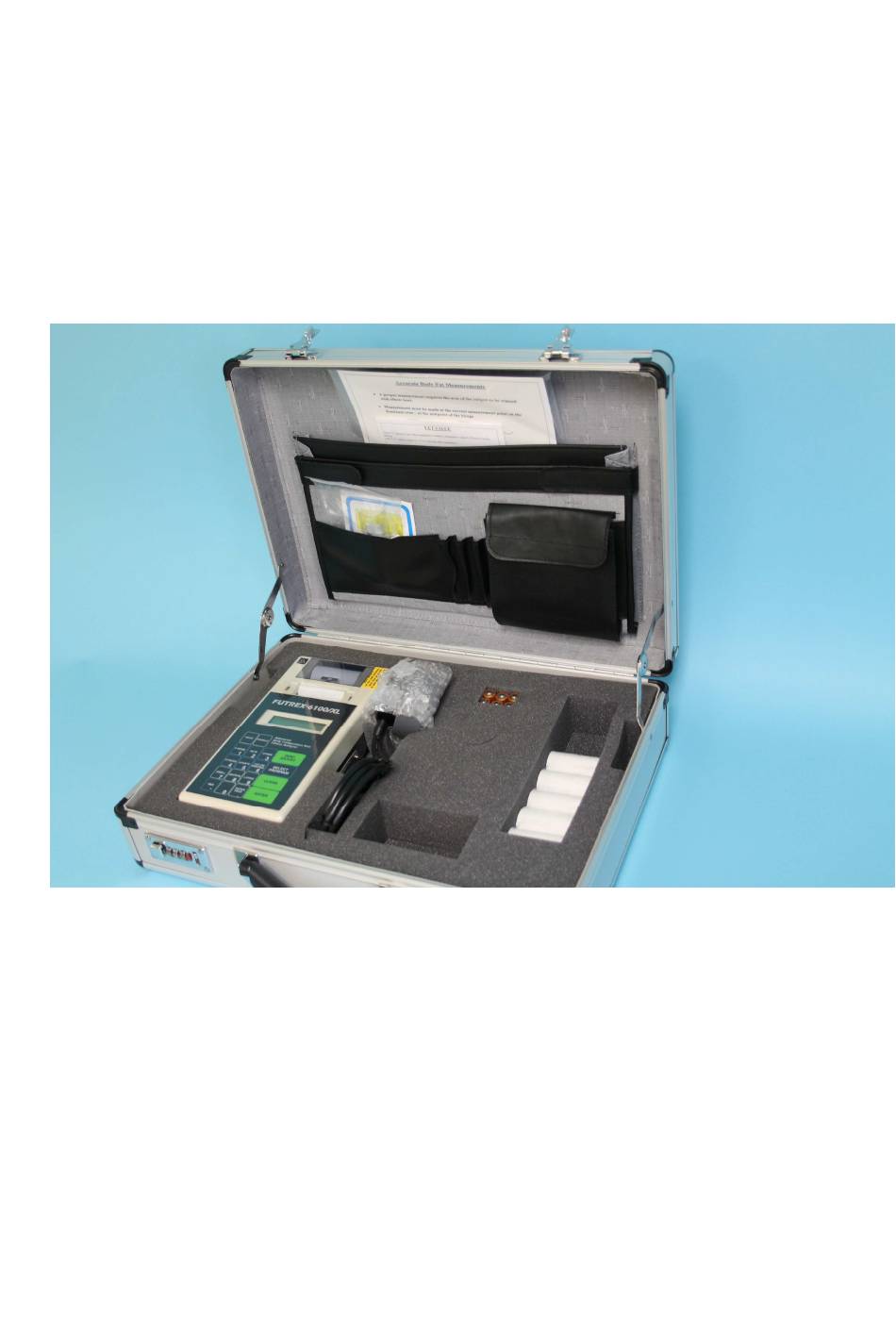

Page 6: Appearance And Part Names
Appearance and Part Names The FUTREX-6100 consists of the following items: 2. Light Wand 1. Main Device Chasis / Interface Box 3. FUTREX-6100 Software 4. AC Adapter 5. Optical Standard 6. Light Shield 7. USB Cable 8. Biceps Locator 9. Fitness Wheel... -
Page 7: Setting Up The Futrex-6100
Setting Up the FUTREX-6100 Once you have verified that all of the components of the FUTREX-6100 have been included in the box, the following steps should be taken to setup the instrument. Ensure you have sufficient table space to complete the assembly. -
Page 8: Body Fat Measuring Procedure In 'Stand-Alone' Mode
Body Fat Measuring Procedure in ‘Stand-Alone’ Mode 1. Turn Power Switch ON. The display will read "FUTREX-6100/XL", followed by the software identification number, then "Advanced Body Composition Analyzer". 2. The FUTREX-6100/XL must be Zero Adjusted. a. Insert Light Wand into Optical Standard. -
Page 9: Locating The Biceps Measuring Site
4. Using a highlighter, place a line on the side of the arm adjacent to the Biceps Locator. This is the site where FUTREX-6100/XL measurements should always be made. Figure 4 – Biceps Locator... -
Page 10: Futrex Connect Advanced Software
The Futrex Connect software provided with your FUTREX-6100 software allows you to connect the FUTREX-6100 to a Windows PC via the USB port on the instrument to store clients, view graphs with changes over time, see full two page color reports, and other features. - Page 11 SELECT PROGRAM pushbutton. d. Then press CLEAR. e. The display will read "READY". The FUTREX-6100/XL is ready to measure. F7 – Host Mode / Stand Alone Mode For complete instructions on toggling between Host Mode and Stand Alone mode, reference the “Instructions for Host Mode”...
- Page 12 Please set-up your Futrex Connect software NOW, using the supplemental Instructions for Use and USB drive included with your FUTREX-6100. It will give you the ability to save clients to a database, track changes in results over time, and print/e-mail two-page PDF reports, like the samples below.
-
Page 13: General Specifications
Power Source 9V DC Power Supply Warranty 1 Year Parts and Labor Warranty. Extended warranties available by contacting Futrex Service at 301-733-9368 • Operating System: Windows XP or newer • Available RAM: 128 mb • Available Hard Drive Space: 128 mb Minimum PC Requirements •... -
Page 14: Troubleshooting
Select the appropriate printer. The results pages will The PC operating the Ensure that the internet connection is not E-Mail. FUTREX-6100 has no working and the PC operating the internet connection. FUTREX-6100 is connected to the correct network. -
Page 15: Fcc Statement
FCC Statement Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 16 Futrex Spotcheck, Inc. 130 WESTERN MARYLAND PARKWAY HAGERSTOWN, MD 21740 1-301-733-9368 • FAX: 1-301-733-4660 • E-mail: info@futrex.com...
