Summary of Contents for PureTools PT-C-HDEARC-4K

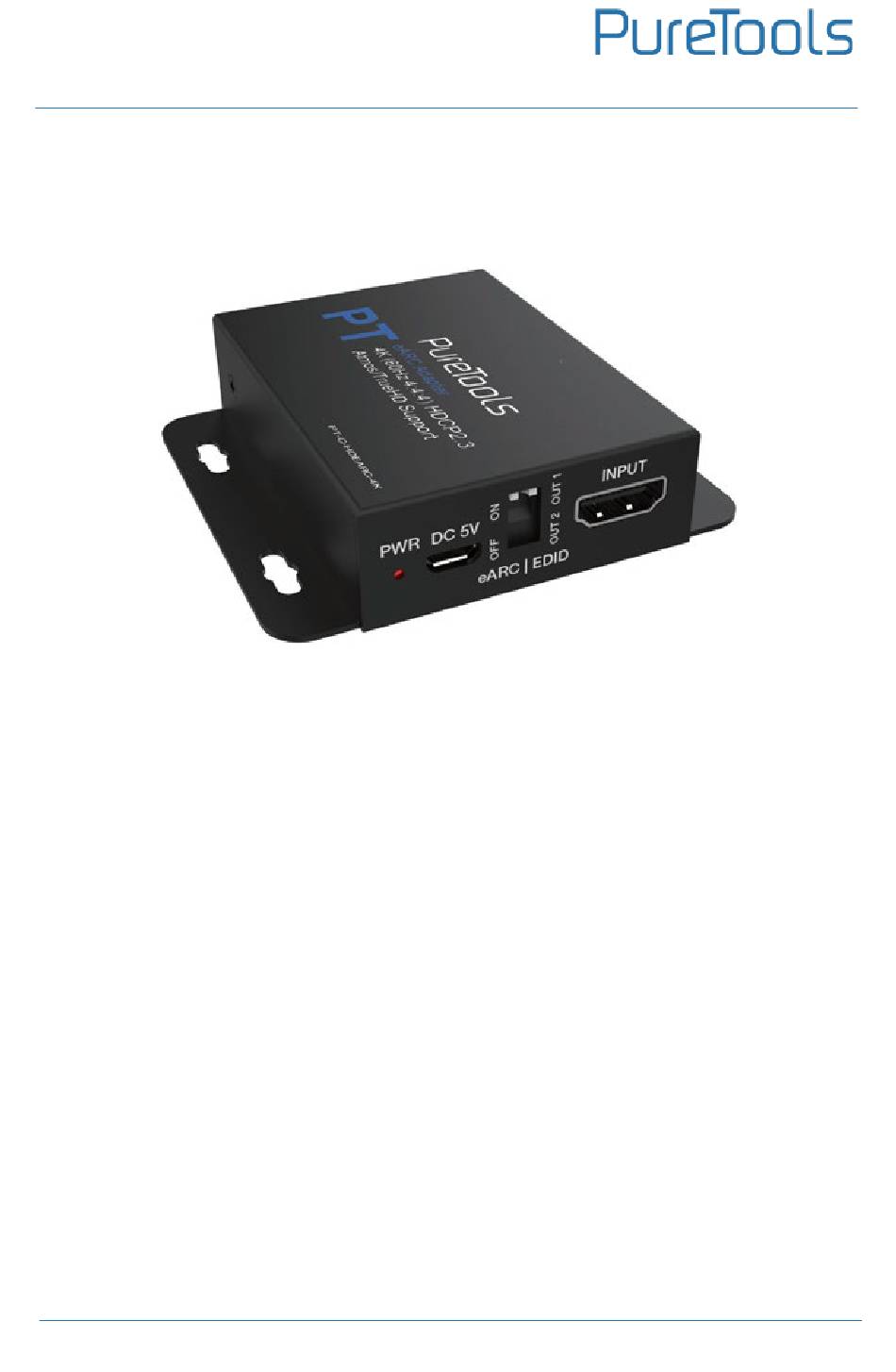

- Page 1 User Manual PT-C-HDEARC-4K User Manual 18Gbps HDMI eARC Extractor Model PT-C-HDEARC-4K Designed in Germany © 2021 PureLink GmbH all rights reserved. V1.0...
- Page 2 User Manual PT-C-HDEARC-4K Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 REACH | 2020/171/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDEARC-4K complies with Directives 2020/171/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)
- Page 4 User Manual PT-C-HDEARC-4K SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future return.
-
Page 5: Table Of Contents
User Manual PT-C-HDEARC-4K Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat as normal electrical waste. -
Page 6: Introduction
User Manual PT-C-HDEARC-4K 1. Introduction 1.1 Product Introduction The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC. -
Page 7: Package List
User Manual PT-C-HDEARC-4K ● Support eARC/ARC audio (from TV) extract to HDMI audio output ● Support CEC function and advanced EDID management 1.3 Package List 1× 18Gbps HDMI eARC Extractor 1× USB Cable (USB-A to Micro USB) 1× User Manual Note: Please confirm if the product and the accessories are all included, if not, please contact with the dealers. -
Page 8: Panel Description
User Manual PT-C-HDEARC-4K 2. Panel Description 2.1 Front Panel ① No. Name Description Red LED will be on when the Power device is powered on. ② 1) DC 5V power supply port; DC 5V 2) Firmware update port The switch is used to turn on/off the ③... -
Page 9: Rear Panel
User Manual PT-C-HDEARC-4K 2.2 Rear Panel ① Name Description eARC/ARC TV eARC/ARC audio output port. Connect to TV with ARC OUT 1 function. ② HDMI Audio output port (720p AUDIO audio only). Connect to OUT2 amplifier or speaker. 3. Specification... - Page 10 User Manual PT-C-HDEARC-4K 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz Color Depth YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby HDMI Audio Formats Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X Human body model —...
-
Page 11: Application Models
User Manual PT-C-HDEARC-4K 4. Application Models... -
Page 12: After-Sales Service
User Manual PT-C-HDEARC-4K 5. After-Sales Service If there appear some problems when running the pro- duct, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 13 User Manual PT-C-HDEARC-4K Any other causes which does not relate to a product defect. Delivery, installation or labor charges for instal- lation or setup of the product. Technical Support: For any questions or problems, contact your distributor or reseller and tell them the respective product name and version, the de- tailed failure description.
