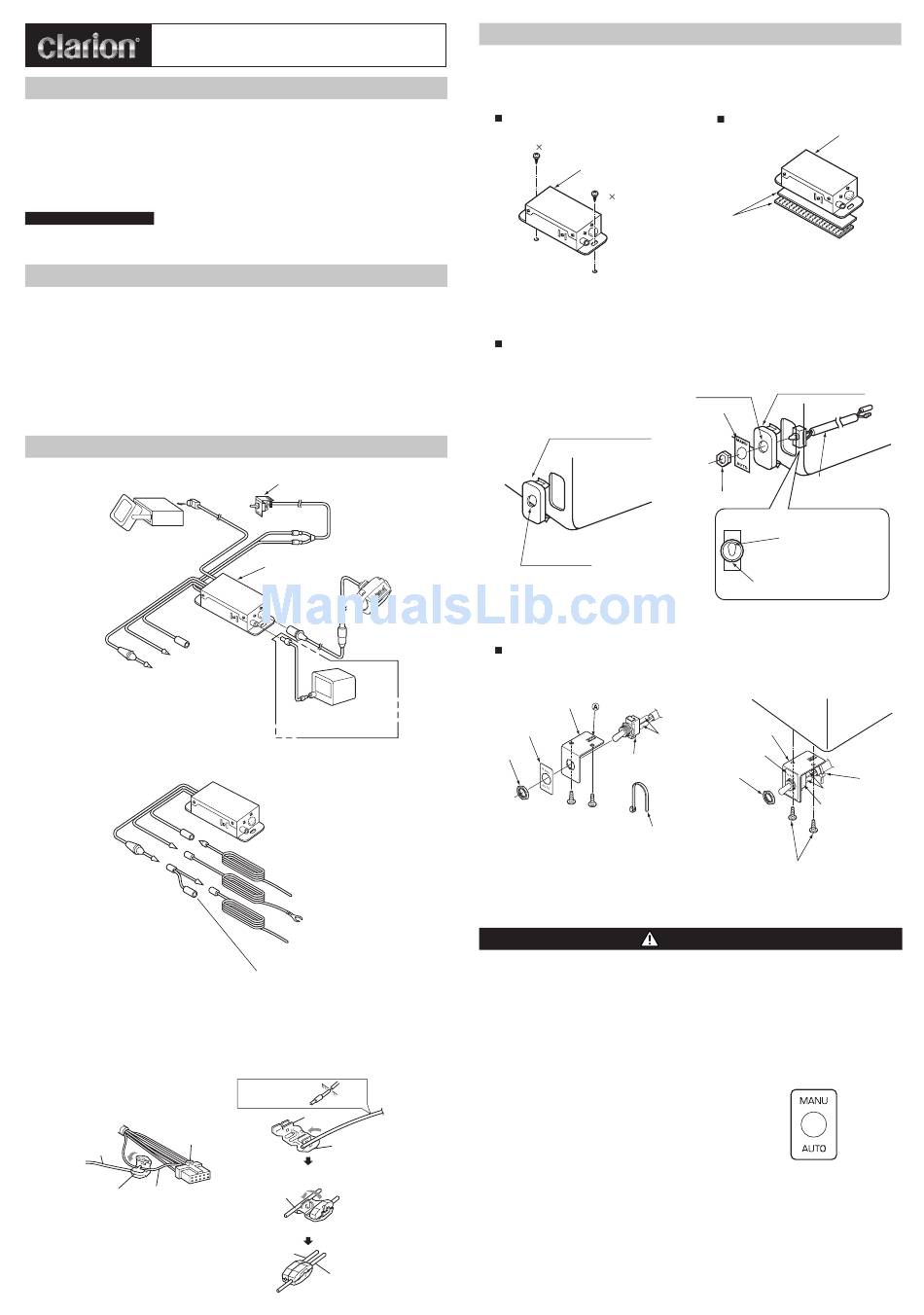

CCD Camera Power Supply Box
CAA-188-210
1. Precautions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician
for help.
INFORMATION FOR
USERS:.
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL
VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.
2. Package Contents
1. CCD camera power supply box: ············· 1
2. Selector switch: ························ 1 bag
AUTO/MANU selector switch: ··················· 1
Mounting fitting: ········································ 1
Label: ························································ 1
3. Bag of accessories: ················· 1 bag
Electro taps: ·············································· 2
Velcro: ······················································· 1
Velcro: ······················································· 1
3. Making Connections
3-1. System Connection Example
<1DIN TV, 2DIN TV>
Light green
Black
Red
To reverse gear
signal (12 V)
GND
To ACC power supply (12 V)
Fig.1
3-2. Connecting the Supplied Cables
Hook up the supplied connector cables as shown in Fig. 2.
Light
green
Black
Red
FIG.2
3-3. Power Cable Connections
When connection cannot be made to the terminals, use the supplied Electro Tap to make
the connection as illustrated in the diagram.
From the vehicle side
Coupler connected
to another piece of
equipment
Power cable
From the unit
Power cable
Hook
Printed in Japan
2006/2(CL.K)
284-8050-01
Installation Instructions
4. Bag of accessories: ················· 1 bag
Clamp: ······················································ 1
Tapping screws: ········································ 4
5. Bag of accessories: ················· 1 bag
Connector cable (red): ······························ 1
Connector cable (light green): ·················· 1
Connector cable (black): ··························· 1
Connector cable (red): ······························ 1
AUTO/MANU selector switch
White
Yellow
CCD camera
CCD camera
power supply box
For making connections to a TV
or video monitor equipped
with a video input jack
To reverse gear signal (12 V)
GND
To ACC power supply (12 V)
Used to provide a 12 V power supply
to an additional device.
As illustrated in the diagram, the intermediate
cable is brought against the stopper and bent
back in the direction of the arrow.
The tip of the cable is
cut at a convenient
length.
Not needed
Latch
From the unit
Stopper
Pass the vehicle-side cable through and
bend back in the direction of the arrow.
Vehicle-side wire
Close with pliers until the latch engages.
Unit-side cable
Vehicle-side cable
4. Mounting Procedure
4-1. Mounting the CCD Camera Power Supply Box
Mount the CCD camera power supply box in a location such as under a seat using either
the supplied tapping screws (ø4 x 12) or velcro.
Mounting Using Tapping Screws
ø4 12
CCD camera
power supply box
ø4 12
Fig.3
4-2. Mounting the AUTO/MANU Selector Switch
Mounting the Switch on the Dashboard
Mount the switch on the dashboard as shown in Fig. 6 using the supplied switch mounting
hole (Fig. 5).
Cosmetic cover (vehicle part)
Prepared ø12 hole
Fig.5
Mounting the Switch Below the Dashboard
Assemble the AUTO/MANU selector switch as shown in Fig. 7 and mount it below the
dashboard. (See Fig. 8.)
Mounting fitting
Label
Nut
AUTO/MANU selector
switch
Clamp
* Secure the switch harness to portion A of the
mounting fitting using the clip.
Fig.7
1. If harnesses will come into contact with the sharp edges of metal plates, or the like, protect
them using grommets or insulation tubes.
2. Before drilling any holes in a vehicle, make sure that there are no electrical wires, brake fluid
pipes, or the like, running behind to surface to be drilled.
3. When installation is complete, test the AUTO/MANU selector switch to make sure it works
properly.
Explanation of label indications
• MANU (manual)
: The CCD camera image is given output
priority.
• AUTO (automatic) : Normally, the TV image is output. The
camera image is output when the
transmission is shifted into reverse.
Clarion Co., Ltd.
Mounting Using Velcro
Velcro
* Thoroughly wipe any dirt from the mounting
surface.
* Remove the separator from the back of the
velcro and apply it to the mounting surface.
Fig.4
Cosmetic cover (vehicle part)
Prepared ø12 hole
Label
AUTO/MANU selector
switch cable
Mounting nut
CAUTION
Upper
Selector switch knob
Mount so that notch on AUTO/MANU
selector switch faces downward.
Fig.6
Mounting fitting
Harness
Label
Nut
Harness
AUTO/MANU selector
switch
Tapping screws (ø4 x 12)
Fig.8
CAUTION
CCD camera
power supply box
Clamp
