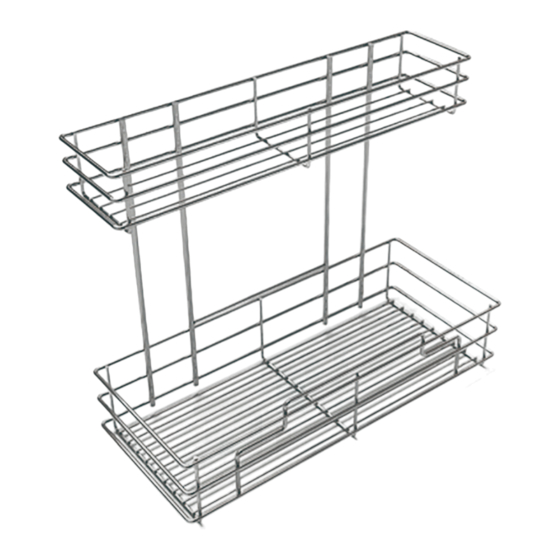

Marthon 041-FL100-C Assembly

Bottom Mounted Pull-out
Bottom Mount Pull-out, complete kit
W x H x D 267 x 42 3 x 4 8 4 mm ( 1 0 1/2 x 16 1 1/16 x 19 1/16")
Bottom Dimensions
Description
Unit: mm
0
. 5 0
m i n
2 3
4
F r
o n
t
4 2
Bottom Mounted Pull-out
Technical Specifications & Assembly
Product Features
This Bottom Mounted Pullout with concealed
undermount soft-close slides is a good fit for undersink
or base cabinets. Cutting board holder included.
Required interior width of 270mm (10 5/8")
for opening
Door Mount not available
Available for hinged door only
Load capacity: 15kg (33lbs)
Soft-Close
B a
c k
1 4
2 6 0
800.840.1228 /
Part#
041-FL100-C
MARATHONHARDWARE.COM
