CT CCT-2212BTFX User Manual

10/100base-tx to 100basefx smart diagnostic media converte

Advertisement

Trademarks
CTS is a registered trademark of Connection Technology
Systems Inc.
Contents subject to revise without prior
notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright © Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in
part, in any way whatsoever unless prior consent has been
obtained from Connection Technology Systems Inc.
FCC Warning
The CCT-2212BTFX has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These standards
are designed to provide reasonable protection against
harmful interference when this device is operated in a
commercial environment. This devices generate, use,
and can radiate radio frequency energy and may cause
harmful interference to radio communications unless
installed in accordance with this User's Guide. Operation
of this device in a residential area is likely to cause
harmful interference in which cases the user is
responsible for taking appropriate remedial action at his /
her own expense.
CE Mark Warning
This is class A products. In a domestic environment this
product may cause radio interference in which case the
user will need to consider adequate preventative
methods.
Checklist
The carton should contain following items:
⎯ CCT-2212BTFX Converter
⎯ User's guide
Please notify your sales representative immediately if any
items are missing or damaged.

1. Overview

CCT-2212BTFX is designed to meet the emerging network
deployment needs. This cost effective solution allows user
to extend their network distance up to 100KM via optical
fiber.
Beside a traditional converter, CCT-2212BTFX had built-in
monitoring & self-diagnostic functions to guarantee the
operation. These smart monitoring functions allow user to
maintain and diagnose their critical fiber network more
efficiently.
CCT-2212BTFX is fully compliant with IEEE 802.3, 802.3u
standards.
Installation and operation procedures are
simple and straightforward. Operation status and Smart
Monitor may be monitored through the LED or the Buzzer.
Feature and Benefits
-
10/100Base-TX to 100BASE-FX Converter
-
Comply to IEEE 802.3, 802.3u
-
Interface: 1 * RJ-45 connector
1 * SC Duplex connector
-
MDI/MDIX Auto-Crossover supported
-
Support Remote Look Back Diagnostic
-
Support local and remote status monitor: fiber link
status monitor and testing mode status
-
Support Diagnostic testing

3. Installation

Remove Converter Chassis front panel protective
plate from the selected installation slot.
Carefully slide converter module into Converter
Chassis and ensure converter golden finger
connection with socket, and rotate CCT-2212BTFX
bracket screw into Converter Chassis
Attach fiber cable from the CCT-2212BTFX to the
fiber network. The fiber connections must be
matched – transmit socket to receive socket.
Attach a UTP cable from the 10/100Base-TX
network to the RJ-45 port on the CCT-2212BTFX
Check Power LED lights up. The TP Link and FX
Link LED will also light up when all the cable
connections are satisfactory.

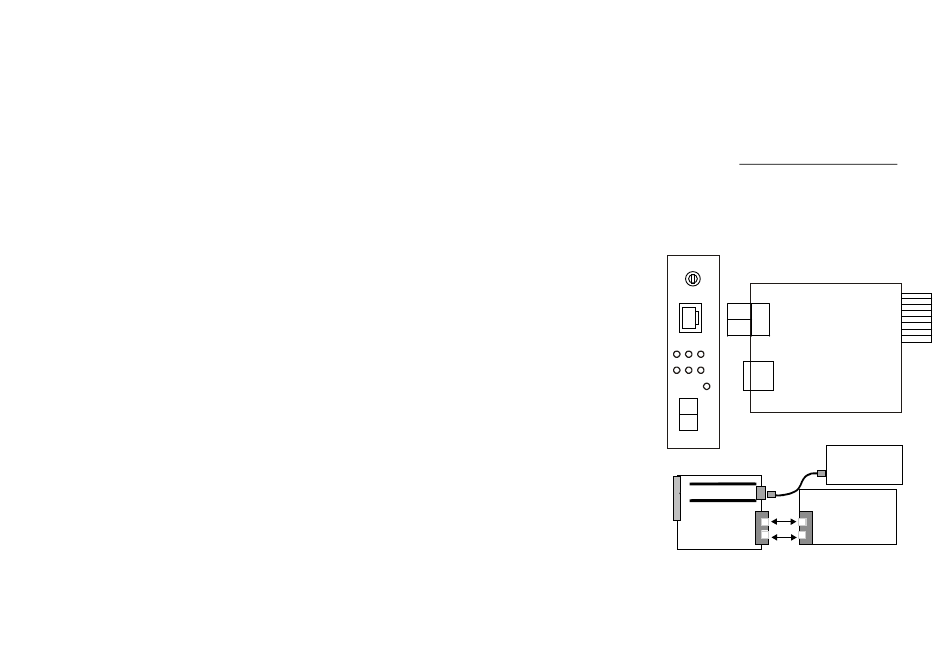

Fiber
Transceiver
FDX/
Speed
T
X
COL
RJ-45
Connector
FX
PWR
Status
Diag
10/100Base
Network
10/100Bas e - TX
Fiber
RX
TX
Network
TX
RX
Fig. 2 Basic Network C
onnection
.
TX
-
