Smart Bridge 8811S-GW&9202N-RF Quick Installation Manual

➢ Preparation
Equipment Required: SmartPhone or Laptop, WiFi Router
Application: Web Browser (Microsoft Edge/ Google Chrome/ Safari...)
9abcx-rf is only a sensor, so it must be combined with gateway 8811 to work

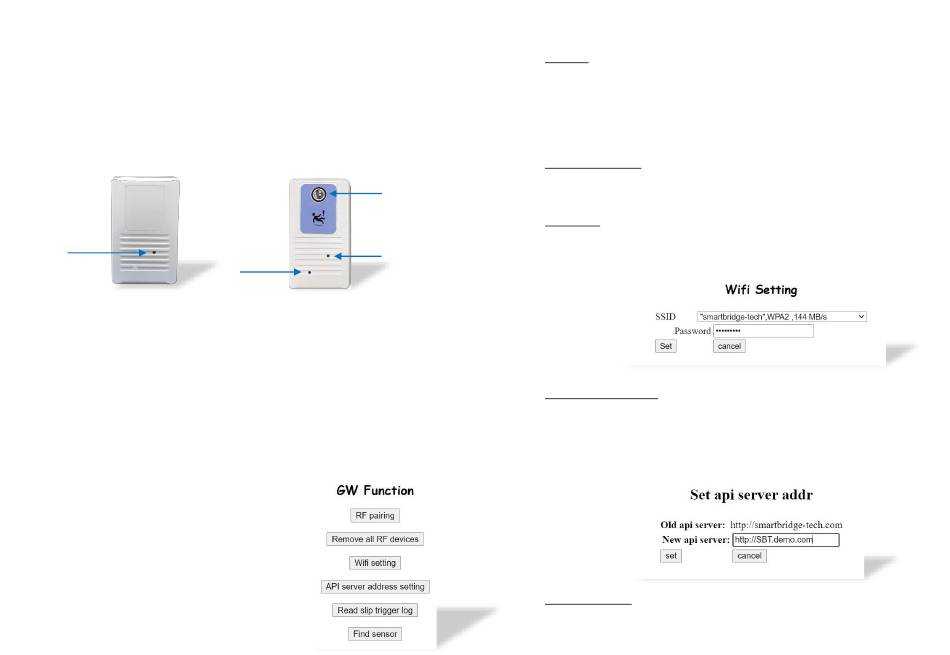

Product Photo
➢
Gateway (8811S-GW)
Indicator Light
Gateway Installation
➢
1.1. Install Gateway ： Power on the Gateway, the Indicator Light turns Red.
1.2. Indicator Light flashes rend and greed for next installation (AP-Mode)
1.3. Turn on WiFi Setting on SmartPhone/Laptop and connect to Gateway SSID. The format is
like "SBI-GW-XXXXXXXXXXXXX", and password "12345678".
1.4. Turn on web browser and enter"http://10.42.0.1:8000" (AP-mode connected address)
【Quick Installation Guide─RF Gateway and Fall Down Detector】
Fall Down Detector
Sensor
Pairing
Button
Indicator
Light
➢ Setting
1.1 RF pairing Process the pairing process for Gateway and Sensor
Press "RF pairing" on web browser and take a fine needle to press the pairing button at
the bottom left of the Detector around 2-5 seconds. The Indicator light flashes green
then take out the fine needle. The pairing process is done after the indicator light turns
solid green for seconds. The sensor number starts from {0}, followed by {1,2...7}. (Up to
8 ). Check it by "Find Sensor" ->" Online Sensor" after 30 seconds after pairing. (Section
1.6)
1.2 Remove all RF devices Remove all the pairing between Gateway and Sensors
Press "Remove all RF" on web browser and all the pairing between Gateway and Sensors
are invalid.
1.3 WiFi Setting
Connect Gateway to WiFi router and connect it by
IP> :8000. (Client mode). Select the WiFi SSID and enter password of your router. It takes
3-5 minutes for WiFi setting. The Indicator Light turns to Blue after the WiFi setting is
completed. (Blue for Internet accessible; Red means Internet non-accessible)
1.4 API server address setting Modify the server address
You can configure the server address for data upload by this option.
(http://server IP). To upload the Gateway heartbeat and event record.
Please find the API document provided by SBI for more detail.
1.5 Read slip trigger log Read the fall down event record
You can check the time record table of fall down event from this option. It will keep the
last 50 data. The data will be completely removed and re-recorded after Gateway power
1
http:// <gateway
QIG GW-SD 11-2021 / v1.2
