Summary of Contents for Amptek COOL-X

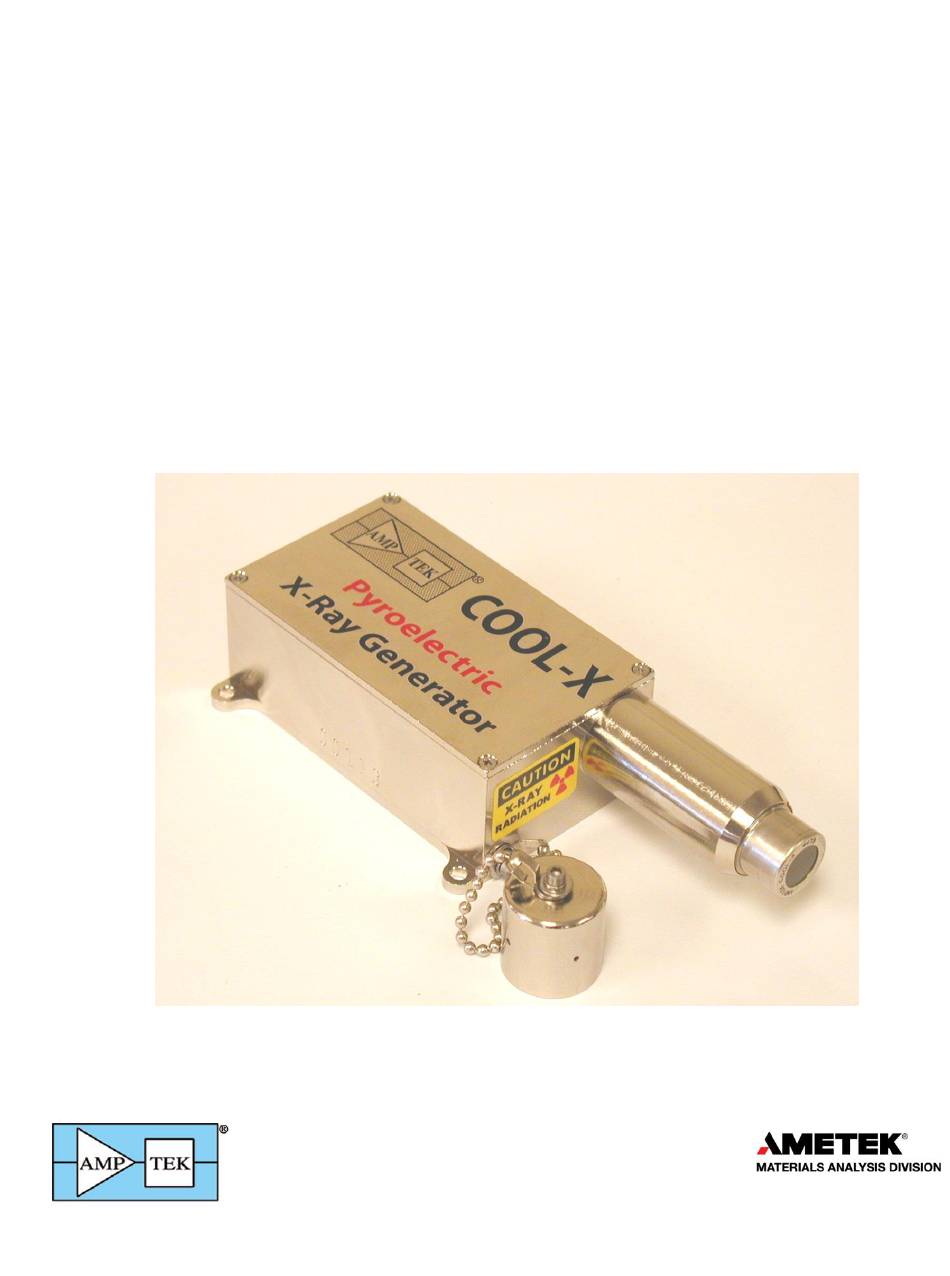

- Page 1 COOL-X X-Ray Generator with Pyroelectric Crystal Operating Manual AMPTEK INC. 14 DeAngelo Drive, Bedford, MA 01730-2204 USA +1 781 275-2242 Fax: +1 781 275-3470 Amptek.sales@ametek.com www.amptek.com...
- Page 2 (for more information, see http://www.fda.gov/cdrh/radhlth/pdf/xdfgehb.pdf). Beryllium Window Caution The front of the COOL-X is made of a 10 mils (250 µm) Beryllium window. DO NOT REMOVE the metal cover from the COOL-X until ready to use. The Be window is extremely brittle and can shatter easily. Do not have any object come into contact with the window.
- Page 3 AMPTEK INC. COOL-X Operating Manual WARNING This product contains the following chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm if exposed to them through improper use, storage, or disposal of the product:...
- Page 4 X-ray generator, monitor its temperature and automatically change the heating and cooling phases of the cycle. Figure 1 Please see Appendix A if the COOL-X emitter element is to be used away from its Controller. Page 4...
- Page 5 9 Volt battery to the terminals. Figure 2 4) The COOL-X should be mounted on a firm surface using the 4 mounting tabs of the box. 5) Connect the AC adapter to the back of the box and remove the front metal cover.
- Page 6 Cooling phase Figure 5 Figure 4 8) KEEP ALL PERSONNEL AWAY FROM THE FRONT OF THE COOL-X. CAUTION: X-RAYS ARE PRESENT 9) When the cooling phase starts, the LED will automatically start flashing GREEN. This pattern of flashing red/green will continue until the red power button is pressed again. Power to the unit is toggled ON/OFF every time the power button is pressed.
- Page 7 AMPTEK, INC. warrants to the original purchaser this instrument to be free from defects in materials and workmanship for a period of one year from shipment. AMPTEK, INC. will, without charge, repair or replace (at its option) a defective instrument upon return to the factory. This warranty does not apply in the event of misuse or abuse of the instrument or unauthorized alterations or repair.
- Page 8 COOL-X Operating Manual APPENDIX A Operation of the COOL-X away from its Controller The Amptek COOL-X, x-ray generator is designed to be used as an integrated unit together with its Controller in normal room temperature applications 20 C ±5 C. Operating the unit outside these temperature conditions may result in faulty operation or damage to the COOL-X emitter.
