Summary of Contents for Klein Tools BAT20-CW

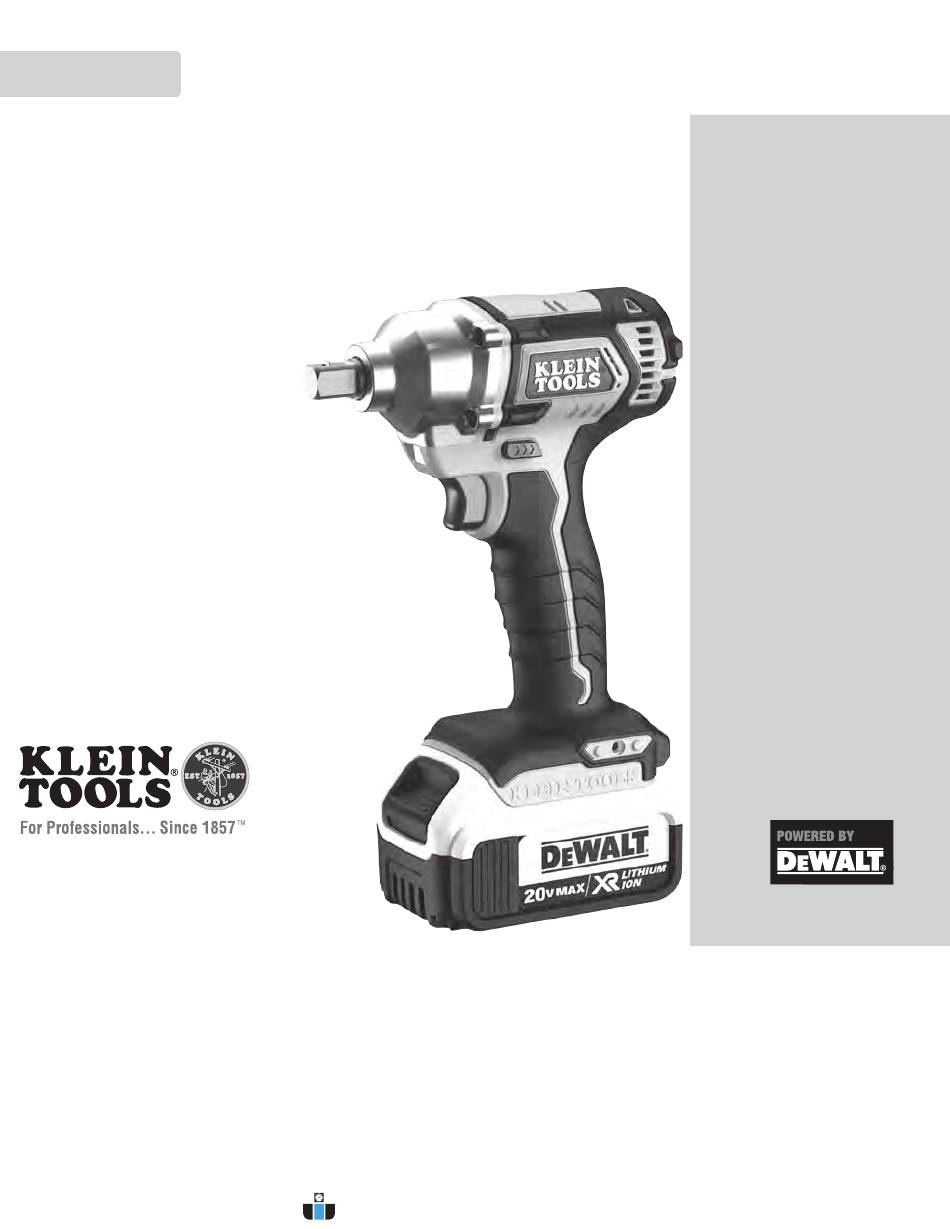

- Page 1 ENGLISH INSTRUCTION MANUAL BAT20-CW Compact Impact Wrench BAT20-CW1 • 20V Lithium Ion • 1/2" Square Drive • 210 ft-lbs Torque • 0 – 2200 RPM POWERED BY 1.800.544.2843 www.calcert.com sales@calcert.com...
-
Page 2: General Specifications
GENERAL SPECIFICATIONS Klein Tools BAT20-CW impact wrench is designed for professional impact fastening applications. The impact function makes this tool particularly useful for installing and removing threaded fasteners. • Power Source: 20V Li-Ion battery • Speed: Variable, 0 – 2200 RPM •... - Page 3 FEATURE DETAILS 1.800.544.2843 www.calcert.com sales@calcert.com...
- Page 4 DEFINITIONS The definitions below describe the level of severity for each signal word: DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
- Page 5 SAFETY 2) Electrical Safety: a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
-
Page 6: Additional Specific Safety Rules
SAFETY f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 7 SAFETY Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Page 8 SAFETY • DO NOT splash or immerse in water or other liquids. • DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed 104° F (40° C) (such as outside sheds or metal buildings in summer).
- Page 9 SAFETY • Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention. WARNING: BURN HAZARD. Battery liquid may be flammable if exposed to spark or flame. Important Safety Instructions for All Battery Chargers •...
- Page 10 SAFETY • DO NOT use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution. • When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use.
- Page 11 SAFETY • DO NOT operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center. • DO NOT disassemble the charger; take it to an authorized service center when service or repair is required.
- Page 12 SAFETY 6) Battery Tool Use and Care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another type of battery pack. b) Use power tools only with specifically designated battery packs.
-
Page 13: Battery Charging Instructions
BATTERY CHARGING INSTRUCTIONS BATTERY CHARGER • This Class B digital apparatus complies with Canadian ICES-003. • This device complies with Part 15 of the FCC Rules and Industry Canada License- exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 14: Charge Indicators
BATTERY CHARGING INSTRUCTIONS CHARGE INDICATORS This charger is designed to detect certain problems that can arise. Problems are indicated by the red light flashing at a fast rate. If this occurs, re-insert the battery pack into the charger. If the problem persists, try a different battery pack to determine if the charger is working properly. -
Page 15: Wall Mounting
BATTERY CHARGING INSTRUCTIONS WALL MOUNTING Models DCB107, DCB112, DCB113, DCB115 These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet. Mount the charger securely using drywall screws at least 1"... -
Page 16: Installing & Removing Battery Pack
BATTERY CHARGING INSTRUCTIONS 6. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. - Page 17 OPERATING INSTRUCTIONS FUEL GAUGE BATTERY PACKS Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack. To actuate the fuel gauge, press and hold the fuel gauge button .
-
Page 18: Proper Hand Position
OPERATING INSTRUCTIONS PROPER HAND POSITION Proper hand position requires one hand on the main handle as shown. WARNING: To reduce the risk of serious personal injury, Always use proper hand position as shown. WARNING: To reduce the risk of serious personal injury, always hold securely in anticipation of a sudden reaction. - Page 19 OPERATING INSTRUCTIONS WARNING: To reduce the risk of serious personal injury, place the forward/reverse button in the lock-off position or turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. WARNING: Use only impact-rated accessories.
-
Page 20: Maintenance
• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Contact Klein Tools for authorized service centers. • The charger and battery pack are NOT serviceable. To assure product safety and... - Page 21 DISPOSAL Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information. THE RBRC™ SEAL The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium ion batteries (or battery packs) indicate that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid.
- Page 22 THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. At its option, Klein Tools will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty under normal use and service. This warranty does not apply to damage from alterations, abuse, misuse, lack of maintenance, or normal wear and tear of the product.
