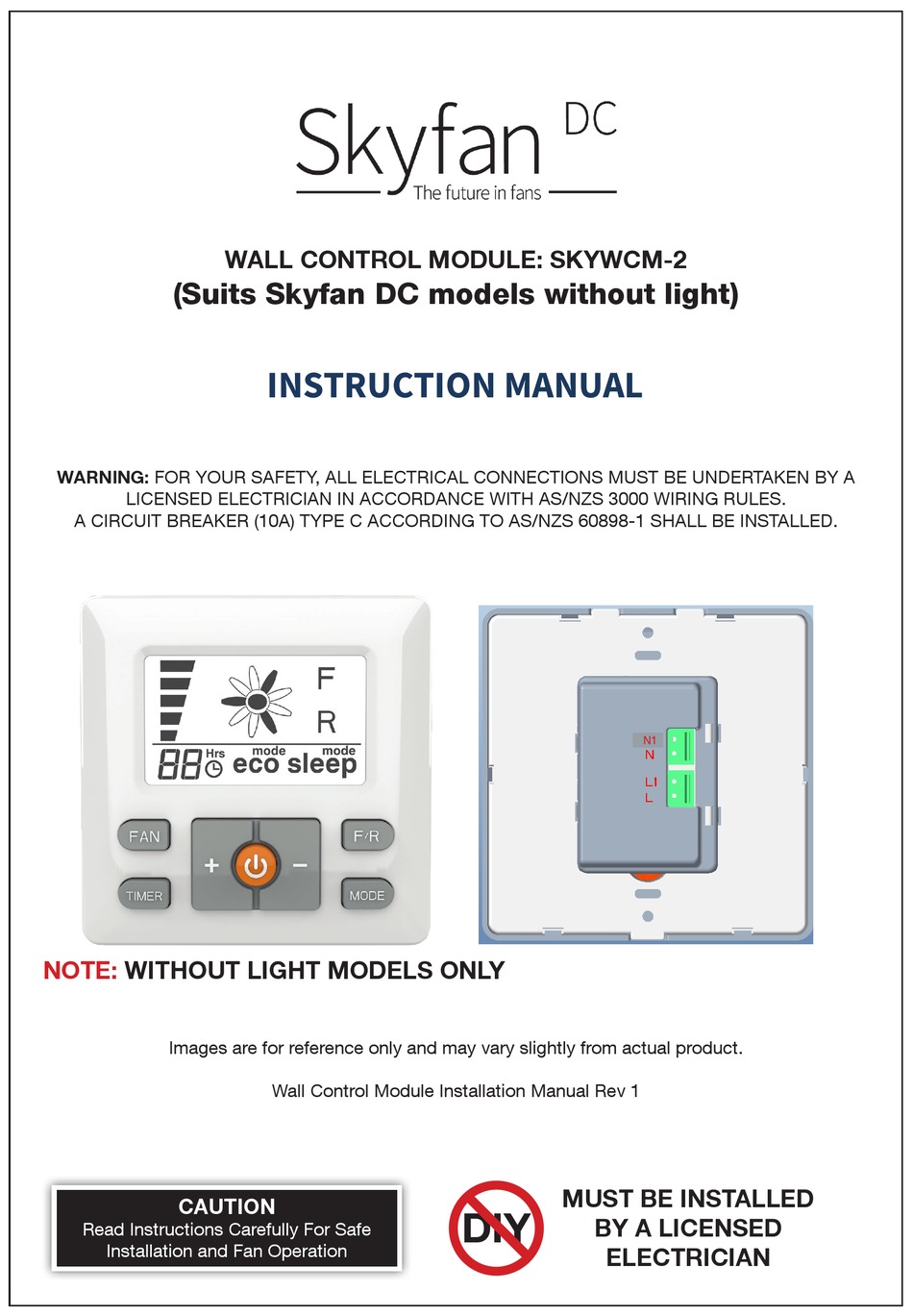

Skyfan SKYWCM-2 Instruction Manual

WALL CONTROL MODULE: SKYWCM-2

(Suits Skyfan DC models without light)

INSTRUCTION MANUAL

WARNING: FOR YOUR SAFETY, ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A

LICENSED ELECTRICIAN IN ACCORDANCE WITH AS/NZS 3000 WIRING RULES.

OPERATION

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN IN

A CIRCUIT BREAKER (10A) TYPE C ACCORDING TO AS/NZS 60898-1 SHALL BE INSTALLED.

ACCORDANCE WITH AS/NZ3000 WIRING RULES.

NOTE:

WITHOUT LIGHT MODELS ONLY

Using 1 wall controller to control 1 Skyfan DC Ceiling fan.

Images are for reference only and may vary slightly from actual product.

Wall Control Module Installation Manual Rev 1

MUST BE INSTALLED

CAUTION

DIY

BY A LICENSED

Read Instructions Carefully For Safe

Installation and Fan Operation

ELECTRICIAN

Table of Contents

Need help?

Do you have a question about the SKYWCM-2 and is the answer not in the manual?

Page 1 ACCORDANCE WITH AS/NZ3000 WIRING RULES. NOTE: WITHOUT LIGHT MODELS ONLY Using 1 wall controller to control 1 Skyfan DC Ceiling fan. Images are for reference only and may vary slightly from actual product. Wall Control Module Installation Manual Rev 1...
Page 2 ELECTRICAL WIRING DIAGRAM Using 1 wall controller to control 2 or more Skyfan DC Ceiling fans. • Using 1 wall controller to control 1 x Skyfan DC Without Light Ceiling Fan. (CAN BE LEFT VACANT OR USED AS “N” OUT)
Page 3 ELECTRICAL WIRING DIAGRAM CONTINUED Pair the Secondary fans. , a beep’ sound will be heard, and within 20 Turn secondary fan isolation switch “ON” seconds, press and hold on the master wall controller for 3 seconds. The fan will emit another ‘beep beep’...

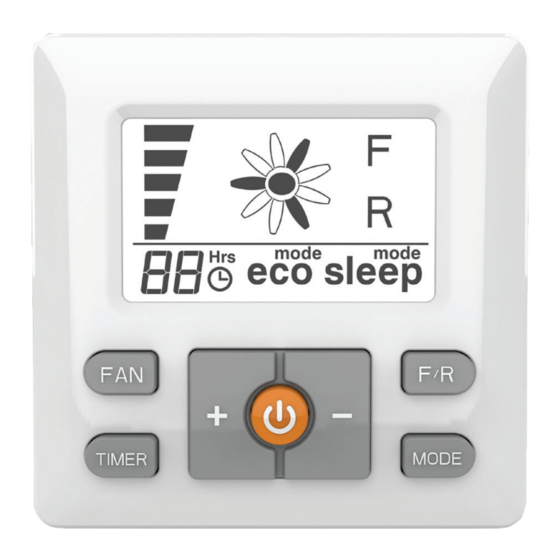

Page 4 WALL CONTROL OPERATION Model: SKYWCM-2 Suitable for all Skyfan DC Without Light Models Power ‘ON’ and ‘OFF’ (Isolation switch) Fan ‘ON’ and ‘OFF’ Increases fan speed until Max (speed 5) Decreases fan speed until Min (speed 1) TIMER Run on Timer with 12 setting options (1hr to 12hrs)
