Model
: ATZ HDMI-161SM

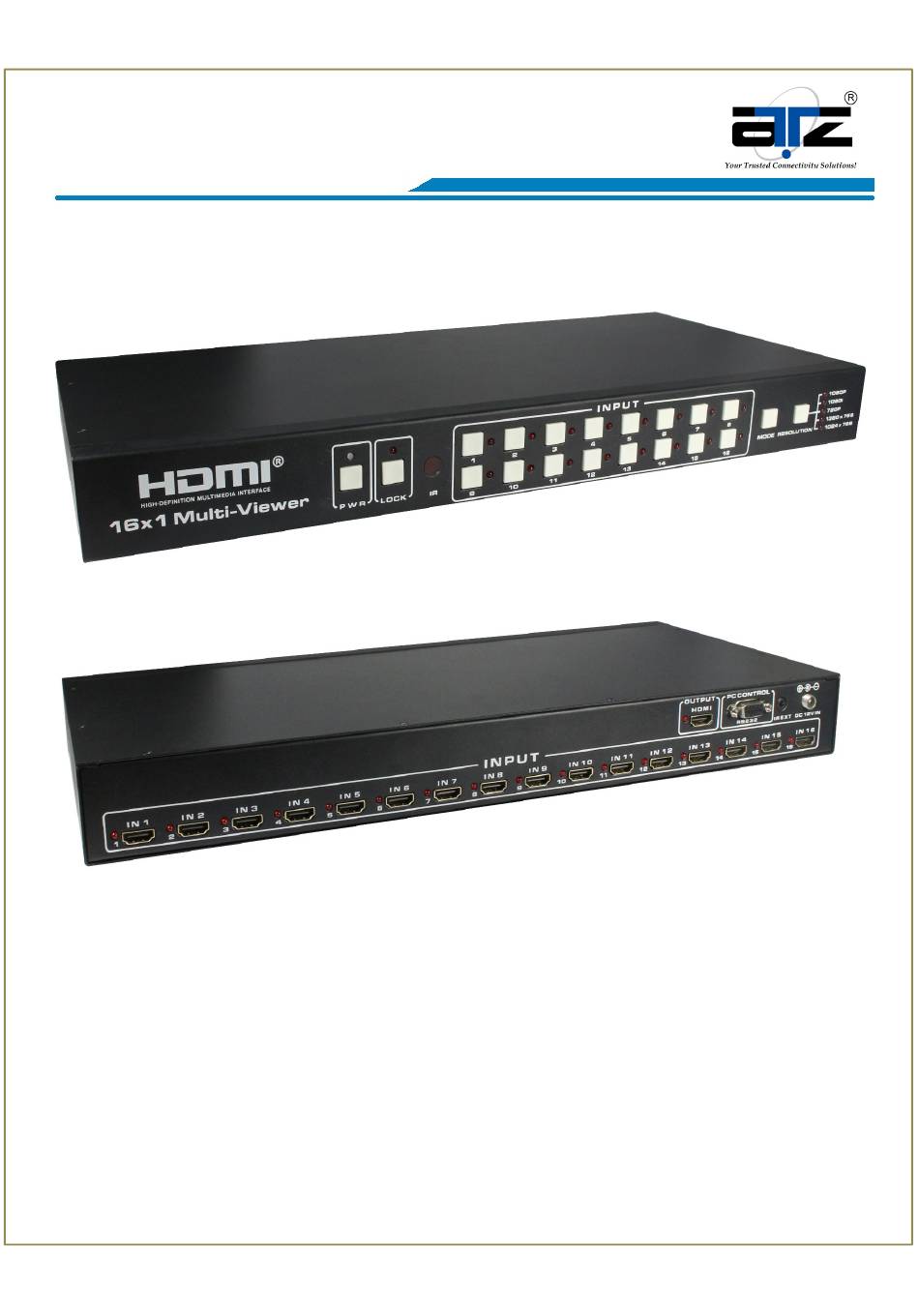

Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher
1.Introduction
This product is a high performance 16 by 1 Multi-Viewer with seamless switcher. It supports sixteen High
definition input source display on one screen. As a switcher, it can also seamlessly switch the sixteen HD input
freely. The product can be controled by various ways, through the front panel
button control, IR control, RS232 control etc.
pg. 1
All specifications are subject to change without prior notice.
© Copyright ATZ 2013
Advertisement
Table of Contents
Related Manuals for ATZ HDMI-161SM
Summary of Contents for ATZ HDMI-161SM
- Page 1 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher 1.Introduction This product is a high performance 16 by 1 Multi-Viewer with seamless switcher. It supports sixteen High definition input source display on one screen. As a switcher, it can also seamlessly switch the sixteen HD input freely.
- Page 2 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher 2.Features Compliant with HDMI 1.3a,HDCP 1.2 ； Supports multiplexed HDMI 16-input and 1-output ； Supports up to 1080p High Definition resolution ； Support 16by1 Quad Multi-viewer and seamless switch ；...
- Page 3 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher Operating Temperature 0 °C~40 °C/ 32 °F~104 °F Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F Relative Humidity 20~90 % RH (non-condensing) 5. PANEL FUNCTIONS 5.1 Front Panel 1.
- Page 4 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher 5.2 Rear Panel 1. HDMI INPUT Area ： C onnect HDMI sources. LED 1-16 illuminate when the HDMI signal plug in corresponding input port with HDMI cable. 2. HDMI OUTPUT Area ：...
- Page 5 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher .Detail description of display mode The 16x1 multi-viewer have 4 display modes. MODE1: The 16x1 multi-viewer will separate display the sixteen HD input, and now it is a seamless switcher.
- Page 6 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher MODE3: The 16x1 multi-viewer divides the nine HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.
- Page 7 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher 7. PC controller user guide Installation The PC controller is green software. Just use a cable to connect the PC via RS232 port and copy “Quad Multi-Viewer.exe” to PC to complete installation.
- Page 8 Model : ATZ HDMI-161SM Description: 16X1 HDMI Multi-Viewer SEAMLESS switcher ④ Select the output mode, see the detail description (chapter 6). ⑤ Adjust the HDMI output picture quality. ⑥ Display or hidden the border. ⑦ Display or hidden the OSD menu.
