Summary of Contents for Artiste E1
- Page 1 ARTISTE E1 2.4GHz WIRELESS INDUCTION NECK-LOOP HEADPHONE User Manual...
- Page 2 INTRODUCTION ARTISTE 2.4GHz DIGITAL WIRELESS INDUCTION NECK-LOOP HEADPHONE E1 uses latest digital wireless technology, and enables to improve the hearing aid capability that elderly people can enjoy crystal sound stereo music and TV sound anywhere inside your home. Simply connect the Transmitter to a desired audio source: Smartphone, DVD player, CD player, TV set, Hi-Fi system, or iPod.
-
Page 3: Component Part List
COMPONENT PART LIST Neck-Loop Receiver Transmitter Polymer Lithium Rechargeable Battery x 2 pieces AC/DC Adapter RCA Adapter Cable Audio Cable (both ends with 3.5 mm stereo plug) TOSLINK Optical Cable External Microphone 6.3 mm to 3.5 mm Adapter Plug (Optional) Headphone（耳塞线图需要补充）... - Page 4 Function Identification: Neck Loop Receiver Break-free Plug Volume Adjustment Power on indicator Microphone button for room monitoring On/Off switch Microphone Hole Volume balance (left/right) 3.5 mm Audio output jack Battery...
- Page 5 Function Identification: Transmitter Charging Cradle LED Indicator of Tone Clarity Tone Clarity Button LED Indicator of Power/Signal LED Charging Indicator for Main Battery (attached to Headset Receiver) LED Charging Indicator for Spare Battery Spare Charging Slot DC In Mono/Stereo Select Optical input 3.5mm Audio In...
- Page 6 INSTALLATION ■ TRANSMITTER Connect the Power Adapter to the DC IN input Socket located on the transmitter rear panel. Connect the Power Adapter provided to an Electrical Outlet. Make sure the Power LED on the Transmitter is ON. Connect the transmitter to your audio source. RCA Adapter Cable, Audio Cable, 6.3 mm to 3.5 mm Adapter Plug, External Microphone and TOSLINK cable are provided for various type of connection to your Audio Source (e.g.

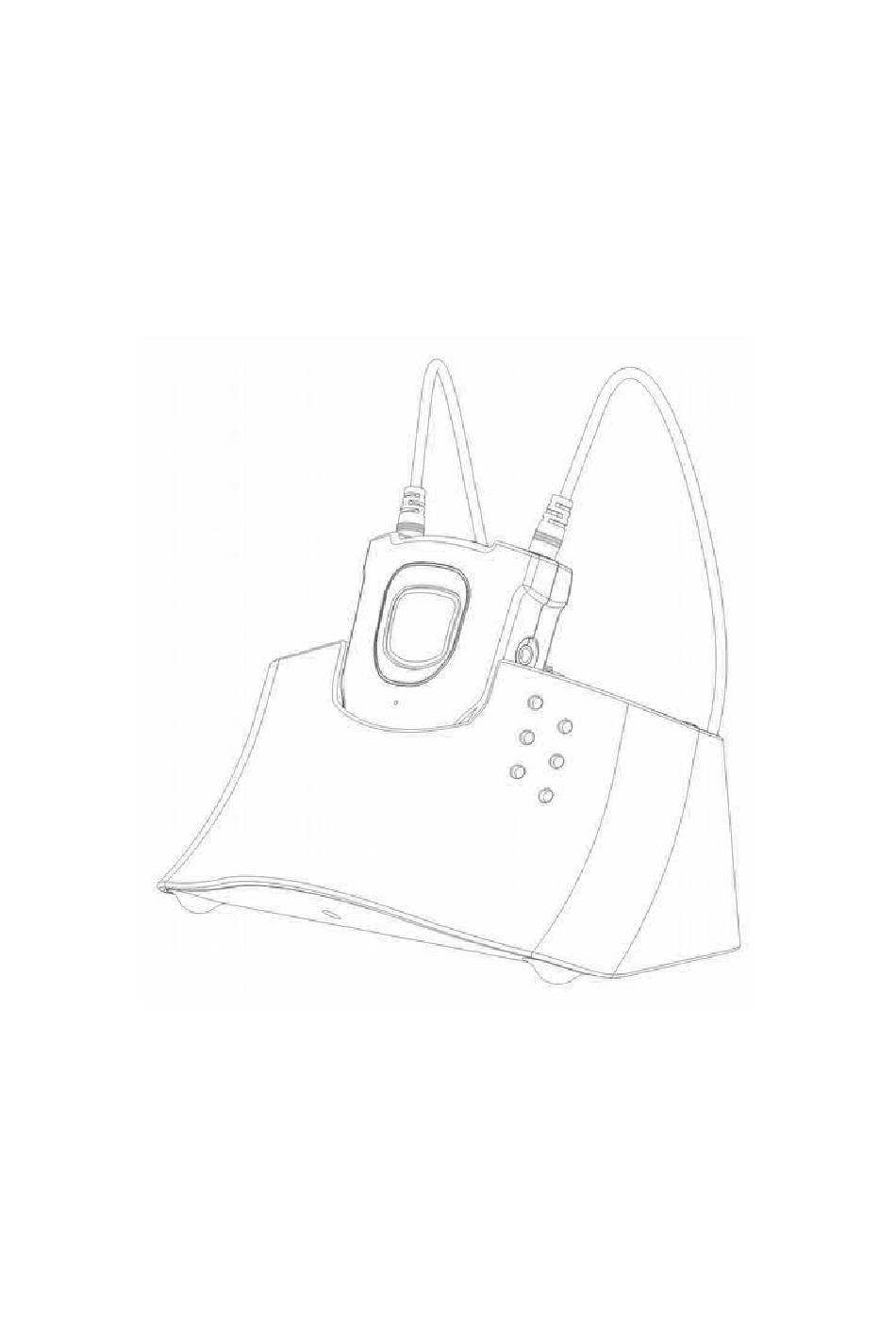

- Page 7 SET UP THE NECK LOOP RECEIVER ■ Installation and charging the battery Insert a battery into the Receiver with correct Polarity.(See Below Fig. A) Charge the battery for about 3 hours before first use. Switch off the Receiver (position OFF). Place the Receiver into the charging cradle of the Transmitter.
-
Page 8: Operation
guarantee an acceptable service life for the rechargeable batteries. Always ensure that the Receiver is switched to OFF position while the battery is charging. Excessive sound pressure from earphones and headphones can cause hearing loss. IMPORTANT: This unit should be operated with rechargeable batteries only. When replacing the batteries or when disposing of the unit, always comply with applicable laws relating to the disposal of batteries. - Page 9 The following table shows the settings. Try out which setting works best for you. ■ Troubleshooting No sound Ensure that the mains adapter is pushed fully into the power outlet and that its cable is properly connected to the DC IN connector on the Transmitter. Ensure that the Receiver power ON/OFF switch is switched to ON.
-
Page 10: Technical Specifications
Try using a different connection RCA, OPTICAL or HEADPHONE. Distortion The charge level of the battery inside the Receiver may be too low. Recharge the battery or replace them with a fully charged battery. The Receiver may be too far away from the Transmitter. Move closer to it. The audio signal input level may be too low.
