DILUVIO

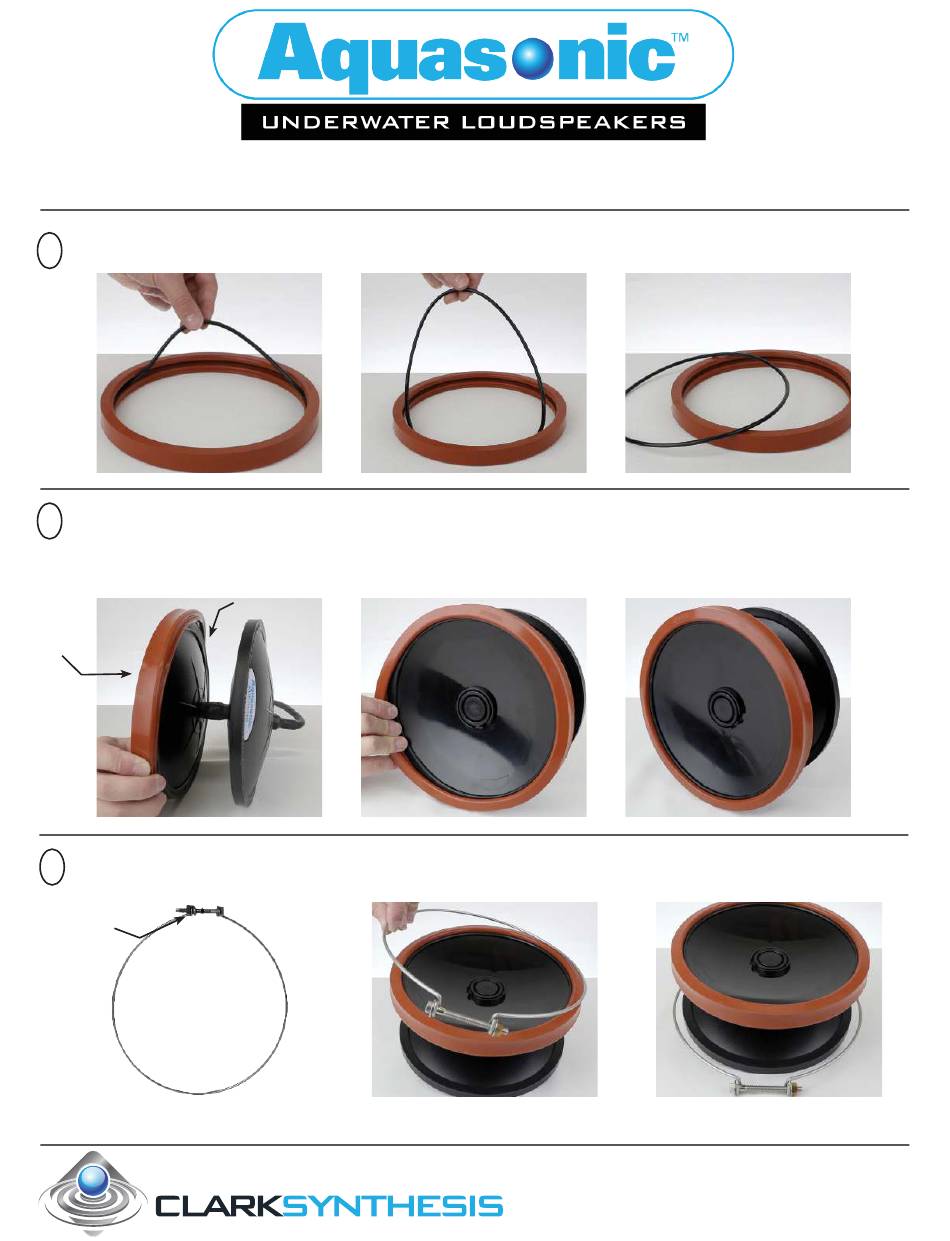

Carefully remove the speaker from its box and set aside. Remove the black o-ring from inside the red gasket
1
and dispose.
Install the mounting gasket around the rubber ring of the sound lens. The gasket's flat side will go towards
2
the face ring. The grooved side faces the speaker body. Ensure the mounting gasket is installed evenly and
is firmly seated against the entire circumference of the sound lens.
Flat side
Loosen the nut on the wire clamp. With the mounting gasket facing up, place the wire clamp over the sound
3
lens. The bolt & nut should be facing down towards the speaker not the sound lens.
Nut
Wire Clamp
NOTE: If using the Stainless Steel Screen, install before step 4.
™
FACE RING INSTALLATION GUIDE
Grooved Side
12905 Division Street, Suite C
Littleton, CT 80125
Phone: 303-797-7500
www.clarksynthesis.com
Advertisement
Table of Contents
Summary of Contents for AQUASONIC DILUVIO
- Page 1 ™ DILUVIO FACE RING INSTALLATION GUIDE Carefully remove the speaker from its box and set aside. Remove the black o-ring from inside the red gasket and dispose. Install the mounting gasket around the rubber ring of the sound lens. The gasket’s flat side will go towards the face ring.
- Page 2 Place the speaker on a non-abrasive surface with the sound lens facing up. Hold the face ring above the sound lens, allowing the clamp tabs to fall open. Set the face ring against the mounting gasket, ensuring each clamp tab is on the outside of the mounting gasket. While placing the face ring on the gasket tuck the gasket in so no red shows.
