Summary of Contents for Alldaq ADQ-51

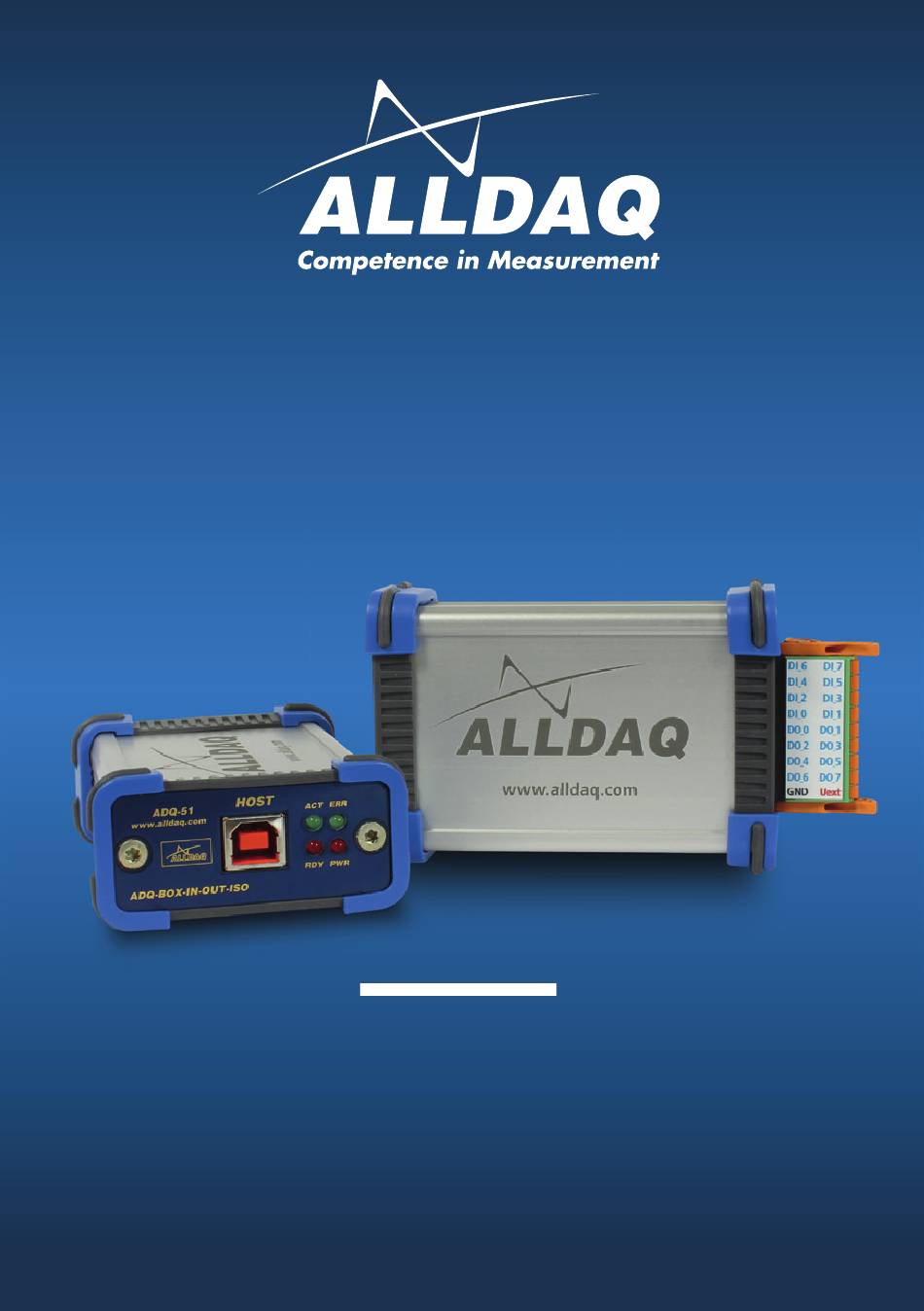

- Page 1 Manual Beta Rev. 1.0 ADQ-51 ADQ-51 USB-Box with 8 isolated digital inputs and 8 isolated digital outputs...
- Page 2 Imprint Manual ADQ-51 Rev. 1.0 Datum: 28.04.2021 Manufacturer and support ALLNET® and ALLDAQ® are registered trademarks of ALLNET® GmbH Computersysteme. For questions, problems and product information please contact the manufacturer directly: ALLNET® GmbH Computersysteme Division ALLDAQ Maistrasse 2 D-82110 Germering Support E-Mail: support@alldaq.com...
-
Page 3: Table Of Contents
Manual ADQ-51 Rev. 1.0 Content 1. Introduction ��������������������������������������������������������� 5 1.1 Scope of delivery �������������������������������������������������������� 5 1.2 Safety instructions ������������������������������������������������������� 6 1.3 Installation and assembly site ��������������������������������������������� 7 1.4 Brief description ��������������������������������������������������������� 7 1.5 System requirements ����������������������������������������������������� 8 1.5.1 Hardware ����������������������������������������������������������� 8 1.5.2... - Page 4 Manual ADQ-51 Rev. 1.0 4. Annex ������������������������������������������������������������� 17 4.1 Specifications ���������������������������������������������������������� 17 4.2 Pin assignments �������������������������������������������������������� 20 4.2.1 ADQ-51 ������������������������������������������������������������ 20 4.2.1.1 18-pin type Phoenix contact ��������������������������������������� 20 4.3 Manufacturer and support ����������������������������������������������� 21 4.4 Important notes �������������������������������������������������������� 21 4.4.1 Packaging ordinance ������������������������������������������������...
-
Page 5: Introduction
Manual ADQ-51 Rev. 1.0 Introduction Introduction Please check the packaging and the contents for damage and completeness before commissio- ning. If any defects should occur, please inform us immediately. • Does anything on the packaging indicate that something has been damaged during trans- port? •... -
Page 6: Safety Instructions
Introduction Manual ADQ-51 Rev. 1.0 Safety instructions Be sure to observe the following instructions: • Make sure that the box is very well ventilated, as the output drivers can become up to 100 °C hot at full load. • Avoid touching cables and connectors etc. inside the PC with the card. -
Page 7: Installation And Assembly Site
The digital inputs are equipped with a digital filter. The ADQ-51 also has 8 bit isolated digital outputs. Each output can drive up to 0.6A. To increase the output current a parallel connection of several outputs is possible, so that for many appli- cations no external driver stage is necessary. -
Page 8: System Requirements
• A free USB-slot (ADQ-51) 1.5.2 Software On the ALLDAQ homepage you will find drivers for Windows Vista SP2 and higher (32 and 64 bit) as well as a function library (API) with code examples for high-level language program- ming. Please note the notes in the corresponding help file adqSDK.chm. -
Page 9: Start Of Operation
The box should be handled with care to ensure that the device is not damaged by electrostatic discharge (ESD), mechanical stress or unauthorized surges. In addition, precautions must be taken to avoid electric shock. Follow standard ESD protection measures. Fig. 1: Side views of the ADQ-51 Start of operation... -
Page 10: Software Installation
After successful installation you will find the „ALLDAQ-Manager“ in the info area of the taskbar (usually at the bottom right) or in the Windows start menu. The ALLDAQ Manager gives you access to the Software Developer Kit (SDK), various utility programs and help files. -
Page 11: Function Groups
Temperature monitoring DO_7…0 8 bit output port GND_EXT Current limitation per channel Fig. 2: Block diagram ADQ-51 • 8 isolated digital inputs (1 x 8 bit ports) • 8 isolated digital outputs (1 x 8 bit ports) LED display status Meaning... -
Page 12: Isolated Digital Inputs
IEC 61131-2 (Type 1) and are designed for a maximum input voltage of 35 V. The ADQ-51 has 1 isolated digital input port with 8 bits. All isolated inputs are equipped with status LEDs (not visible in the housing). The insulation voltage against PC ground is 500 VACeff according to EN60664-1 or UL1577. -
Page 13: Programming
Manual ADQ-51 Rev. 1.0 Function groups Digital lter Fig. 4: Wiring of the isolated digital inputs 3.3.3 Programming All input ports (DI_x) can be programmed independently of each other. The port direction is determined by the hardware. One digital filter can be programmed per port: 10 ms / 3.2 ms / 1 ms / 10 µs (bypass). -
Page 14: Isolated Digital Outputs
500 VACeff. 3.4.1 Wiring The outputs of the ADQ-51 are designed for a high level of 24 V (UOH = 16..35 V) for industrial applications. The max. output current IO is 0.6 A per channel. To increase the total output cur- rent, any number of outputs can be connected in parallel. - Page 15 To supply the output stage, an external voltage source must be connected to the UEXT pins, which can provide sufficient power. At full load, this is up to 5.6 A for the ADQ-51. Attention: The Phoenix DFMC 1.5/9-ST-3.5-LR (1790551) connector may heat up!
-
Page 16: Programming
Function groups Manual ADQ-51 Rev. 1.0 3.4.2 Programming The output ports (DO_x) can be programmed independently. The port direction is determined by the hardware. 3.4.2.1 Single value output In this operating mode you can output one digital value each in the respective port width. -
Page 17: Annex
Manual ADQ-51 Rev. 1.0 Annex Annex Specifications Isolated Digital inputs Conditions: UEXT_DI = 24 V ±5%, T = 25°C Element Condition Specifications Quantity ADQ-51 1 x 8 bit digital input port Type Isolated digital inputs (unidirectional) with Schmitt trigger characteristic according to IEC 61131-2 (type 1/3) - Page 18 Annex Manual ADQ-51 Rev. 1.0 Isolated digital outputs Conditions: UEXT = 16…30 VDC, T = -25…+125°C Element Condition Specifications Quantity ADQ-51 1 x 8 bit digital output port Type Isolated digital outputs (unidirectional) Isolation voltage 500 VAC according to UL508 & EN 61131-2 Output level 11..35 V...
- Page 19 Manual ADQ-51 Rev. 1.0 Annex General Element Condition Specifications PC interface USB2.0 2.0 Fullspeed (downward compatible 1.1, 1.0) Power consumption USB2.0 max. 50 mA Status LEDs Power, USB Ready, Act, Error Operating temperature Operation 0..70 °C Storage -40..100 °C Humidity Operation 20%..55% (non-condensing)
-
Page 20: Pin Assignments
Manual ADQ-51 Rev. 1.0 Pin assignments 4.2.1 ADQ-51 4.2.1.1 Type Phoenix contact 18-pin (1790551) Fig. 6: ADQ-51 ADQ-51 pin assignment 18-pin Phoenix contact Designation Note GND (isolated from PC ground GND_PC) UEXT 16..35 VDC, typ. 24 VDC for control technology... -
Page 21: Manufacturer And Support
ALLNET® products are manufactured RoHs compliant (RoHS = Restriction of the use of certain hazardous substances). 4.4.3 CE identification The ADQ-51 bears the CE marking. This device complies with the requirements of the EU Directive 2004/108/EC, Directive on Electromagnetic Compatibility and Mutual Recognition of Conformity. Conformity with the above directive is confirmed by the CE mark on the device. -
Page 22: Warranty
Annex Manual ADQ-51 Rev. 1.0 4.4.4 Warranty Within the warranty period, we will eliminate manufacturing and material defects free of charge. You will find the warranty conditions valid for your country on the homepage of your distributor. If you have any questions or problems concerning the application, you can reach us during our normal opening hours at the following telephone number +49 (0)89 894 222 - 74 or by e-mail: support@alldaq.com. - Page 23 Manual ADQ-51 Rev. 1.0 Annex Annex...
- Page 24 ® ALLNET GmbH Computersysteme Division ALLDAQ Maistrasse 2 D-82110 Germering E-Mail: support@alldaq.com Phone: +49 (0)89 894 222 74 Fax: +49 (0)89 894 222 33 Internet: www.alldaq.com...
