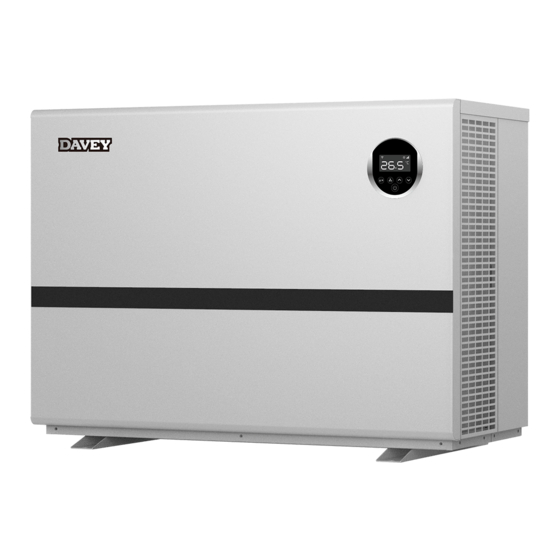

- Page 1 Pool Heat Pump Installation and Operating Instructions Please pass on these instructions to the operator of this equipment.
-
Page 2: Table Of Contents
Table of Contents: 1. FOREWARD ..............................3 2. SAFETY PRECAUTIONS ..........................3 2.1 Warning ..............................3 2.2 Attention ..............................3 2.3 Safety ..............................4 3. ABOUT YOUR HEAT PUMP ......................... 4 3.1 Transportation ............................4 3.2 Accessories ............................. 4 3.3 Features ..............................5 3.4 Operating range ............................ -
Page 3: Foreward
1. FOREWARD The Davey heat pump uses eco-friendly R32 gas and step-less DC inverter technology which allows heat to be extracted from the surrounding air more efficiently. This heat is transferred to the pool water by a twisted titanium heat exchanger. This method generates substantial energy savings compared to: a conventional electric resistance heater, and natural, or propane gas pool heaters. -
Page 4: Safety
e. Set proper temperature in order to get a comfortable water temperature to avoid overheating or overcooling. f. In order to optimize the heating effect, please install heat preservation insulation on pipes between swimming pool and the heat pump, and please use a recommended cover on the swimming pool. g. -
Page 5: Features
15°C – 25°C. During installation and operation of the Davey heat pump, its important to ensure that the flow rate in set to the advised water flow rate in section 3.6 and that the pressure does not exceed 500kPa. -
Page 6: Technical Parameter
3.6 Technical parameter MODEL DHP90 DHP130 DHP170 DHP210 DHP280 DHP3503 PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity(kW) 17.5 35.2 COP range 14.0~7.2 14.5~7.0 15.6~7.0 14.8~7.1 16.0~7.2 15.5~7.0 Average COP at 50% speed 10.5 10.5 11.1 10.5 PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% Heating capacity(kW) 12.5... -
Page 7: Installation Guidance
To get the best results from your Davey heat pump, its location is critical. The Davey heat pump takes hot air from its surroundings and transfers this heat through its heat exchanger, to the pool water. - Page 8 1) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough and antirust treated; 2) Please ensure 50cm of clearance around each side of the Davey heat pump or the efficiency of the heat pump will be reduced;...
-
Page 9: Wiring
6) Any pipework installation should be kept to a minimum and protected from physical damage. 7) If the Davey heat pump will be in operation over winter, Davey recommends it is installed on the main filtration system to avoid heat loss through the solar heating system. -
Page 10: Operation Guidance
5. OPERATION GUIDANCE 5.1 Key Function SYMBOL HEATING ONLY MODELS 1. Power On/Off 2. Wi-Fi setting Lock/Unlock screen 1. Boost 2. Silence Temperature Setting From 18 – 40°C ATTENTION: i. The controller has power-down memory function. ii. The buttons will turn dark when it’s locked. 5.2 Operation Instruction a. -
Page 11: Testing
If a gas leak occurs, cease operation and contact a Davey service centre. 6.3 Trial a. Your water circulation pump must be running before your Davey heat pump starts and needs to continue running until after your heat pump stops. This will avoid damage to your heat pump. -
Page 12: Maintenance
Please check for any water leaks before starting your Davey heat pump. c. For protection, your Davey heat pump is equipped with a time lag starting function, the fan will run 1 minute earlier than the compressor on start-up, and it will stop running 1 minute later than the compressor when your heat pump is stopped. -
Page 13: Trouble Shooting For Common Faults
Sit on the Davey heat pump, or place a heavy object on it; Put objects in, or on the protective grid. The Davey heat pump requires professional maintenance and repair. Any “do-it-yourself” repairs on a unit within warranty period, may void the remainder of the manufacturer’s warranty. Maintenance, or adjustments other than those recommended in this owner’s manual should not be attempted. - Page 14 If above solutions don’t work, please contact your installer or Davey service agent with detailed information and your model number. Don’t try to repair it yourself. NOTE: If the following conditions happen, please stop the machine immediately, and cut off the power supply immediately, then contact your dealer or Davey: 1.
- Page 15 4. Refrigerant charging procedure In addition to conventional charging procedures, the following requirements shall be followed; Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines should be as short as possible to minimise the amount of refrigerant contained in them. Cylinders should be kept upright.
-
Page 16: Water Pump Control Connection
I. Water pump control connection connection The default setting is P2. To change these parameters please contact your nearest Davey dealer. Water pump: 230V voltage, Water pump: 230V voltage, ≤500W capacity Breaker/fuse... - Page 17 Water pump: 230V voltage, Water pump: 230V voltage, ＞500W capacity Breaker/fuse Breaker/fuse Powercord (Customer prepare) (Customer prepare) (not supplied) Earthing Power Supply 230V~/50Hz Remote control Customer remote switch for use if no control switch wi-fi connection connector Breaker/fuse Water Pump (Customer prepare) (Customer prepare) (not supplied)
- Page 19 10. Wi-Fi OPERATION Wi-Fi operation InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration. Android please download from iPhone please download from APP Download Account-registration 1. Register by mobile or email.
- Page 20 b. Register through third-party application Create Family Please set family name and choose location of device.
- Page 21 APP Pairing a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is on. 2. Click “Add Device”, and then follow the instructions to pair device.
- Page 22 b. With Wi-Fi 1. Please make sure you are connected to Wi-Fi. 2. Press " " for 3 seconds to unlock the screen. Press “ ” for 3 seconds and release. After hearing “Beep”, enter Wi-Fi password in app. During connection, “ ”...
- Page 23 Operation 1. For heat pump with Heating function only: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature temperature Query Select Boost/ Silence Mode Timer On/Off 2. For heat pump with Heating&Cooling function: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting...
-
Page 24: Spare Parts
Share Devices to Your Family Members After pairing, if your family members also want to control the device, please let your family members register “InverGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice. - Page 25 Power fi lter board DHP130 403821 Power fi lter board DHP210 16309 Power Filter Board DHP280 16310 Power Filter Board DHP3503 403765 Power fi lter board DHP90 403767 Electronic expansion valve 403768 4-way valve 403769 Water fl ow switch 403770...
- Page 26 NOTES...
- Page 28 To the fullest extent permitted by law Davey disclaims any warranties regarding the accuracy, completeness or reliability of App data. Davey is not responsible for any direct or indirect loss, damage or costs to the User arising from its reliance on internet connectivity.
