Torpedo7 Estate Instructions

Select a dry, level area and clear the ground of any
sharp or dangerous objects.
Where possible select a sheltered camp site protected
from the wind, and one that will not allow water to
pond under the tent floor in the event of rain.
Lay out the tent with doors facing in the desired
direction. Open all doors and windows in the tent to
allow air inside when erecting the tent.
WARNING - Failing to open doors and windows will
put excessive stress on the fabric and seams as the
tent is raised and may cause damage.

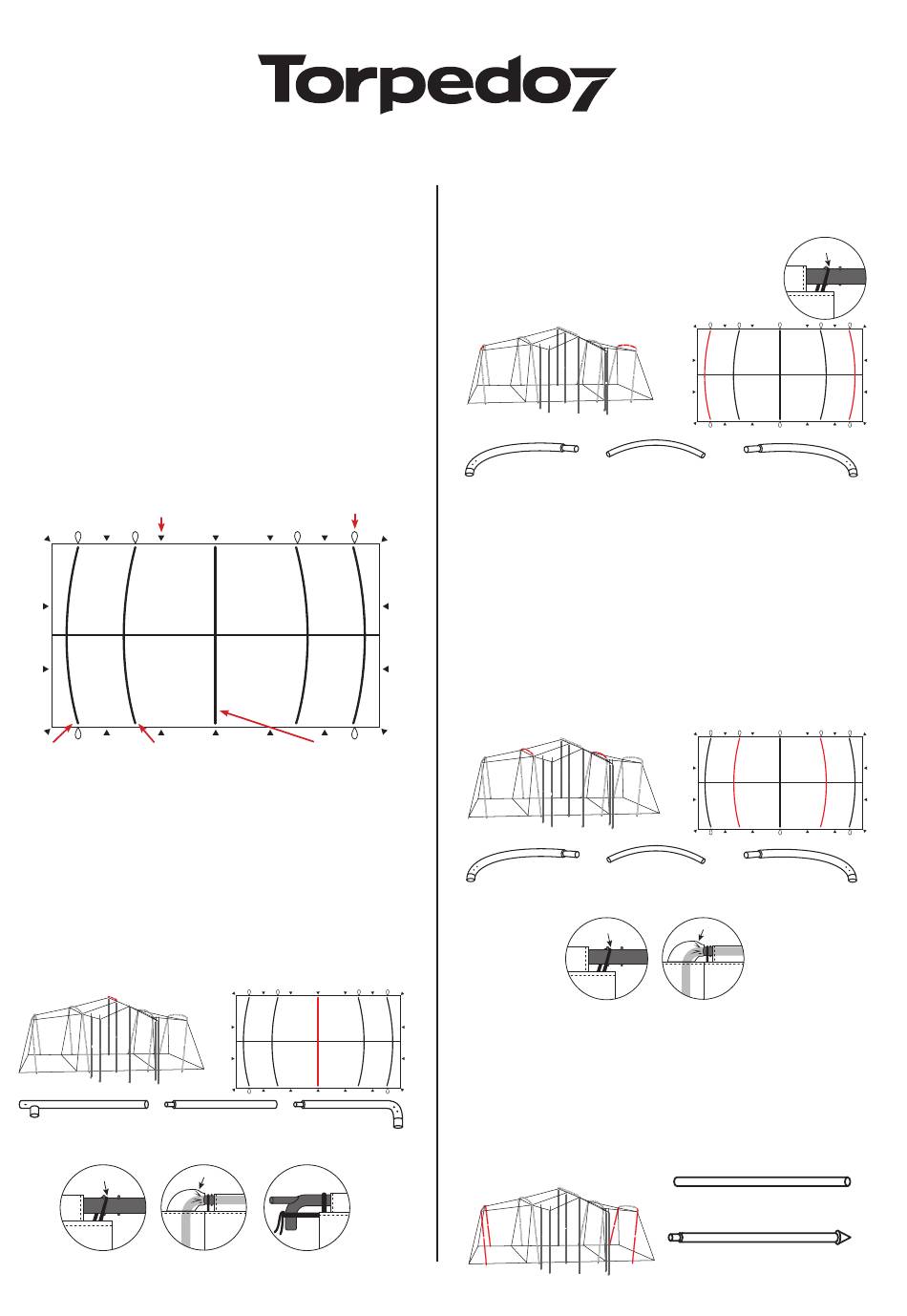

• Peg out the four corners of the tent, ensuring that
the tent is pulled out firm and square (be careful
not to make it too taut). Peg out the remaining peg
points inserting pegs on a 45 degree angle.
Peg points
Outside ridge pole sleeve Inside ridge pole sleeve
• Remove all of the frame parts from the bag and lay
out as per the frame part diagram. Join appropriate
tent pole sections together ensuring each section is
firmly secured into the next.
• Install the centre ridge pole. Select the frame
(parts #42, #43 and #44) for the centre ridge pole
and insert through the centre ridge pole sleeve on
the tent ensuring the front pole #44 is correctly fitted
through the webbing loop and pole sock, and the
the rear pole #42 is fitted through the webbing strap
attached to the tent.
PART
63C
GUSSET
SOCK
Part #44 Part #43
Centre Ridge Pole FRONT ROOF SPREADER POLE
Webbing Loop

Estate Tent Instructions

Webbing loops
Centre ridge pole sleeve
Part #42
ROOF END POLE
Pole Sock
• Install the outside curved ridge poles, x2. Select
the frame (parts #32, #33 and #34) for the outside
curved ridge poles and insert through
the outside ridge pole sleeves on the
roof of the tent, ensuring the end poles
are correctly fitted through the webbing
loops attached to the tent.
Part #34 Part #33
ROOF END ROOF SPREADER
POLE OUTSIDE POLE OUTSIDE
WARNING - Do not force poles through the sleeves
as this may damage the sleeve. Check to ensure
the pole does not snag when sliding it through the
sleeve.
• Install the inside curved ridge poles, x2. Select the
frame (parts #35, #36 and #37) for the inside curved
ridge poles and insert through the inside ridge pole
sleeves on the roof of the tent, ensuring the front
pole #37 is correctly fitted through the webbing loop
and pole sock and the rear pole #35 is fitted through
the webbing strap attached to the tent.
Part #37 Part #36
ROOF END ROOF SPREADER
POLE INSIDE POLE INSIDE
Webbing Loop
• WARNING - Do not force poles through the
sleeves as this may damage the sleeve. Check
to ensure the pole does not snag when sliding it
through the sleeve.
• Install the outside support legs. Select the 4
assembled outside support legs, (4 x part #30 and
4 x part #31) and insert these into the outside ridge
poles already fitted to the tent.
Webbing Loop
Part #32
ROOF END
POLE OUTSIDE
Part #35
ROOF END
POLE INSIDE
Pole Sock
Part #30
OUTSIDE SUPPORT LEG TOP
Part #31
OUTSIDE SUPPORT LEG BOTTOM
