Long Range Twisted Pair Transmission System – Active Series
ITEM NO.: SP-A111AV (SP-A111AVT + SP-A111AVR), SP-A111VA (SP-A111VT +
SP-A111VHA), SP-A414VR
Features:
Transmit a full motion color or monochrome video signal and data signal (RS485), audio
(SP-A111AV). Color range 1500 meters.
Video color burst and luminance adjustments at SP-A111VT transmitter.
Easy setting with 2 adjustments for color gain and brightness at SP-A111VR receiver.
Three position range switch for gain select on SP-A111AVT transmitter.
Five position distance range switch on Receiver SP-A111AVR.
System is integrated with alarm sensor (PIR, Magnetic, etc.) or data. (Pan, Tilt, Zoom).
Built in transient protection and ground lifting, damaging voltage spike problems are eliminated.
Red LED: Power on / off.
SP-A414VR: 4 channel active receiver hub, built in 4 pieces SP-A111VR.
Up to multi pieces SP-A111AVT, SP-111VT transmitter can work with 4 channel Hub SP-A414VR
or 1U rack mounting SP-A008A/SP-A008H, SP-A016A/SP-A016H receiver panel.

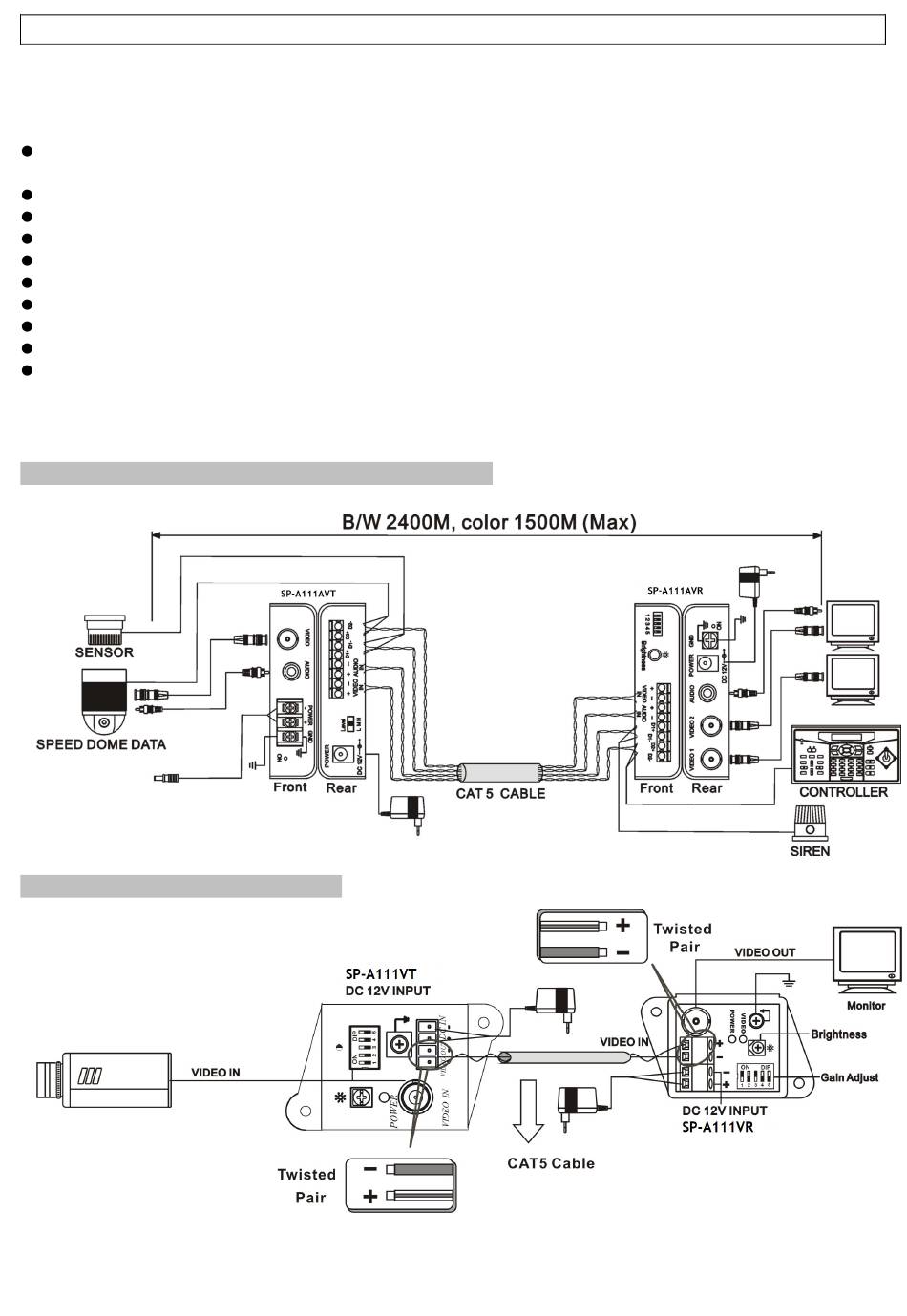

Installation View:
SP-A111AV (SP-A111V): SP-A111AVT, SP-A111AVR
SP-A111V: SP-A111VT, SP-A111VR
4 channel Active Receiver Hub
1
Advertisement
Table of Contents
Summary of Contents for Finest Security Systems Active Series
- Page 1 Long Range Twisted Pair Transmission System – Active Series ITEM NO.: SP-A111AV (SP-A111AVT + SP-A111AVR), SP-A111VA (SP-A111VT + SP-A111VHA), SP-A414VR 4 channel Active Receiver Hub Features: Transmit a full motion color or monochrome video signal and data signal (RS485), audio (SP-A111AV).
- Page 2 SP-A414VR Use SP-414V 4 channel passive video transceiver as transmitter to work with Active SP-A414VR receiver, transmission range 1Km. Use SP-A111VT, SP-A111AVT transmitter to work with SP-A414VR, transmission range 1500 meters at color, 2400 meters at B/W. Troubleshooting: All transmission distances mentioned above are without connecting image processor (e.g.
- Page 3 SP-A111VT SP-A111VR SP-A414VR Front View Rear View Option: To protect high value camera and CCTV image processor/monitoring equipment destroyed from high voltage surges from nearby lightning strikes, the long-range twisted pair cable go through outdoors. To add surge protection SP003-SP006 device on the back of camera and front of CCTV image processor/monitoring equipments.
- Page 4 Specification: ITEM NO. SP-A111AVT SP-A111VT 1 Vp-p 7 5 Ohms (BNC Connector) VIDEO INPUT ， POWER CONSUMPTION 40mA(max) POWER SUPPLY DC 12V 500mA Press 1: 0~300M, Press 2 300~600M , Press 3 COLOR BURST ADJUSTING 600~900M, Press 4 900~1200M , Press 5 1200~1500M VIDEO GAIN ADJUSTING 3 Level dip switch (L/M/H)
