FSFC0035 / JA007

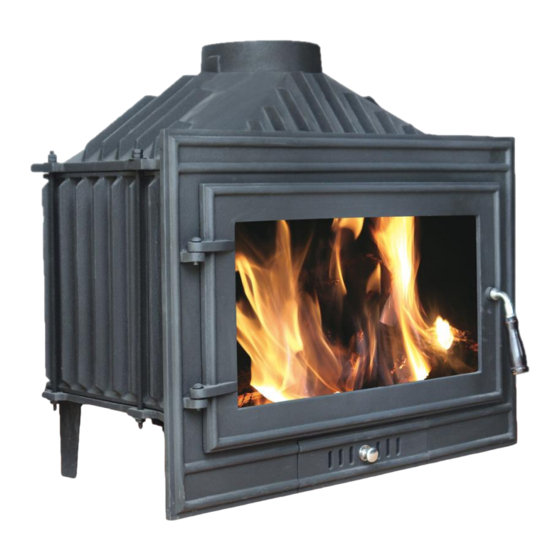

ANDIRON 14kW BUILT-IN CAST IRON
FIREPLACE
ASSEMBLY & OPERATING INSTRUCTIONS
This instructions manual contains important information necessary
for the proper assembly and safe use of the appliance.
Read these instructions and warnings carefully so as to familiarize
yourself with the appliance before operating the appliance.
Keep this manual for future reference.
1
Questions, problems, missing parts?
Before returning to your retailer, call our
Customer Service Department at Tel: (010)
001 6342, 8 a.m. - 5 p.m., CAT, Monday-
Thursday and Friday till 3 p.m. Or send us
an E-mail at service@megagroup.co.za or
visit us online at: www.megamaster.co.za
