DT02

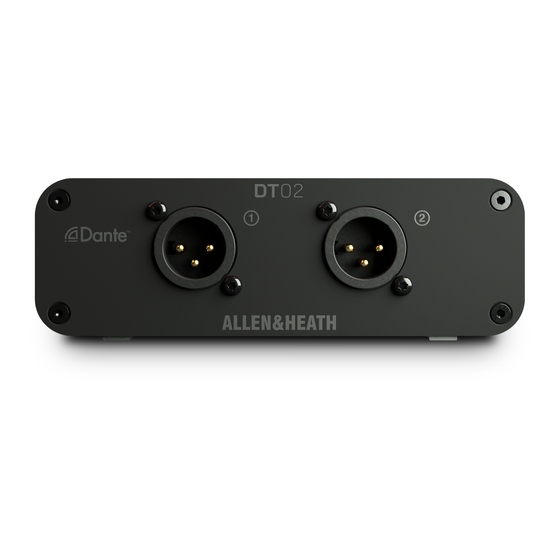

The DT02 is a portable, PoE enabled, rugged Dante
I/O unit. It can be used to complement Allen & Heath
digital mixing systems, or any other system on a
Dante network. It provides 2 balanced line-level
outputs via a pair of XLR connectors. It connects to
the Dante network over a single Cat cable.
The DT02 can be ordered in either of two versions:
-
DT02 - standard version with rubber feet
and 12V power supply.
-
DT02-M - version for fixed installation
with brackets for surface mounting and
no external power supply.
Software
Visit the Audinate website to learn more about
Dante, and download Dante Controller to route
audio and configure devices on a Dante network:
https://www.audinate.com/
Specification
XLR Outputs
Output Impedance
Nominal Output
Maximum Output
Level
Dante
Power and
Temperature
DC Input
Power Consumption
Operating
Temperature Range
PoE Requirements
Dimensions and
Weight
DT02
DT02 Getting Started Guide
Balanced, relay protected
<75Ω
+4dBu = 0dB meter reading
+22dBu
48kHz/96kHz
+12V DC 1.25A
10W max
0
C to 40
C (32
F to 104
°
°
°
802.3af 15W
Width x Depth x Height x Weight
130 x 131 x 43 mm, 0.5kg
(5.1" x 5.2" x 1.7", 1lbs)
Surface mounting

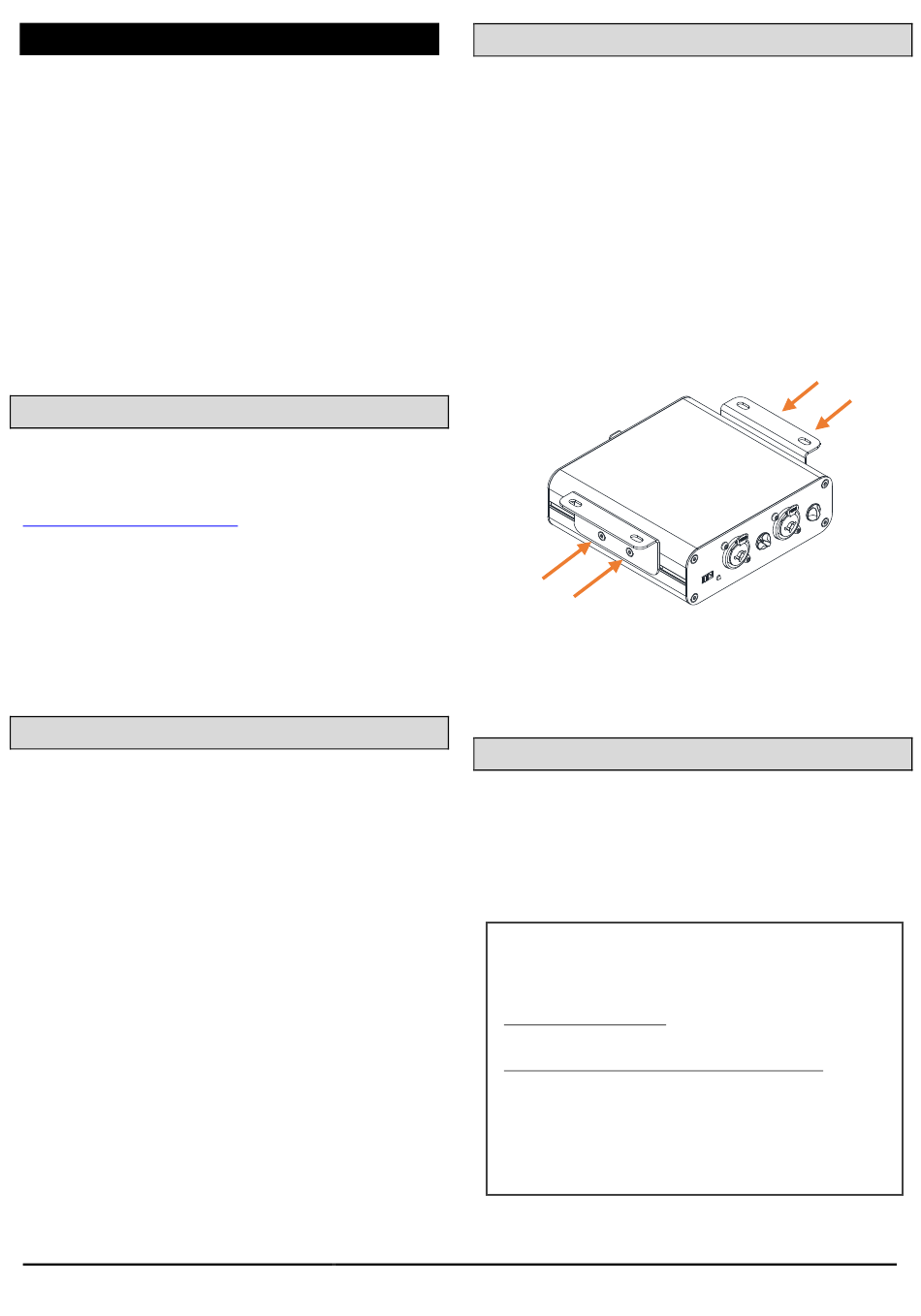

The surface mounting ears allow the device to be
mounted on top or under a surface, desktop or
podium, or vertically on a wall or partition. They can
be installed to face either the top or bottom of the
unit.
The DT02-M comes with surface mounting ears and
preassembled insert bars. Position the ears centrally
on each side of the unit, aligned with the threaded
holes on the insert bars, facing either up or down as
required, and secure them using the 4x M3x6mm
screws provided in the package.
For surface mounting of a standard DT02, the
optional surface mounting kit DT-SMK is available.
Rack mounting
Up to two units can be rack-mounted in a single 1U
rack space with the optional rack kit DT-RK19.
Read the Safety Instructions Sheet included with the product
and the information printed on the panel before operating.
A limited one year manufacturer's warranty applies to this
product, the conditions of which can be found at:
www.allen-heath.com/legal
F)
°
Register your product with Allen & Heath online at:
http://www.allen-heath.com/support/register-product/
Copyright © 2020 Allen & Heath. All rights reserved.
