Summary of Contents for Hidro-Water KOBE WS1CI UF

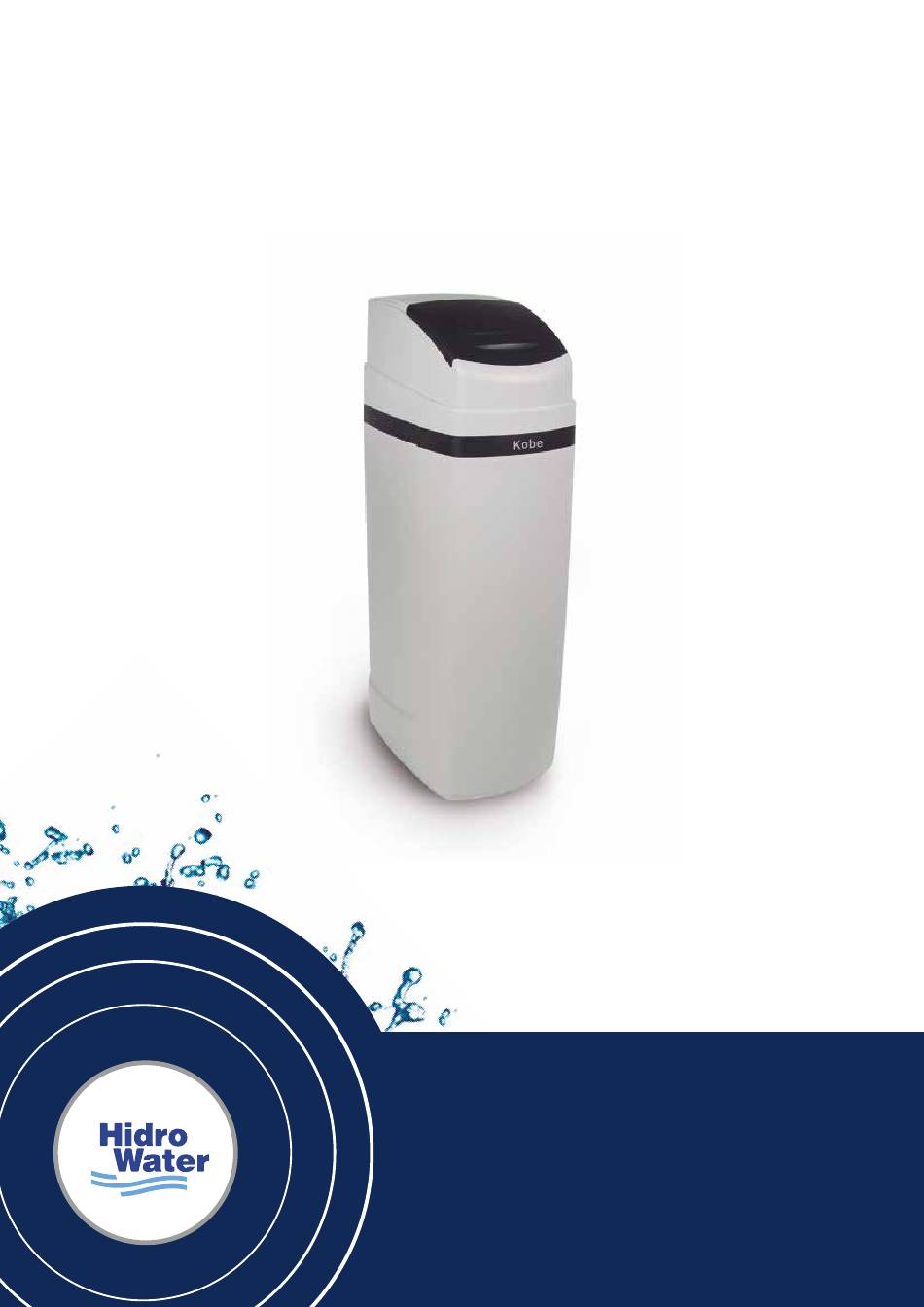

- Page 1 CLACK SOFTENER KOBE WATER CONDITIONING SYSTEM USER / INSTALLER’S MANUAL KOBE WS1CI UF MA-EN-DESCALCIFICADOR KOBE (USR) UF-3004-XX JD18V01...
-
Page 2: Table Of Contents
INDEX 6.4.- Programming ......................16 6.4.1 Inlet hardness ...................16 6.4.2 Outlet hardness ..................16 1.- INTRODUCTION ....................4 6.4.3 Forced regeneration ................16 1.1.- Operating information - Theory ................4 6.4.4 Regeneration time ...................16 1.1.1 Service phase ....................4 7.- INSTALLATION CHECK LIST .................17 1.1.2 Regeneration phase ...................4 8.- START UP ......................17 2.- TECHNICAL DATA ....................5 8.1.- Bleeding air ......................17... -
Page 3: Introduction
Just like any device, your new Kobe has optimal performance within its Operating Range: Hidro-Water S.L. wants to thank you for purchasing your new Kobe system. We hope you enjoy the benefits of having softened water. Among other things, this means: 2.1.- Operating pressure... -
Page 4: Dimensions
3.- INSTALLATION REQUIREMENTS 2.6.- Dimensions • Installation must be carried out by a qualified technician. • Make sure the main water supply is turned off before starting the installation. • Always install an original and/or external bypass system. • An uninterruptible power outlet is necessary 230V - 50Hz and a drain near the system. -
Page 5: Diagram
5.3.- Connecting the system to the water intake The company HIDRO-WATER, S.L.U. will not be held responsible if the installer or user fails to obey the guidance found in this manual • This system is designed to be connected to 1” tubing. -
Page 6: Hydraulic Connections Level
5.3.2 Hydraulic connections level Installing Kobe’s original bypass: Among the accessories that come with the system, you can find the Kobe system’s original bypass and the system’s inlet and outlet connections (items 5 and 3 on the accessories list) which are located in the salt tank as mentioned in the unpacking the system section (5.1). System installation is very straightforward and doesn’t require any tools. -
Page 7: Connecting The Inlet And Outlet Line
17x13 transparent PVC flexible tube). prefilter) from the water installation if necessary. Hidro-Water recommends the use of female-female or female-male Do not connect the overflow line to the control unit’s drainage line. The flexible hoses depending on what is required for the current installation. -
Page 8: Programming - User Level / Installer
The transformer comes pre-installed from the factory. Check that it is correctly connected to 6.2.- Setting the time its connector as shown in the images and plug it into the mains. SET TIME Press The hour will flash CLOCK Set the hour with the arrows NEXT Press The minutes will flash... -
Page 9: Programming
Programming carried out 6.4.2 Outlet hardness 8.- START UP Hidro-Water recommends leaving a residual hardness of between 80 and 100 PPM (mg/l CaCO3). Once the valve has been programmed, it’s time to start up the system. 8.1.- Bleeding air Adjust residual hardness using... -
Page 10: Fill Verification
8.3.- Suction verification Once all of the air has been removed, completely open the softener’s inlet valve to rinse the resins (during the first 8.3.1 Suction rinse, the water may appear yellowish) wait until the water Press REGEN for 5 seconds. The softener will TIME REMAINNING runs clean, without bubbles and is transparent. -
Page 11: Residual Hardness Setting
If not, make sure that the flow meter’s connector is well connected in its place. To do so, Hidro-Water recommends using special refined and compact salt designed for water If it is and still doesn’t work, take apart the turbine and see if it spins freely and not being obstructed by any foreign body. -
Page 12: Cleaning
If the system is sat for a month or longer without use, it must be disinfected using the product PQ-1602-10. Consult CONGRATULATIONS! YOUR SYSTEM IS ALREADY FULLY INSTALLED AND RUNNING our Technical Department at Hidro-Water S.L.U. MA-EN-DESCALCIFICADOR KOBE (USR) UF-3004-XX JD18V01... -
Page 13: Problems, Causes And Possible Solutions
12.2.- Problems, causes and possible solutions PROBLEMA PROBABLE CAUSE SOLUTION Low water pressure. Increase pressure with a pump. PROBLEM PROBABLE CAUSE SOLUTION Suction and / or drainage The transformer isn’t plugged in. Plug in the transformer Take apart and clean ⓿ line obstructed. -
Page 14: Parts & Accessories
13.- PARTS & ACCESSORIES 13.1.- Electromechanics 13.2.- Hydraulic body CODE DESCRIPTION CODE DESCRIPTION AV-3020-14 1” CLACK gaskets and separators set AV-3020-02 CLACK 1” front casing with buttons AV-3020-16 1” CLACK shaft-piston gear assembly AV-3020-04 1” CLACK motor AV-3020-18 1” CLACK programming rear bracket AV-3020-22 1”... -
Page 15: Injector Set
13.3.- Injector set 13.4.- Suction set DESCRIPTION DESCRIPTION CODE CODE AV-3020-48 1” CLACK refill plug AV-3020-36 1” CLACK injector cover AV-3020-50 Elbow clip AV-3020-52 3/8” CLACK tube support AV-3020-38 135 O-ring cover AV-3020-54 3/8” suction elbow nut AV-3020-40 1” CLACK injector filter AV-3020-56 3/8”... -
Page 16: Drainage Set
13.5.- Drainage set 13.6.- Flowmeter and residual mixing valve DESCRIPTION DESCRIPTION CODE CODE AV-3020-50 Elbow clip AV-3020-78 1” QC drainage nut AV-3020-25 1” CLACK 5/8 tube support AV-3020-24 ¾” drainage elbow nut AV-3020-80 Compete counter (Includes no. 3 & 4) AV-3020-66 1”... - Page 17 13.7.- System DESCRIPTION CODE BP-0803-12 10X35 WOUND BOTTLE Kobe 35 BP-0802-09 8X35 WOUND BOTTLE Kobe 22 BP-0802-25 10X18 WOUND BOTTLE Kobe 14 AV-0202-12 35” 100CM RESIN TUBE AND NOZZLE AV-0202-16 1”268 EO1320 UPPER NOZZLE VA-3002-06 CLACK WS1CI UF VOL VALVE MD-3200-06 CLACK UPPER HOUSING BODY MD-3200-04...
-
Page 18: Common Accessories
AV-3002-03 1” CLACK BYPASS VERTICAL ADAPTER manufacturer are excluded from our warranty. Hidro-Water S.L.U.’s responsibility is to exclusively repair or replace defective parts, not paying compensation or other expenses. AV-3002-02 1” CLACK BYPASS... - Page 19 Hidro Water, S.L.U. Carretera Chirivella-Aldaya, 48 46960 Aldaya · Valencia, Spain Tel: (+34) 961 98 62 30 hidrowater@hidro-water.com www.hidro-water.com DISTRIBUTOR INSTALLER Sale date Instalation date Stamp: Stamp: MA-EN-DESCALCIFICADOR KOBE (USR) UF-3004-XX JD18V01...
Need help?
Do you have a question about the KOBE WS1CI UF and is the answer not in the manual?
Questions and answers
My water is very hard. I have the setting on 100 at the moment. Should I go up, to say 120-160 or down?
The residual water hardness setting for the Hidro-Water KOBE WS1CI UF should be between 8 and 10 French degrees (°fH), with a recommended setting of 90 ppm, which equals 9 °fH.
