OBO Bettermann PKV-C1000ST100 Mounting Instructions

A
P P V V -pr -pr otection otection
Uoc max: 1000V DC Uoc max: 1000V DC
1
P P V V -pr -pr otection otection
Uoc max: 1000V DC Uoc max: 1000V DC 2
OUT IN
WR1 String 1
A
WR1
String 1
B
WR2 String 2
B
P PV V -pr -pr otection otection P P V V -pr -pr otection otection
Uoc max: 1000V DC Uoc max: 1000V DC Uoc max: 1000V DC Uoc max: 1000V DC
A
IN OUT
B
IN 1 OUT 1 IN 2 OUT 2
IN 1 OUT 1 IN 2 OUT 2
green ok
red replace
replace
Technische Daten/Technical data/
Teknisk data
Typ /Type/Typ PKV-C1000ST100 PKV-C1000ST110
Artikel-Nr./Article no./Artikelnr 5088501 5088503
U 1000 V
C DC
LPZ 1 -> 2
U ≤ 4,0 kV
P
I 20 kA
n
I 40 kA
max
°C -40 °C - + 80°C
IP-Schutzart Gehäuse/
IP protection rating for housing/ 66
IP klass kapsling
Trennschalter/Switch-disconnector/Brytare
U 1000 V
I 20 A
PKV-C1000ST100
PKV-C1000ST110

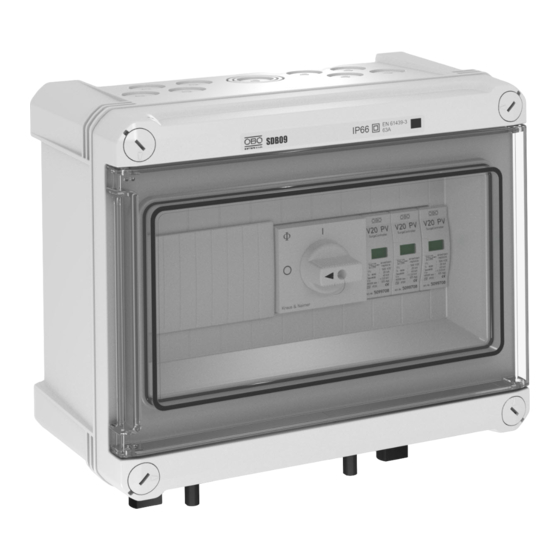

DE PV-Systemlösung mit Trennschalter
Montageanleitung
EN PV system solution with switch-dis-
connector
Mounting instructions
SE PV-kapsling med DC brytare
Monteringsanvisning
