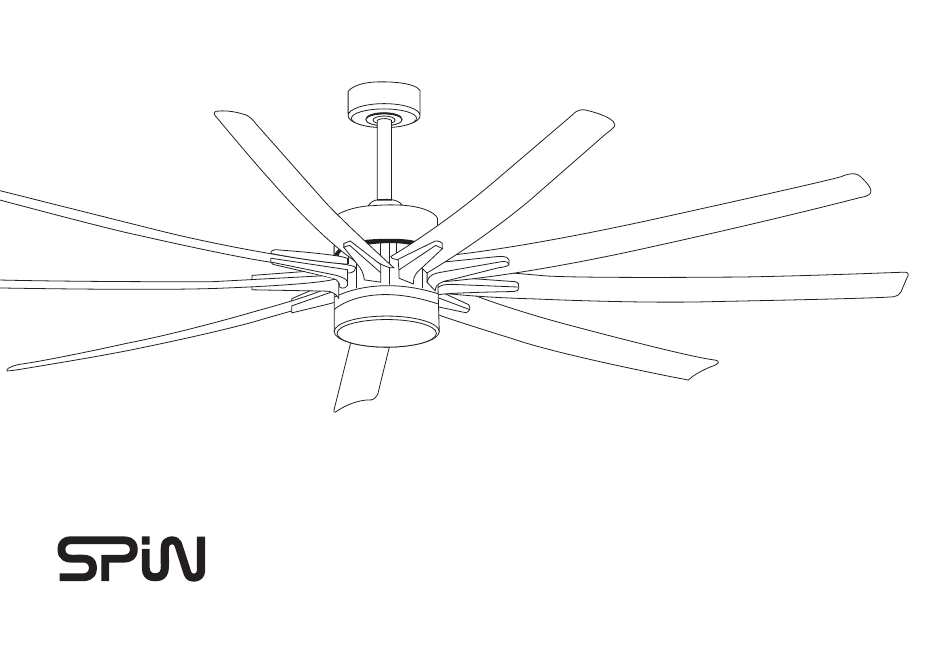

- Page 1 O N I X INSTALLATION MANUAL SP960 | SP972 | SP984 SP933 | SP984AL...
-
Page 2: Post Installation
Hanging the Fan SPIN and its logo are all trademarks of SPIN Pte Ltd and registered in Singapore. The content in this manual is subjected to change without prior notice. All content are accurate and correct at the time of publishing. - Page 3 Ensure the blades are mounted at a height of more than 2.3 meters from the floor when the fan is installed. 13. For extra safety, contact SPIN Customer Care when in doubt with installation and check the fan every year to make sure there are no loose parts.
-
Page 4: Supplied Parts
SUPPLIED PARTS SUPPLIED PARTS INSTALLATION STEPS INSTALLATION STEPS Mounting Bracket 1. MOUNTING BRACKET INSTALLATION Expansion Screw (x4) and “J” Hook (x1) Downrod (Rod Ball, Down Rod, Cross Pin, Cotter Pin) Secure the Mounting Bracket to the concrete ceiling with Ceiling Canopy Expansion Screws x4 (Front &... - Page 5 INSTALLATION STEPS INSTALLATION STEPS INSTALLATION STEPS INSTALLATION STEPS 3. DOWNROD ASSEMBL Y Study the diagram below before you assemble the downrod. Insert the downrod through the ceiling canopy and receiver coupling cover. Direct the electrical wire through the downrod. Align the two holes of the downrod with the two holes on the yoke collar.
-
Page 6: Installing The Blades
INSTALLATION STEPS INSTALLATION STEPS INSTALLATION STEPS INSTALLATION STEPS 5. INSTALLING THE BLADES To assemble the blades, fasten three screws following the diagram as shown: 4. HANGING THE FAN Screws Hang the fan onto the hanger bracket following the illustration below. Insert the downrod into the slot in the mounting bracket, rotate the downrod and align the groove on the rod ball with the groove on the mounting bracket. - Page 7 INSTALLATION STEPS INSTALLATION STEPS WIRING WIRING 6. BASE PLATE / LED LIGHT INSTALLATION YELLOW GREEN GROUND If you are not installing any LED light, you can now attach the base plate to the fan body by locking it in a clockwise direction.
-
Page 8: Remote Control
REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL Pairing of Remote Control Forward / Reverse Function: Press and hold to toggle between each mode. Firstly, ensure the power supply to the ceiling fan is switched off and the remote is not in use. Switch on the power to the ceiling fan, you should hear a “beep”. -
Page 9: Troubleshooting
SPIN CUSTOMER CARE ! W ARNING: Failure to turn off the power supply prior to troubleshooting any electrical wiring may result in serious injury. Should you face any difficulties resolving any problems, please contact our SPIN’s dedicated Customer Care. SPIN Customer Care... - Page 10 NOTES NOTES...
- Page 11 O N I X SPIN Pte Ltd 1 Tampines North Drive 1 #04-15 T-Space S528559 T | 6298 1038 F | 6298 0780 www.spinfans.com.sg...
