- Page 1 ALR5 Automatic Liquid Refiller Quick Start Guide Version 1.1...
- Page 3 Dear user, thank you for choosing XAG products. For safety reasons and the best experience possible, XAG recommends that you read through the Quick Start Guide and Disclaimer in this document before attempting to use the ALR5 Automatic Liquid Refiller.
-
Page 4: List Of Items

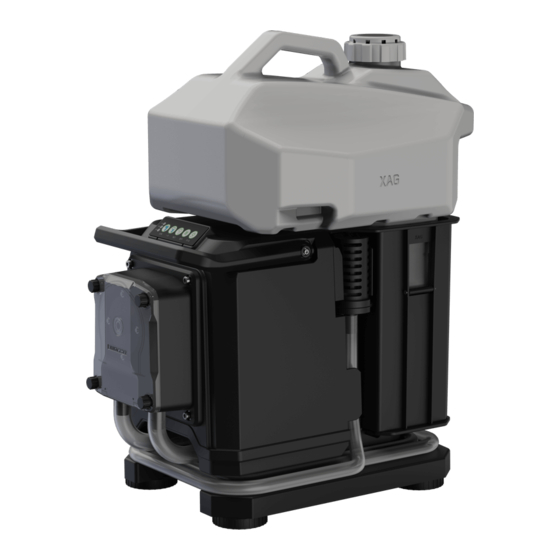

Power Adapter USB To Type-C Cable ×1 × 1 × 1 ALR5 Automatic Liquid Refiller The main structural components of the XALR5 Automatic Liquid Refiller are as follows: Discharge Port Control Panel / Status Indicator Compatible Buckles (Left, Right and Rear) -
Page 5: Control Panel Overview
20sec. Half: HALF Button: Fill the container to HALF capacity Remarks: ALR5 will stop refilling If the Bluetooth connection between the Refiller and the liquid container is lost. Full: FULL Button: Fill the container until FULL capacity Remarks: ALR5 will stop refilling If the Bluetooth connection between the Refiller and the liquid container is lost. - Page 6 Filling Instruction: 1. Insert the Inlet tube into prepared container. 2. Turn ON the ALR5 Refiller. 3. Place the Liquid Container into the Container Slot, the device will issue a buzzer “DI” when the container is inserted correctly. 4. Turn ON the Liquid Container.
- Page 7 XALR5 Status Indicator / Buzzle Description: ALR5 consist of 3 Status Indicator, each indicating a status as follows: Charge Status LED Status Charging RED LIGHT ON Charging completed Charging circuit failure or battery over RED LIGHT discharge FLASHES Battery Level...
- Page 8 Upgrading Refiller Please upgrade the refiller at the firmware center when connected via Bluetooth. The unified Bluetooth name of the refiller is XALR5. How to operate: Step 1: Visit the Firmware Center in the app; Step 2: Enter the refiller upgrade page and click the XALR5 icon; Step 3: Select the Bluetooth name XALR5;...
- Page 9 XALR5 Liquid Tube Replacement: Disassemble 1. Drain the liquid in the tubes and unplug the inlet and outlet tubes of the peristaltic pump. 2. Remove the screws that secure the peristaltic pump cover. 3. Remove the peristaltic pump cover, synchronizer, damaged pump tube, and pagoda- shaped connectors, and separate the connectors from the damaged pump tube.
-
Page 10: Troubleshooting Guide
8. When the power level is too low, the operation is suspended. All indicators flash eight times and the buzzer beeps eight times before refiller turns off automatically. Now, the refiller needs to be charged. Technical Specifications Automatic Liquid Refiller Built-in Battery Model: ALR5 Type: 18650 lithium battery Dimensions: 405*238*315mm Voltage: 24 V Weight: 5 kg Capacity: 112wh Protection grade: IP65 Operating temperature: 0 - 80 °... - Page 11 This does not mean that the contents of this Disclaimer are necessarily invalid. 9. To the extent permitted by law, XAG has the final right to interpret and modify the above terms. XAG has the right to update, modify, or terminate these terms through its official website, the Manual/ Operation Manual”, online APP and other means without prior notice.
- Page 12 All information of this User Manual (including but not limited to any text description, illustrations, photos, methods and processes, etc.) belongs to XAG Co., Ltd. and is protected by copyright law. Without written authorization, no individual or institution is allowed to reproduce, extract, translate, distribute, or otherwise reproduce or quote any content hereof.
