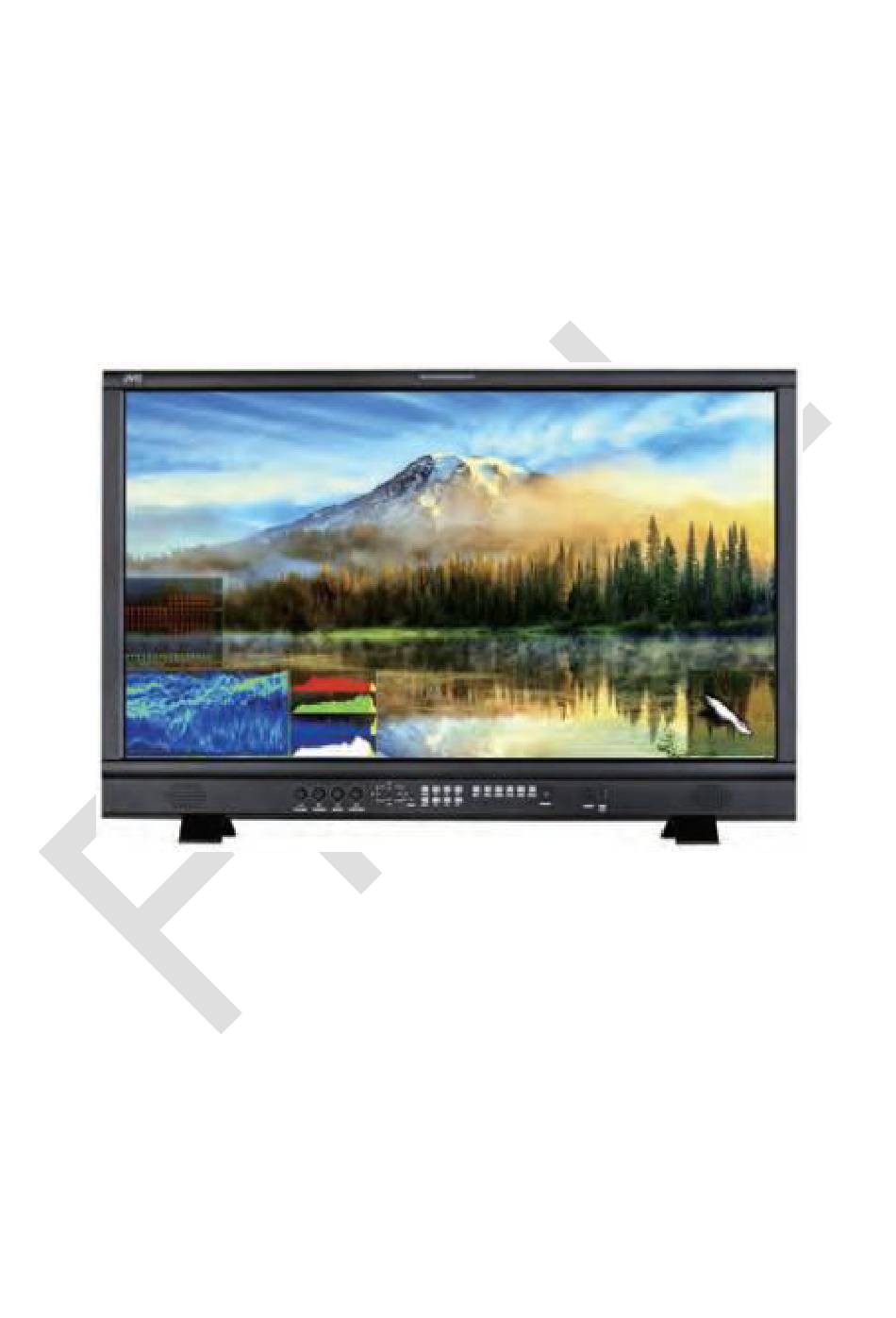

- Page 1 MULTI FORMAT LCD MONITOR DT-U17/24/27/31/31Pro Dismantling manual for use by professional recyclers By: JVCKENWOOD Corporation First edition, May 2021...
-
Page 2: For Your Safety
The Scope for the Manual This manual is for the technicians who know well about the electric and have some experiences of maintenance. All necessary information of dismantling and actual published date are included in this manual. For Your Safety ●... - Page 3 Contents 1. Service tools 2. Parts List 3. Dismantling instruction...
-
Page 4: Service Tools
1. Service tools Name Application Hexagonal wrench (Width across: 2.5 mm) Screw tightening Torque screwdriver(0,16-0,74Nm) Screw tightening... - Page 5 2. Parts List 2.1 DT-U17 Parts List NO. Part NO. Description NO. Part NO. Description 42311008 Rear panel 42320258 Tally lampshade 42310787 Handle 42400121 JVC nameplate 41040024 Speaker 39800521 Front panel 42310942 Speaker holder 43420114 Left and right foam 42320048 Switch cover...
- Page 6 2.2 DT-U24 Parts List NO. Part NO. Description NO. Part NO. Description 42311008 Rear panel 42320258 Tally lampshade 42310787 Handle 42400121 JVC nameplate 42320048 Switch cover 39800522 Front panel 39700495 Key board 43420102 Left and right foam 39700496 Rotary encoder board 1 43420124 Top and lower foam 39700500 USB board 39700243 Tally board...
- Page 7 2.3 DT-U27HB Parts List NO. Part NO. Description NO. Part NO. Description 42311040 Right frame 42320594 Tally lampshade 42311105 Rear panel 42400121 JVC nameplate 42310787 Handle 30700199 Desktop stand 42320048 Switch cover 39800480 Front panel 39700495 Key board 44520116 Left and right foam 39700496 Rotary encoder board 1 44520117 Top and lower foam 39700500 USB board...
- Page 8 2.4 DT-U31 Parts List NO. Part NO. Description NO. Part NO. Description 42310741 Left frame 42320594 Tally lampshade 42311105 Rear panel 42400121 JVC nameplate 42310787 Handle 39800478 Front panel 30700199 Desktop stand 44520109 Left and right foam 44520108 Top and lower foam 39700494 Tally board 42330107 LCD holder pad 42310859 Tally holder...
- Page 9 2.5 DT-U31Pro Parts List NO. Part NO. Description NO. Part NO. Description 44590104 Dust filter 42320594 Tally lampshade 42311105 Rear panel 42400121 JVC nameplate 42310787 Handle 39800479 Front panel 30700199 Desktop stand 44520118 Left and right foam 42320048 Switch cover 44520108 Top and lower foam 39700495 Key board 39700494 Tally board...
- Page 10 3. Disassemble instruction DT-U31 Pro(The disassemble instructions of DT-U17/24/27HB/31/31Pro are basically the same) 3.1 Remove all the 18 screws from the rear panel, see FIG. 3. You don’t need to disassemble battery plate if there’s battery plate installed. FIG. 3 3.2 Open the rear panel, see FIG.
- Page 11 FIG. FIG. 5 FIG. 6 3.4 To disassemble the LCD panel: 1、Remove the connecting line in the ting line in the blue box, see FIG. 5; 2、Remove all the 14 screws from the middle panel, see ews from the middle panel, see FIG. 7. 3、Remove the 18 screws in the red circle, the 18 screws in the red circle, see FIG.
- Page 12 FIG. 8 3.5 DT-U17/24/27HB/31 PCBA FIG. 9...
- Page 13 FIG. 10 FIG. 11...
- Page 14 FIG. 12...
