Polywood NCT37 Assembly Instructions

Model:

NCT37, NCCT37, NCRT37, NCBT37
__(1) Table top
__(4) Leg
__(2) Foot
__(2) Brace
__(1) Umbrella support
__(1) Hardware pack

TOOLS NEEDED

- 3/8" Wrench
- 4mm HEX KEY, ALLEN,
T-HANDLE (INCLUDED)
Qty. Description
A - 1/4-20 X 1-1/2 WAFER SHCS
1
B - 1/4-20 X 2-1/4 WAFER SHCS
4
C - 14 X 2.50 HEX WASHER T-A ALCHM
8
D - .273 X 3 SOCKET WAFER A
6

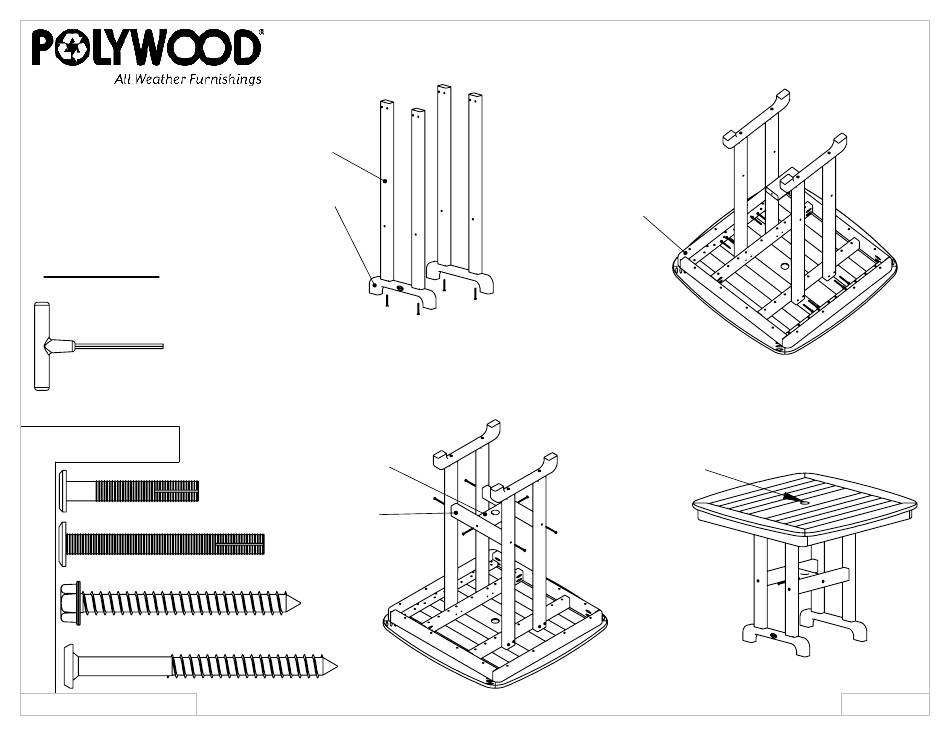

ASSEMBLY INSTRUCTIONS
Step 1
Attach feet to legs using (4) 2¼" Chair bolts.
Leg
Foot
B
Step 3
Attach the leg braces to the leg assemblies using
(4) .27x3" screws
Attach the umbrella support using
(2) .27x3" screws
Umbrella
support
Brace
HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED
Step 2
Lay table top on flat surface.
Attach the leg assemblies to the table frame using
(8) 14x2½" hex screws *Do not tighten until last step
Table top
Step 4
Set table upright and tighten all bolts.
The 1½" Chair bolt secures the umbrella pole.
Removable table plug
included in table.
D
D
C
C
A
